G1009 Ideal for testing springs, foams, and other materials

Click images to enlarge.

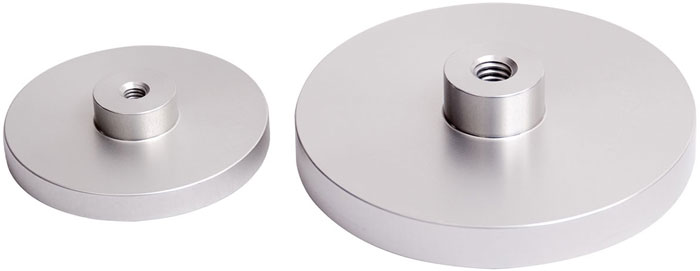

2 Sizes Available
G1009: 2" diameter, 200lb capacity
G1009-1: 3" diameter, 500lb capacity

These aluminum compression plates are ideal for testing springs, foams, and other materials. The plates attach directly to our force gauges and test stands.

Specifications

Model Description
G1009 Compression plate, 2" dia.
Capacity: 200 lb
Size: 2"D x 0.5"H
Weight: 0.08 lb
Thread: #10-32 UNF
G1009-2 Compression plate, 2" dia., Vented
Capacity: 200 lb
Size: 2"D x 0.5"H
Weight: 0.08 lb
Thread: #10-32 UNF
G1009-1 Compression plate, 3" dia.
Capacity: 500 lb
Size: 3"D x 0.75"H
Weight: 0.27 lb
Thread: 5/16-18 UNC
G1009-3 Compression plate, 3" dia. Vented
Capacity: 500 lb
Size: 3"D x 0.75"H
Weight: 0.27 lb
Thread: 5/16-18 UNC

Buy Now

Item Description Price
Compression Plate, 2" dia, #10-32 threads
$55.00
Compression plate, 2” dia. with vents
$80.00
Compression Plate, 3" dia.
$90.00
Compression plate, 3" dia. with vented channels, 5/16-18F
$120.00
