ESL-200 LED Stroboscope

Made in USA
esl-200-LED Stroboscope menu
Click images to enlarge.

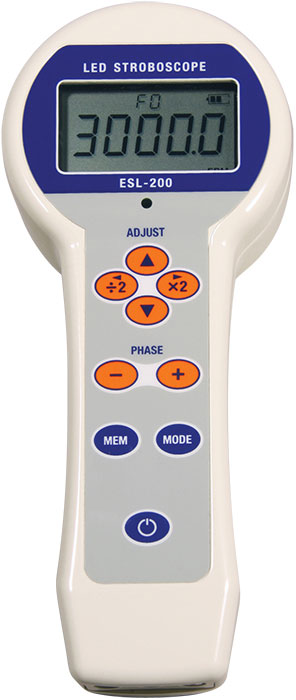

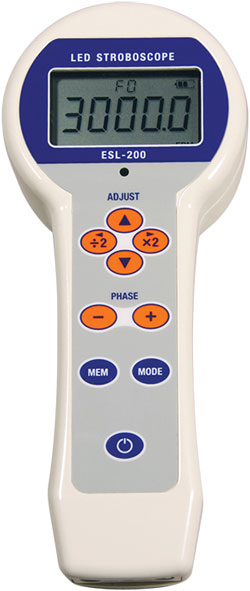

LED stroboscopeThe ESL-200A is a super bright, handheld, fully-featured LED stroboscope in a compact design. The ESL-200A LED stroboscope is designed to measure the speed of rotating or cycling linear motion objects without contact or reflective tape, as well as freeze motion visually. Lifetime LED lights using pulse width modulation, encased in an aluminum housing and powered by a NiMH rechargeable battery, make this pocket strobe extremely durable and capable of high flash rates. The ESL-200 is an ideal inspection strobe for speed, motion and vibration analysis, such as rotating shafts, fans, cams, etc.

LED strobeAdjustable Flash Duration
For most applications standard flash duration works without adjustment. For ultra-high rpm or larger objects rotating with high surface speed, ESL-200A features adjustable flash duration.
For ultra-high-speed applications, objects may move during the brief period of a single flash, resulting in a blurred image. By decreasing flash duration, objects have less time to move and the image will appear sharper.

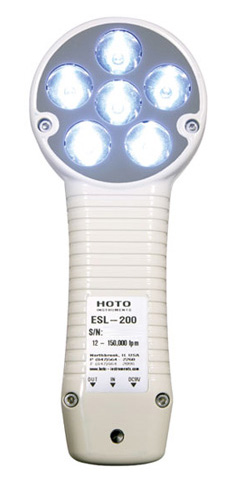

  • High efficiency LED solid-state light source
  • Extended battery life of 10 hours continuous use at 6,000 fpm/rpm
  • Pulse Width Modulation for sharp images at high speed
  • Highly stable drift free operation
  • Auto wide measuring range – up to 150,000 fpm/rpm (over 100,000 display flashes)
  • Push button operation with x2 and ÷2 buttons for easy and precise adjustment
  • 359° Digital phase shift adjustment by 1° increments

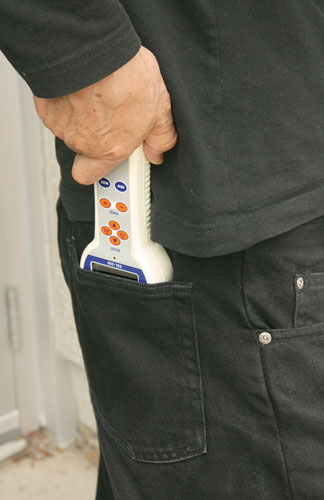

  • Rugged aluminum housing – compact size – weighs only 1.2 lb (540 g)
  • Easy-to-read 5 digit 0.47" (12 mm) high LCD
  • Store up to 19 flash rates in memory for records or quick retests (Restarts at the last flash rate)
  • External trigger input and output
  • Tripod mountable
  • Kit includes stroboscope, AC Adapter/charger, and carrying case.

Optional ET-1 External Trigger Kit

stroboscope sensorThe External Trigger immediately synchronizes the stroboscope with a rotating object. The sensor is aimed at a ferrous target mounted on the drive shaft and triggers the strobe to flash each time the target passes the sensor. ET-1 is complete with sensor, cables and AC adapter. Ferrous target not-included.

Target Material Ferrous material
Target Size 4mm dia. (minimum)
Sensing Distance 3mm (based on 10 mm dia. target)
Max Speed 50 m/min (using 10mm dia. target)
Max Frequency 1 KHz
Sensor size 12 mm dia. x 45 mm; M12 connector
Cable Length 1.8 m (6')
Power AC adapter (up to 240VAC)

Related Products

DS-2000LED LED Stroboscope
Click image for more info
LED Stroboscope - Splashproof
- Produces the brightest flash and sharpest image over the entire range to 300,000 FPM
- Lifetime LEDs do not wear-out or need replacement
NS-600 LED Stroboscope
Click image for more info
LED Stroboscope
PK2X Pocket Stroboscope
Click image for more info
Pocket Stroboscope
- Bright XENON flash intensity (over 1200 Lux) with life of 200 million flashes
ls-5-led stroboscope
Click image for more info
LED Inspection Strobe Light
80 LEDs in 10 x 8 array
- Extremely bright and uniform light distribution for web widths up to 12" (300mm) and wider.

Complete Kit

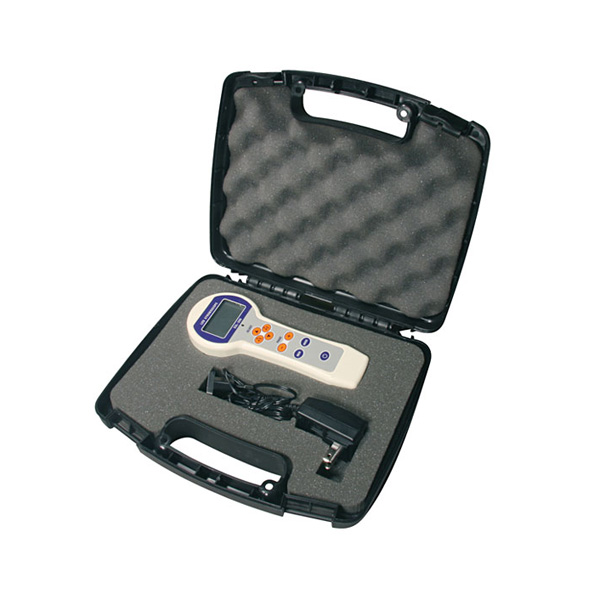

The ESL-200A is supplied in foam-fitted carrying case with LED Stroboscope, Universal AC-Adapter/Charger, instruction manual and NIST-Traceable Calibration Certificate.


Measuring Range6.0 - 150,000 fpm/rpm
Resolution±0.1 fpm/rpm (6.0 to 9999.9 fpm/rpm)
±1 fpm/rpm (10000 to 120000 fpm/rpm)
Accuracy±0.01%, ±1 LSD
Display12mm high, 5digit LCD
Brightness4300 LUX 6,000 FPM, at 8" distance, flash duration F0
PowerNiMH Rechargeable battery with Universal 100-240V adapter
Battery Life6 hours continuous use at 6,000 fpm/rpm, Power save mode 12 hours continuous use at 6,000 fpm/rpm
Operating Temp0 - 45 C
Weight1.2 lb/540g
Housing MaterialAluminum
Tripod Mount1/4-20 UNC on backside
Phase Shiftwith external trigger: 0 - 359 degrees in 1 degree increments
Without external trigger: Image positioning only
Warranty2 years
