IRHD-MACRO Macro IRHD Hardness Tester

Made in Germany

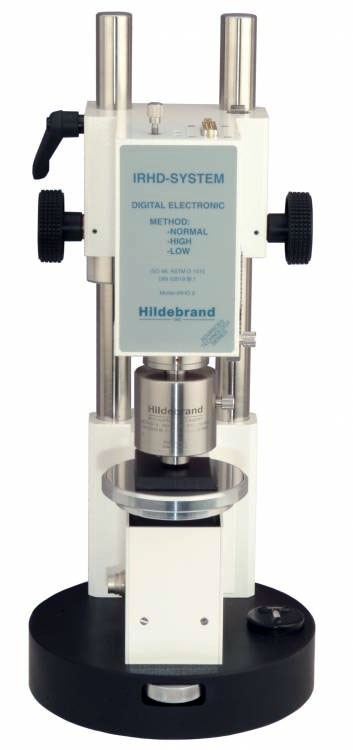

IRHD Macro Hardness Tester
Click images to enlarge.
Test according to ASTM D1415, DIN ISO 48, ISO 48 and DIN 53505 international standards with our new Macro IRHD hardness test system is the professional measurement system for hardness tests on elastomers and plastics with minimal thickness of 6 mm according to IRHD and durometer hardness.

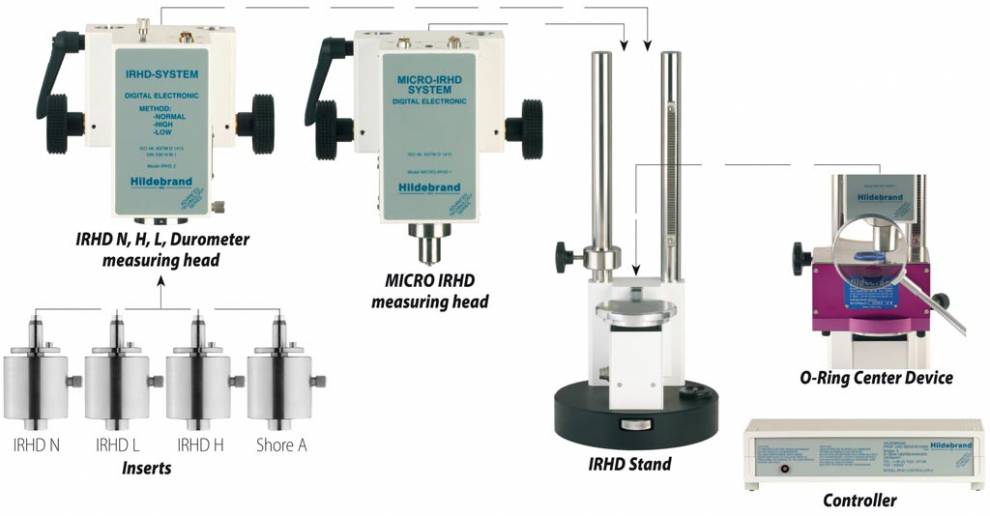

The Macro IRHD conducts hardness measurements with use of an insert that can be inserted without the use of tools. Different inserts are available to fulfill the requirements of your specific application: 1.0 mm, 2.5 mm, 5.0 mm and Durometer Shore A. The electronic identification in each insert ensures the electronic identification. Each insert has its own corresponding software, which starts up automatically. Operator errors are prevented!

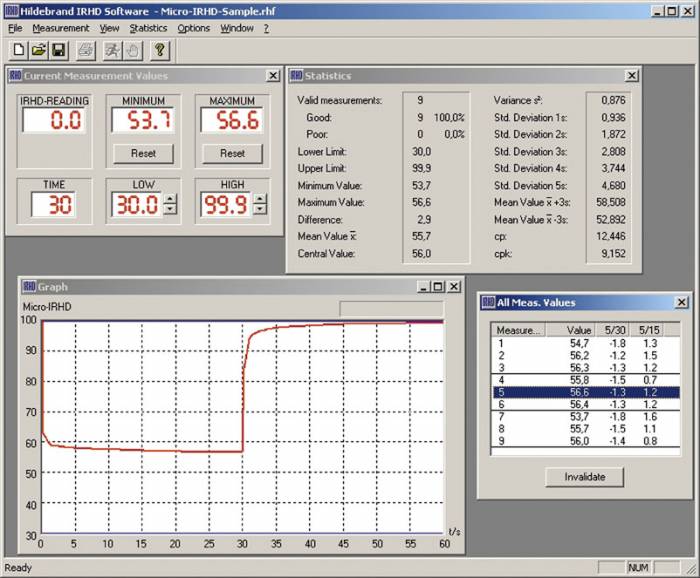

The whole measuring system is controlled by a PC and PC software, which works under Microsoft Windows and provides multiple measurement features, like the output of hardness values, graphs, statistics, test reports and many more. All data can be transferred by the ASCII-output. Due to the modular construction the measuring head can be changed easily.

Available Inserts:

IRHD TYPE N (Normal Hardness) round indenter Ø 2,5 mm
- DIN ISO 48, ISO 48
- ASTM D 1415

IRHD TYPE H (High Hardness Hardness) round indenter Ø 1,0 mm
- DIN ISO 48, ISO 48
- ASTM D 1415

IRHD TYPE L (Low hardness) round indenter Ø 5 mm
- DIN ISO 48, ISO 48
- ASTM D 1415

Shore A
- DIN ISO 7619-1
- ISO 868
- ISO 7619-1
- ASTM D 2240

Features

  • Supplied with calibration certificate
  • Different inserts available: 1 mm / 2.5 mm / 5 mm / Shore A Durometer
  • Measures according to DIN ISO 48, ISO 48, ASMT D 1415 and DIN 53505
  • Automatic operation controlled by Windows software
  • Appropriate for hardness tests on elastomers and plastics thicker than 6 mm IRHD

Related Products

IRHD Micro Hardness Tester
Click image for more info
IRHD Micro Hardness Tester
- For hardness measurements on materials from 1 to 5 mm
Prism Centering Device for IRHD and Durometer Stands
Click image for more info
Prism Centering Device for IRHD and Durometer Stands
IRHD MACRO Test Blocks
Click image for more info
Test block set for verification of IRHD-MACRO Measuring Device
- Includes calibration certificate

Specifications

Resolution0.1 IRHD
StandardsDIN ISO 48, ISO 48, ASTM D 1415
Available inserts1 mm (IRHD H)
2.5 mm (IRHD N)
5 mm (IRHD L)
Durometer A
Dimensions IRHD unit200 mm x 470 mm
Dimensions controller290 mm x 260 mm x 75mm
Weight 17.5 kg
