IRHD-MICRO IRHD Micro Hardness Tester

IRHD Micro Hardness Tester
Click images to enlarge.

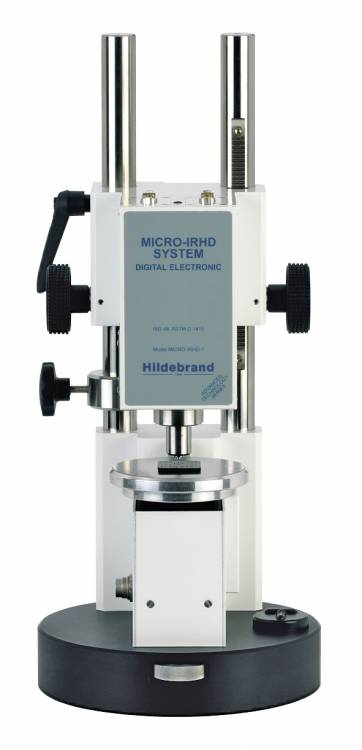

The MICRO IRHD hardness tester measures the hardness of elastomers with thickness from 1 to 5 mm. It is designed to measure according to international standards including DIN ISO 48, ISO 48, ASTM D1415, BS 903: Part A26.

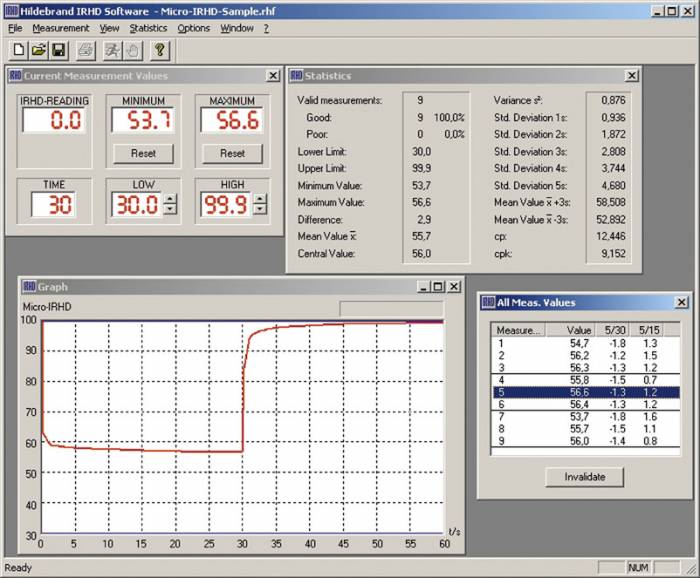

The MICRO IRHD tester is controlled by Windows software. The motorized system automatically raises and lowers two load weights to eliminate operator error while testing. Samples are positioned on the support table. Then the smaller weight is lowered onto the indenter. This position represents 100 MICRO IRHD. The larger weight is then lowered. The penetration of the indenter is digitally measured after 30 seconds and converted into MICRO IRHD UNITS. The MICRO IRHD software monitors and controls the operation of the system. The Windows software displays the hardness value, graph, hysteresis, statistics, test report and more. Data can be output in ASCII format. Data is transmitted from the IRHD Controller, which is connected via the serial port of the computer.

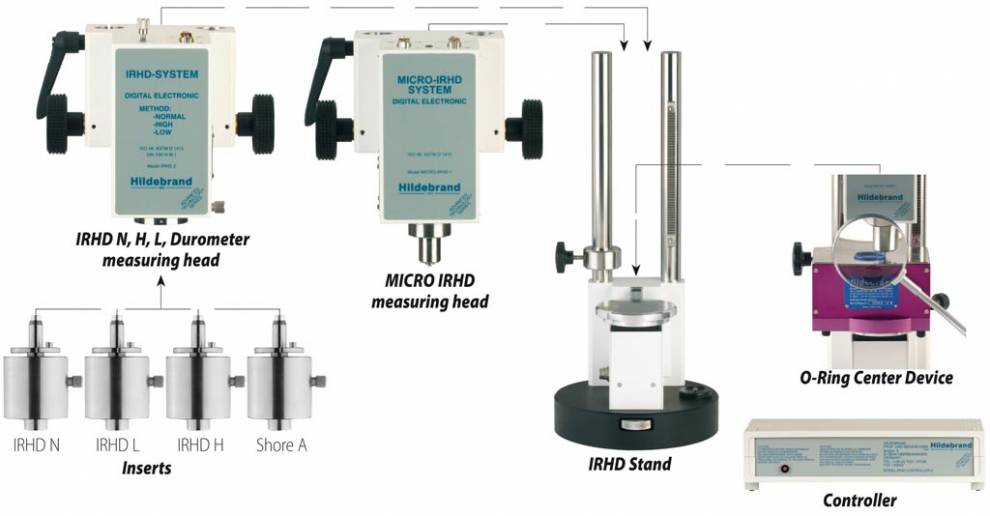

For measurements of O-rings and seals, an optional automatic O-ring centering accessory is available to improve accuracy.

Features

  • Measures according to DIN ISO 48, ISO 48, ASTM D 1415, BS 903: Part A26
  • For hardness measurements on materials from 1 to 5 mm
  • Supplied with calibration certificate

Related Products

IRHD Macro Hardness Tester
Click image for more info
Macro IRHD Hardness Tester
- Appropriate for hardness tests on elastomers and plastics thicker than 6 mm IRHD
IRHD Micro Test Blocks
Click image for more info
Test block set for verification of IRHD-MICRO Measuring Device
- Includes calibration certificate
O-Ring Centering Device for IRHD-MICRO
Click image for more info
O-Ring Centering Device for IRHD-MICRO
- Allows exact measurement at the highest point of the O-Ring
X-Table Centering Device for IRHD-MICRO
Click image for more info
X-Table Centering Device
- Custom designed sample holders are available
Prism Centering Device for IRHD and Durometer Stands
Click image for more info
Prism Centering Device for IRHD and Durometer Stands

Specifications

DimensionsIRHD unit: Ø 200 mm x 470 mm
Controller: 290 mm x 260 mm x 75 mm
Net weight17.5 kg
Max. sample thickness90 mm (without Centering Device)
Resolution0.1 IRHD
Power100-240V AC, 50/60 Hz

Buy Now

Item Description Price
Micro IRHD Test System with Software
$12,965.00
Accessories
Test block set for verification of IRHD-MICRO Measuring Device
$596.00
O-Ring Centering Device for IRHD-MICRO
$2,895.00
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
Unavailable
