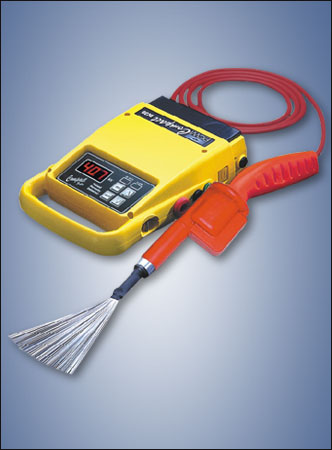

Pulse Holiday Detector High Voltage Pulse Holiday Detector

Click images to enlarge.
Measuring Ranges:
Model P20: 2,000 to 20,000 Volts
Model P40: 5,000 to 40,000 Volts

Resolution: 100 Volts

The PCWI Compact Pulse Porosity Detector is fully adjustable, has regulated 'pulsed' output up to 20kV or 40kV. All pulse models can be used for porosity and holiday testing of carbon impregnated coatings such as carbonated rubber, thick coatings such as rubber linings and on ‘plastic’/fibreglass type coatings likely to become electrostatically charged.

Regulated 'pulsed' output is fully adjustable. Ideal for use:
- In moist conditions
- On wet coating surfaces
- On contaminated coating surfaces
- On carbon-impregnated coatings, i.e. carbonated rubber
- On "plastic'/fiberglass type coatings likely to become electrostatically charged
- Coating thickness range: 6 to 1000 mils (150 to 25,000µm) with the P40 holiday detector

Features

  • Light weight ABS case
  • The P20 and the P40 holiday detectors are available in industrial and pipeline kits.
  • Clip-on battery pack
  • 'Wet' or 'dry' condition sensitivity control on P20 and P40 porosity detectors
  • Single power supply
  • LED digital display of applied voltage
  • Voltage ranges of 2000 to 20kV or 40kV, fully adjustable
  • Constant test current
  • Overcharge protection
  • Earphones for noisy environments
  • Low battery condition indicator

Related Products

Click image for more info
FBE
Flat Brush Electrodes
Click image for more info
CPC
Circular Pipeline Coils
Click image for more info
IBE
Circular Internal Brush Electrodes
- The circular disk brushes are available in standard sizes of 4" (102mm) to 20" (508mm) diameters. Larger sizes available upon request.
Click image for more info
EBE
External Rolling Pipeline Brushes
- Sizes from 1" (25mm) to 20" (508mm) diameters or custom made as required.
Click image for more info
High Voltage Pulse Crest Meter
- Used for checking and calibrating Porosity Detector output voltage

Specifications

Model: P20 P40
Unit Weight: 4.8 lbs (2.2 kg) 4.8 lbs (2.2 kg)
Packed Weight: 13.2 lbs (6.0 kg) 13.2 lbs (6.0 kg)
Display: LED LED
Voltage: 1 to 20kV 5 to 40kV
Resolution: 100V 100V
Alarm Range: 2 to 20kV 5 to 40kV
Short Circuit
Test Current:
1.5 mA max.
Power Supply: Gell Cell 3Ah Clip-On
Dimensions: 10.25" x 6.3" x 2.8" (260 x 160 x 70 mm)
Alarm: Audible
Probe Handle: Rubber Lead
Battery Condition: LED Indicator

Complete Kit

Industrial Kit
Holiday Detector with clip-on power pack, 10-hour charger, probe handle with 79" (2m) long cable, 2.4" (60mm) connector for flat brush electrodes, 22' (7m) long ground cable with clamp, fan brush, 10" (250mm) wide flat brass wire brush, 18" (450mm) long probe extension, air-operated earphones, shoulder and waist harness, carrying case , operation instructions with conformance certificate.

Pipeline Kit
Holiday Detector with clip-on power pack, spare clip-on battery pack, 10-hour charger, probe handle with 79" (2m) long cable, 22' (7m) long ground cable with clamp, fan brush, coil joiner with 18" (450mm) long probe extension, air-operated earphones, shoulder and waist harness, carrying case , operation instructions with conformance certificate.

Downloads

Buy Now

Item Description Price
P20 High Voltage Pulse Holiday Detector Industrial Kit
$3,061.00
P20 High Voltage Pulse Holiday Detector Pipeline Kit
$3,061.00
P40 High Voltage Pulse Holiday Detector Industrial Kit
$3,190.00
P40 High Voltage Pulse Holiday Detector Pipeline Kit
$3,190.00
Accessories
0867
Battery Charger for PCWI Holiday Detectors
$70.00
0868
Battery charger (selectable 110/220/240V)
$70.00
0647
Fuse holder, including fuse
$45.00
0222
Coil joiner only for pipeline coils
$90.00
0842
Power pack (spare slip-out gel cell)
$125.00
0840
Probe handle complete for Pulse
$440.00
