HPE-PJ Pusey & Jones Hardness Tester - Plastometer Bareiss

Made in Germany

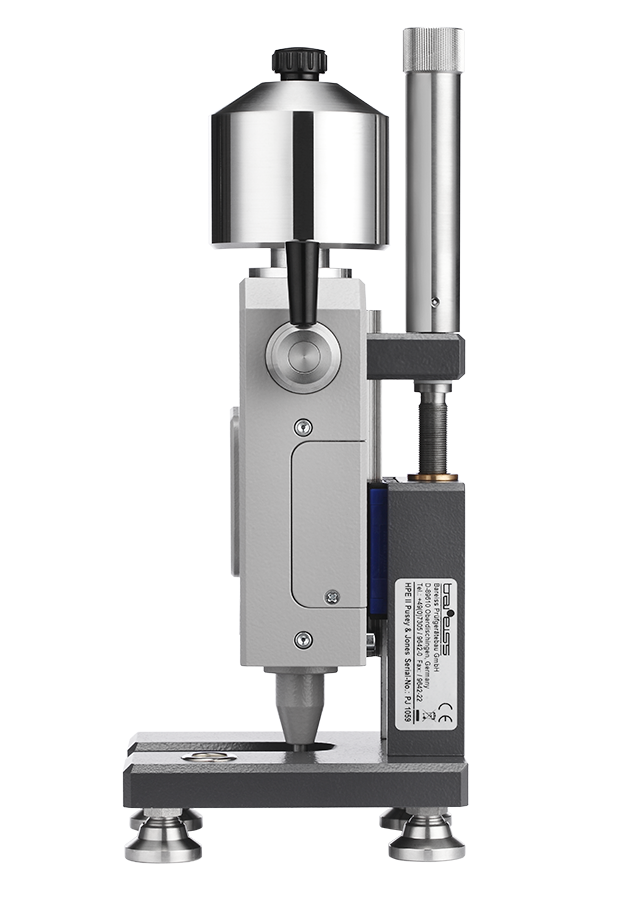

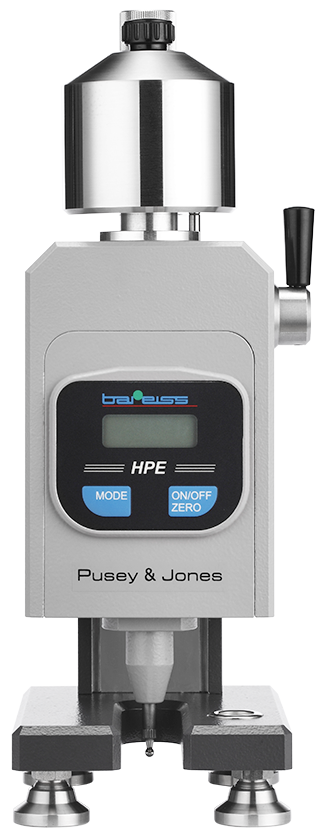

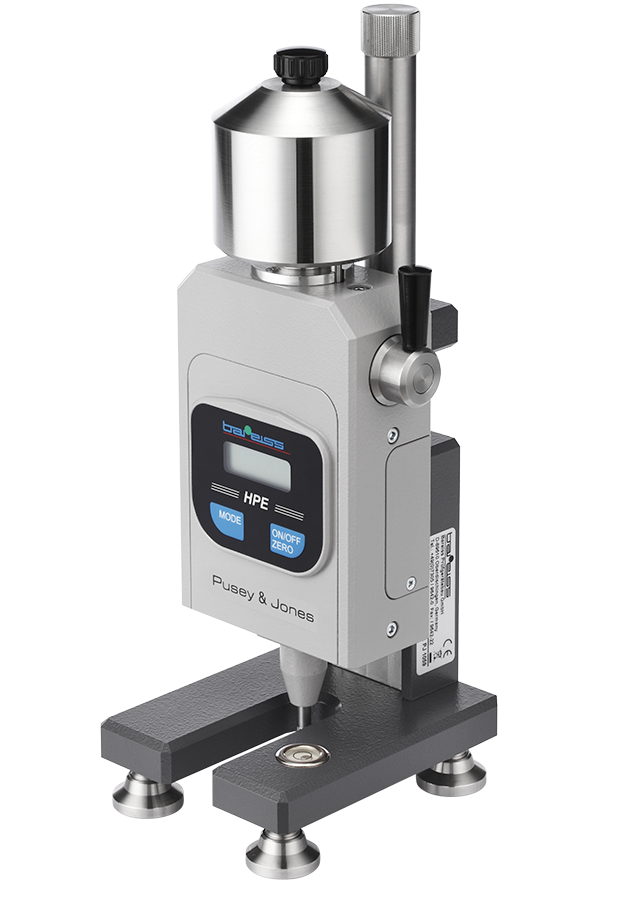

HPE Pusey & Jones Hardness Tester Bareiss
Click images to enlarge.
Conforms to: ISO 7267-3, ASTM D 531

The HPE Pusey & Jones is designed for testing the hardness of rubber and rubber-like materials. It is typically used for testing rubber rollers used by the paper industry. It can also be used for testing specimens with a flat surface and thickness of 13 mm.

The digital display indicates the penetration depth in mm units with 0.01 mm resolution. A specialized load weight ensures a total force of 9.8 N is applied. A built-in timer displays the measurement automatically after 60 seconds.

Features

  • Built-In Timer for Precise and Repeatable Measurement
  • 1kg load weight
  • RS232 Output for Connection to Optional HardTest Software

Pusey & Jones Hardness Tester Demo Video

Dimensions

Buy Now

Item Description Price
Pusey and Jones Hardness Tester Complete System
$5,045.00
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
Unavailable
