GLS Portable gloss measurement for all surface finishes

Made in USA-Defelsko

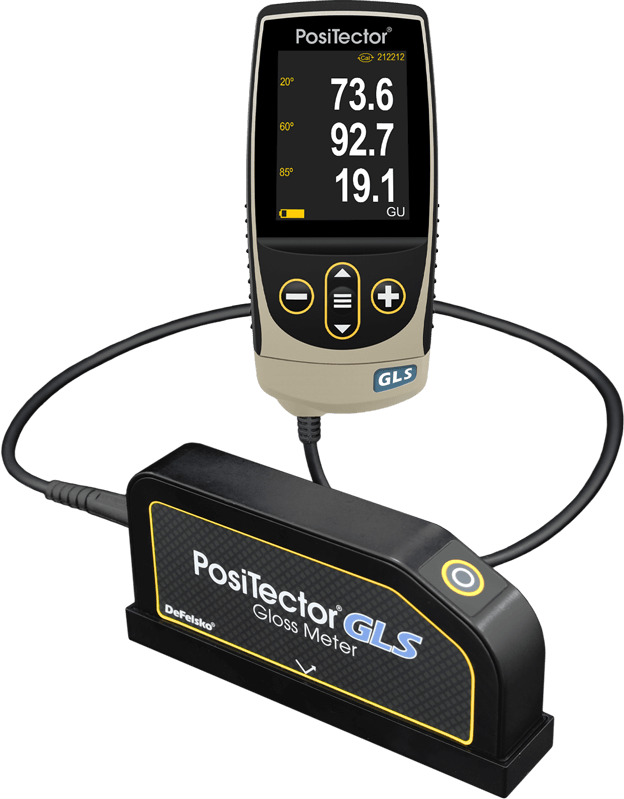

Positector GLS Gloss Meter
Click images to enlarge.

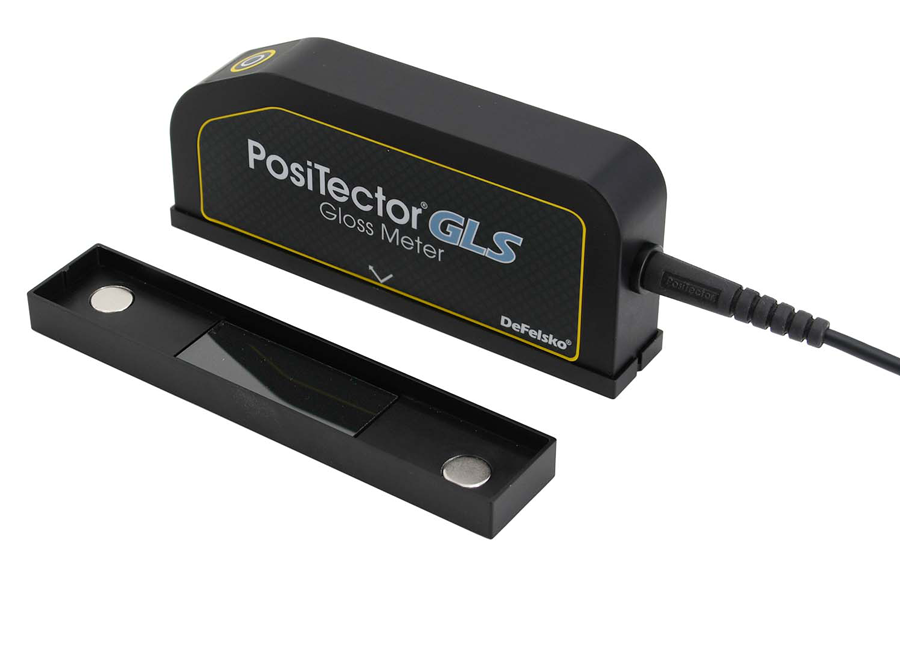

The PosiTector GLS measures GU (gloss units) and percent reflectance. Innovative technology and factory calibration in the PosiTector GLS mean that it arrives ready-to-measure - usually, there is no need to perform a calibration adjustment. If the probe is resting in the included protective base plate and the Power-On Cal feature is enabled, the probe will automatically perform a check and calibration using the certified gloss standard (tile) incorporated in the base plate.

Conforms to ASTM C584/D523/D4039, ISO 2813/7668, JIS Z 8741, AS/NZS 1580.602.2

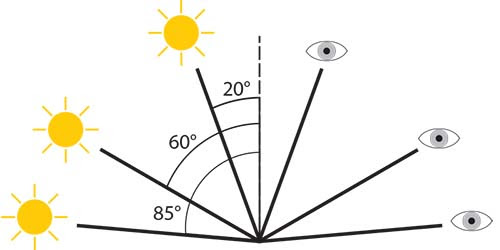

Select from 3 probe models:

GLS 60 – suitable for most gloss applications, preferred angle for semi-gloss

GLS 20/60 – suitable for high- to semi-gloss applications. Calculates Haze (Haze Index)

GLS 20/60/85 – suitable for high-, semi-, and matte- gloss applications and also calculates Haze (Haze Index)

GLS Probes

How to Measure Gloss with the PosiTector® GLS Gloss Meter

Features

  • Includes Certificate of Calibration showing traceability to NRC for both the probe and gloss standard included
  • Weatherproof, dustproof, and water-resistant gage body—IP65-rated enclosure
  • Larger 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation
  • Automatic Diagnosis and Auto Calibration performed upon power-on using the protective base plate with integrated calibration standard (tile)
  • ​The GLS Glossmeter uses an LED for the light source in all its models

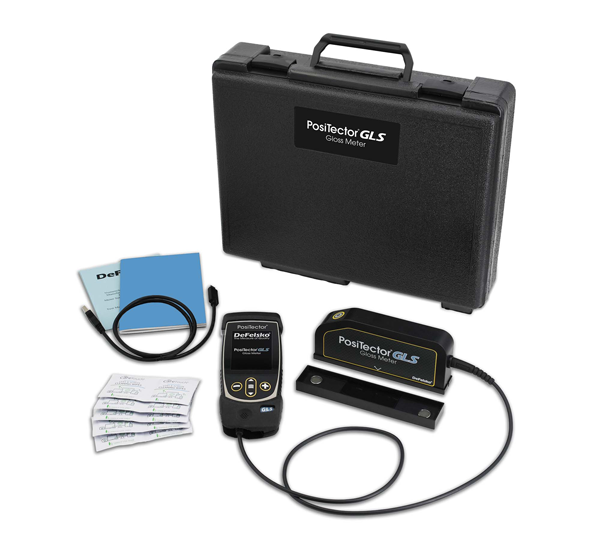

Complete Kit

ALL GLS GAGES COME COMPLETE with a protective base plate with integrated calibration standard (tile), 10 cleaning wipes, protective rubber holster, wrist strap, 3 AAA batteries, instructions, hard shell case, protective lens shield, Long Form Certificate of Calibration, USB cable, PosiSoft Software, two-year warranty.

Specifications

Measurement Area20°: 10 x 10 mm
60°: 10 x 20 mm
85°: 4 x 45 mm
Measurement Range20°: 0 - 2,000 GU
60°: 0 - 1,000 GU
85°: 0 - 160 GU
Repeatability±0.2 GU (≤100 GU), ±0.2% (>100 GU)
Reproducibility±0.2 GU (≤100 GU), ±0.2% (>100 GU)
Reproducibility±0.5 GU (≤100 GU), ±0.5% (>100 GU)
Resolution Gloss±0.1 GU (≤100 GU), ±1 GU (>100 GU)
Resolution % Reflectance0.1%
Resolution Haze±0.1 (≤100), ±1 (>100)
Operating Conditions0° to 45° C (32° to 113° F) - non-condensing
Probe Size165 x 73 x 32 mm (6.5" x 2.875" x 1.25")
Probe Weight555 g (19.6 oz.)

Range Guide

Gloss Range60° valueMeasure with
High Gloss> 70 GU20°
Semi Gloss10 – 70 GU60°
Low/Matte< 10 GU85°

Downloads

Buy Now

Item Description Price
GLS with Standard Display
PosiTector GLS 60° with Standard Display, For most gloss applications, preferred angle for semi-gloss
$1,775.00
PosiTector GLS 20°/60° with Standard Display, for high- to semi- gloss applications, Calculates Haze (Haze Index)
$2,125.00
PosiTector GLS 20°/60° with Standard Display, for high-, semi-, and matte gloss applications, Calculates Haze (Haze Index)
$2,575.00
GLS with Advanced Display
PosiTector GLS 60° with Advanced Display, For most gloss applications, preferred angle for semi-gloss
$2,225.00
PosiTector GLS 20°/60° with Advanced Display, for high- to semi- gloss applications, Calculates Haze (Haze Index)
$2,575.00
PosiTector GLS 20°/60°/85° with Advanced Display, for high-, semi-, and matte gloss applications, Calculates Haze (Haze Index)
$3,025.00
Accessories
Spare / Replacement Probes
PRBGLS60
Probe for PosiTector GLS 60°, PROBE ONLY, Display Sold Separately
$1,450.00
PRBGLS2060
Probe for PosiTector GLS 20°/60°, PROBE ONLY, Display Sold Separately
$1,800.00
PRBGLS206085
Probe for PosiTector GLS 20°/60°/85°, PROBE ONLY, Display Sold Separately
$2,250.00
GLS Accessories
GLSCLEANKIT
PosiTector GLS Cleaning Kit
$10.00
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
Unavailable
