FTS-3000 Force Test System

FTS-3000 Force Test System
Click images to enlarge.
The FTS-3000 is a complete Force Test System designed for compression and tensile testing. It is available in 5 measuring ranges with capacities up to 200 lbs / 100 kg / 1000 N. Combined with optional test fixtures this compact system is ideal for peel testing, pull testing, button force testing and much more.

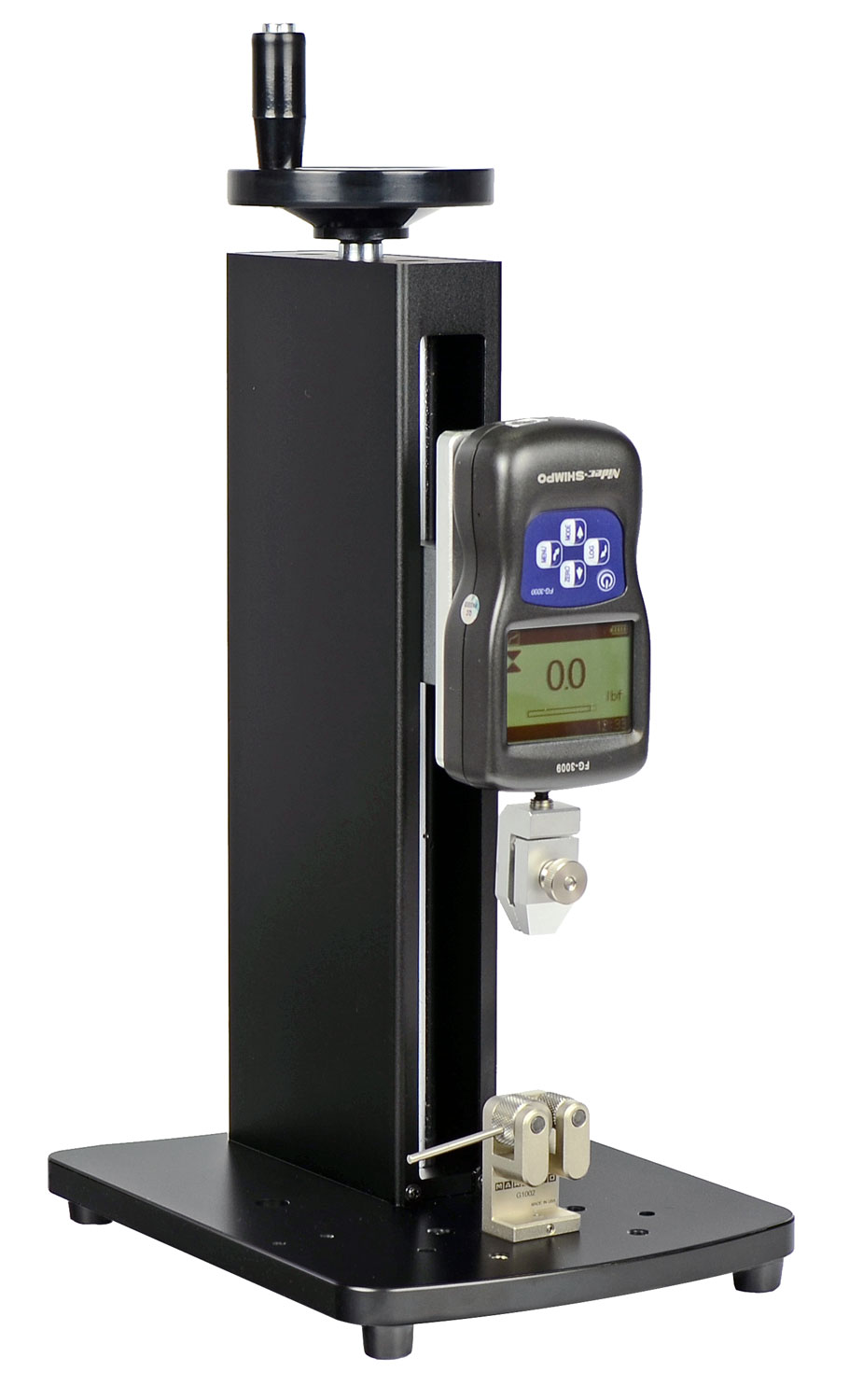

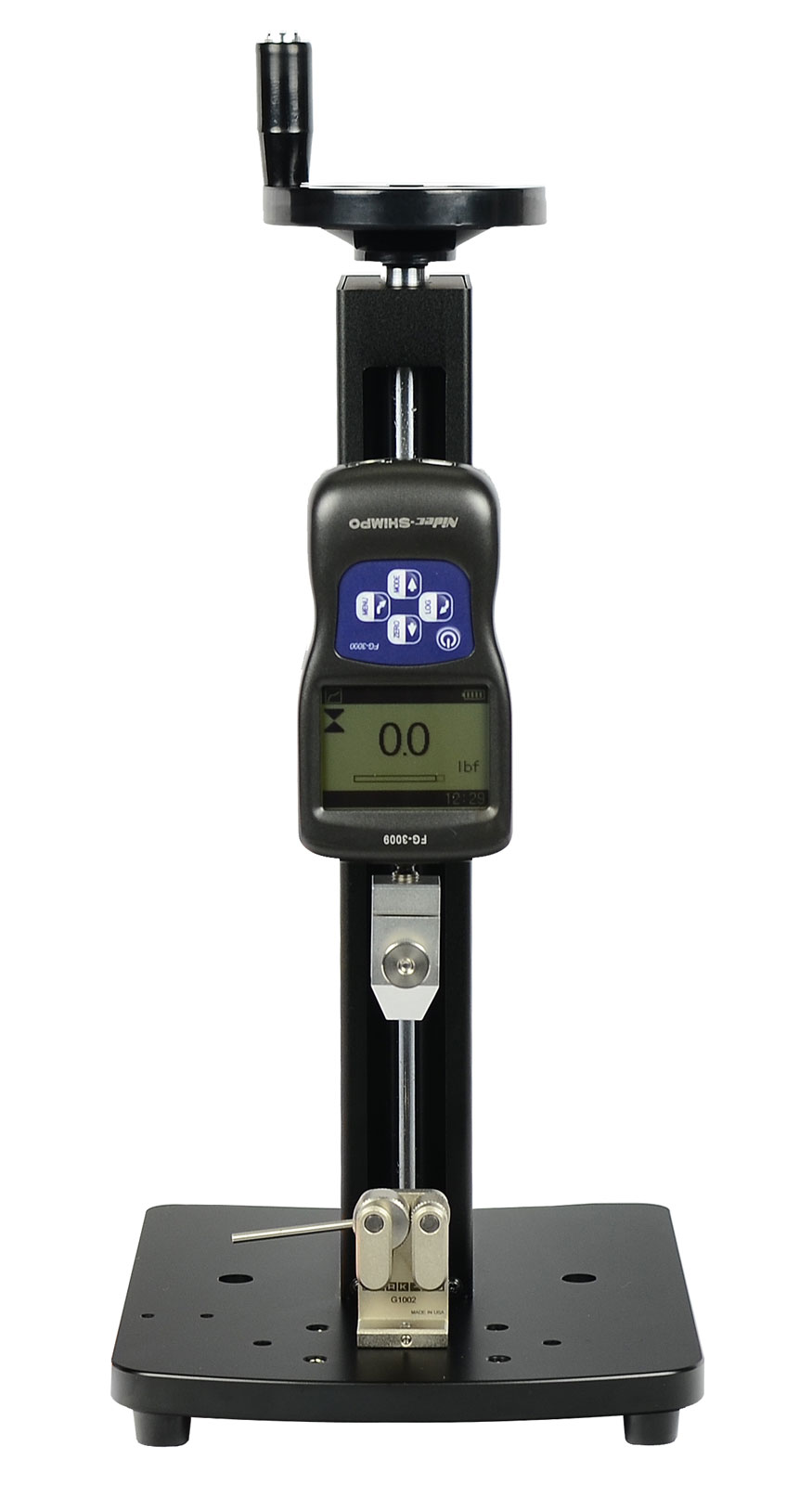

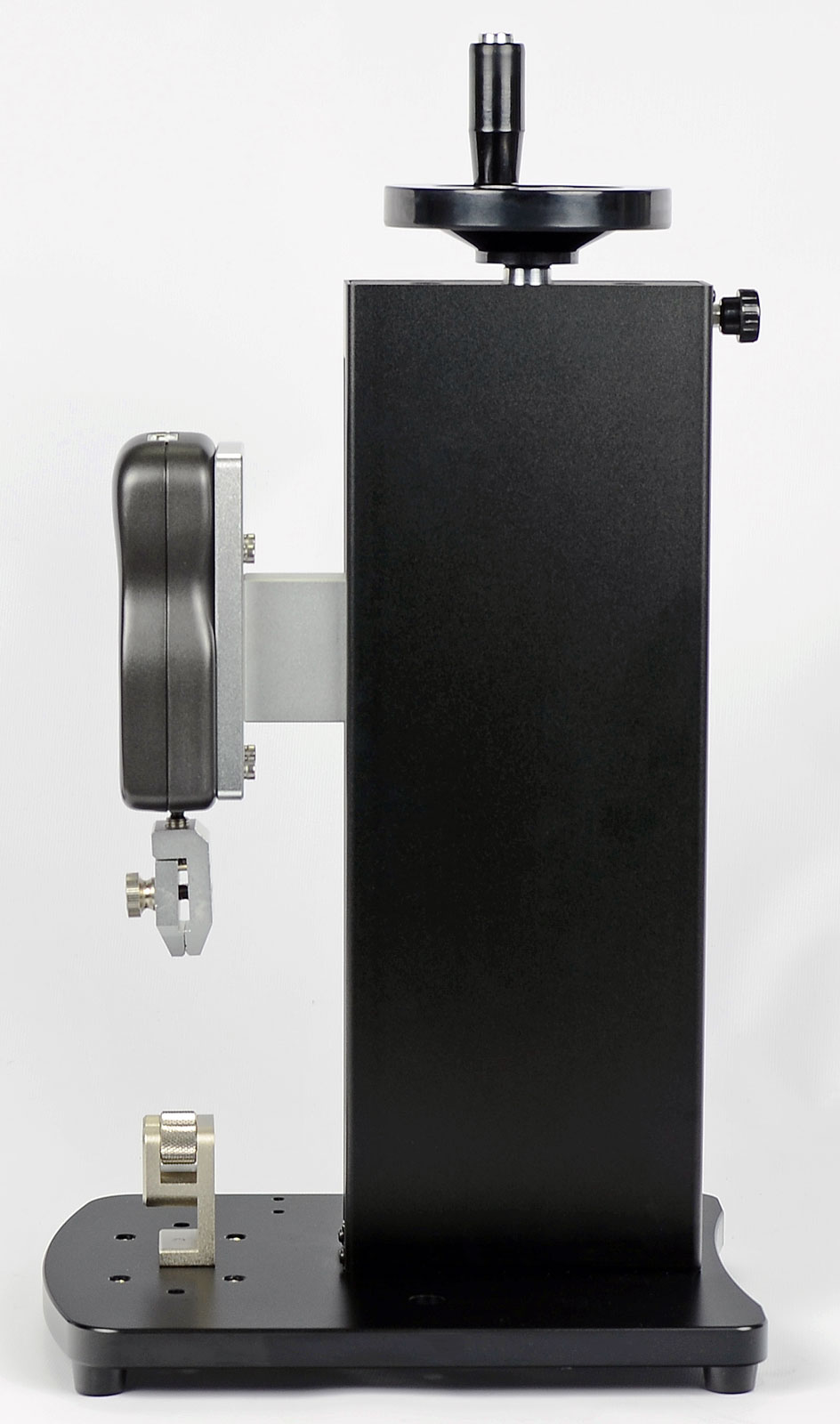

*NOTE: Shown with optional G1008 Grip and G1002 Dual Roller Cam Grip (SOLD SEPARATELY)

Features

  • Includes Factory Calibration Certificate. NIST Traceable Calibration is OPTIONAL
  • Compact footprint & lightweight enables usage in most locations
  • Flexible Vertical or Horizontal operation

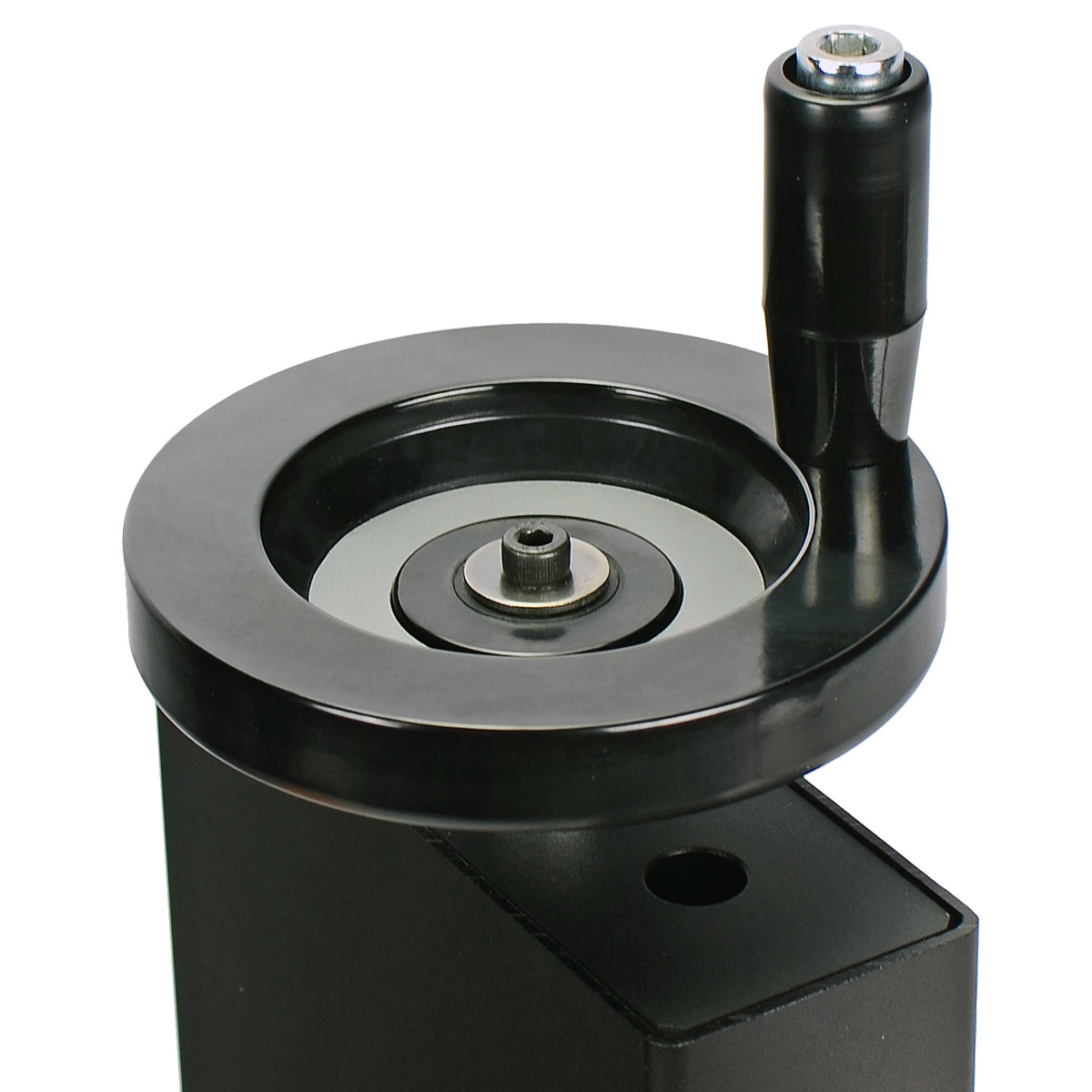

  • Fine movement from the top-mounted wheel aids in precision testing
  • 250 lbf (125 kg) maximum testing capacity
  • Digital Scale kit available for high resolution distance recording
  • 1000 Hz Sample Rate combined with +/-0.3% F.S. accuracy provides fast sampling producing great resolution and more accurate results
  • Three mode operation: Track, Peak & Preset Limits
  • Programmable High & Low Limits allow for instant visual and audible indication of pass or fail testing in Preset mode
  • 500 point data collection capability can be viewed on display, sent to optional printer, or uploaded to software package for further analysis
  • Comparator output function provides user with easy Pass/Fail testing system integration capabilities
  • Field Calibration capability eliminates the need to send to a lab for calibration
  • Free Data logging/graphing software provided, sample rate up to 60 readings/sec

Ranges

ModelCapacityResolution
FTS-30032.2 Lb
1 Kg
10 N
35 oz
0.001 Lb
0.001 Kg
0.01 N
0.01 oz
FTS-300511 Lb
5 Kg
50 N
180 oz
0.01 Lb
0.001 Kg
0.01 N
0.1 oz
FTS-300622 Lb
10 Kg
100 N
350 oz
0.01 Lb
0.01 Kg
0.1 N
0.1 oz
FTS-3008110 Lb
50 Kg
500 N
1800 oz
0.1 Lb
0.01 Kg
0.1 N
1 oz
FTS-3009220 Lb
100 Kg
1000 N
3500 oz
0.1 Lb
0.1 Kg
1 N
1 oz

EDMS Data Acquisition Software

Allows full testing of FG-7000 Series Force Gauges with live analysis of the test results. Users can set a delay or a time period for the test data to record as well as begin or end if a load threshold is reached. The load can be inverted so the graph shows the resultant force in the direction desired. Average and peak readings are automatically calculated, but the user can zoom in on a section of a graph and recalculate the new average and peak over the selected portion of the test. Besides acquiring live data, the EDMS program can also upload previously stored readings from the gauge. Additionally, the software provides the ability to easily save the data set to a spreadsheet file, plus save the resultant graph as a photo for later review.

Specifications

Included AccessoriesAC Adaptor/Charger, USB cable, calibration cert., 6 attachments: hook, flat tip, conical tip, chisel tip, notched tip, extension shaft
CapacityUp to 250 lbf (125 kg); 143 lbf (65 kg) with optional Tensile frame
Warranty1 year
FGS-250W Test Stand Specifications
Travel0.12" (3 mm)/turn
Stroke9" (230 mm) max.; 10.24" (260 mm) max. with Tensile Frame kit.
Dimensions (Stand)9.8 x 7.7 x 17.5" (250 x 196 x 445 mm)
Weight15.4 lb (7 kg)
FG-3000 Digital Force Gauge Specifications
Accuracy± 0.3% F.S.
Data Sampling Rate1000 Hz
Selectable UnitsN, kgf, ozf, and lbf. (Depending on Range)
Measurement MethodPeak, Track, Preset
Overload Capacity150% of F.S. (LCD flashes beyond 110% of F.S.)
Display160*128 dot matrix LCD with Backlight
Display Update Rate10 times/second
Memory500 data
OutputsUSB, RS-232; High & Low Limit NPN’s
Set PointProgrammable high and low limits in Preset Mode
Power3.6VDC 800mAH Ni-MH rechargeable batteries
Battery LifeApproximately 16 hours continuous use per full charge
Charger / AdaptorUniversal USB/BM charger, Input: 110 ~ 240VAC
Temperature Effects<0.054% per °F (0.03% FS per °C)
Operating Temperature14 to 104°F (-10 to 40°C)
Storage Relative Humidity20 to 80%
Gauge HousingAluminum
Dimensions (Gauge)5.5 x 2.8 x 1.4″ (140 x 71 x 35.5 mm)
Weight0.9 lb (0.4 kg)

Related Products

Shimpo FG-3000 Digital Force Gauge
Click image for more info
FG-3000 Digital Force Gauge
- 1000 Hz Sample Rate combined with +/-0.3% F.S. accuracy provides fast sampling producing great resolution and more accurate results
- 500 point data collection capability can be viewed on display, sent to optional printer, or uploaded to software package for further analysis
FGS-250W Manual Test Stand
Click image for more info
Manual Hand Wheel Operated Test Stand
- Flexible Vertical or Horizontal operation

Buy Now

Item Description Price
Force Test System, 2.2 Lb / 1 Kg / 10 N Capacity
$820.00
Force Test System, 11 Lb / 5 Kg / 50 N Capacity
$820.00
Force Test System, 22 Lb / 10 Kg / 100 N Capacity
$820.00
Force Test System, 110 Lb / 50 Kg / 500 Capacity
$870.00
Force Test System, 220 Lb / 100 Kg / 1000 N Capacity
$870.00
Accessories
FGS-250W-DSK
Digital Distance Meter for FTS-3000 System
$195.00
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
Unavailable
