R50 Universal Torque Sensor

Click images to enlarge.

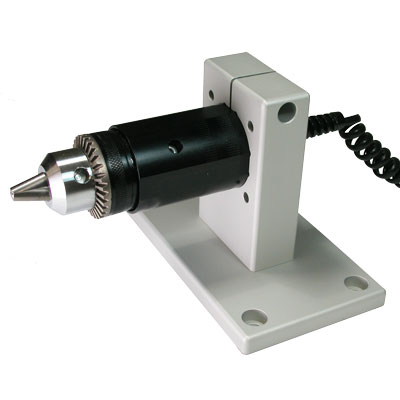

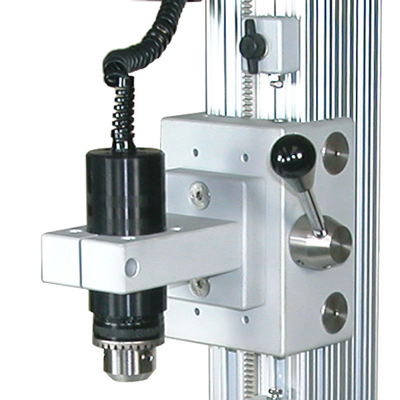

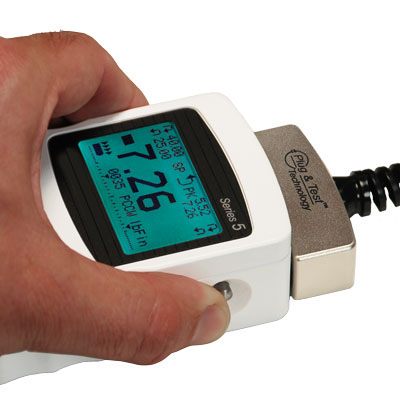

Measure bi-directional torque for a wide variety of applications. Contains a chuck for samples up to 1/2" in diameter, depending on capacity. The sensor can be used as a hand held device, or mounted to a torque test stand. Capacities available from 10 ozin to 100 lbin.

Features

  • Compatible with the 7i, 5i and 3i digital indicators
  • Rugged aluminum housing

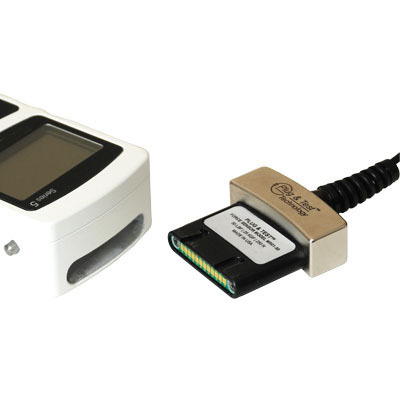

  • Unique Plug & TestTM connector holds all calibration and configuration data
  • NIST-traceable certificate of calibration included

Torque Ranges - capacity/resolution

Show with:
Model ozFin lbFin lbFft gFcm kgFmm Nmm Ncm Nm
MR50-10Z 10
0.005
10
0.01
-- -N/A 700
0.5
N/A
7
0.005
7
0.005
70
0.05
N/A
7
0.005
7
0.005
-N/A
MR50-20Z 20
0.01
20
0.02
-- -N/A 1400
1
N/A
14
0.01
14
0.01
140
0.1
N/A
14
0.01
14
0.01
-N/A
MR50-50Z 50
0.02
50
0.05
-- -N/A 3600
2
N/A
36
0.02
36
0.05
350
0.2
N/A
35
0.02
36
0.05
-N/A
MR50-12 -- 12
0.005
12
0.01
1
0.0005
N/A
-N/A 140
0.1
140
0.1
-N/A 135
0.1
135
0.1
1.35
0.001
N/A
MR50-50 -- 50
0.02
50
0.05
4
0.002
N/A
-N/A 580
0.5
580
0.5
-N/A 570
0.5
570
0.5
5.7
0.005
N/A
MR50-100 -- 100
0.05
100
0.1
8
0.005
N/A
-N/A 1150
0.5
1150
1
-N/A 1150
0.5
1150
1
11.5
0.005
N/A
N/A = Gauge is unable to display these units

Related Products

M3i digital force indicator
Click image for more info
Force and Torque Indicator
- Interchangeable force and torque sensors through Plug & Test™technology
- USB data output
Click image for more info
Advanced Force/Torque Indicator
- 1,000-point data memory with statistics (min, max, mean, standard deviation) and outputs
Click image for more info
Professional Force and Torque Indicator
- Continous data capture of up to 5,000 data points, at up to 14,000 Hz, downloadable to a PC

Specifications

Accuracy± 0.35% of full scale ±1 digit + indicator
Weight1.4 lbs (0.6 kg)
Warranty3 years

Downloads

Buy Now

Item Description Price
Universal Torque Sensor, 10 ozFin
$845.00
Universal Torque Sensor, 20 ozFin
$845.00
Universal Torque Sensor, 50 ozFin
$845.00
Universal Torque Sensor, 12 lbFin
$795.00
Universal Torque Sensor, 50 lbFin
$795.00
Universal Torque Sensor, 100 lbFin
$795.00
Accessories
AC1007
Mounting kit, STJ, table top
$90.00
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
Unavailable
