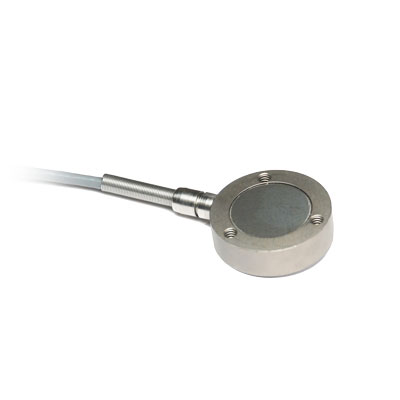

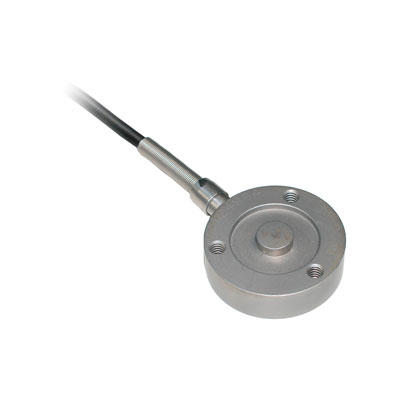

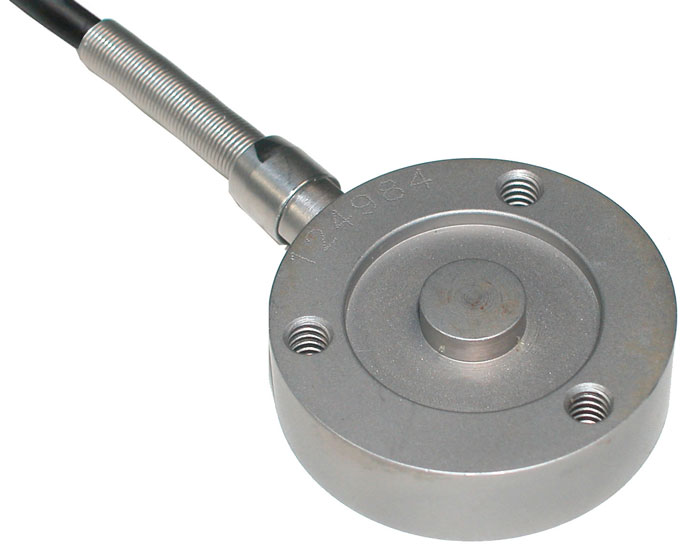

R02 Compression Force Sensor

Click images to enlarge.
Button sensor for compressive loads of up to 10,000 lb. Compact and rugged, the R02 is ideal for heavy duty applications with space constraints.

Features

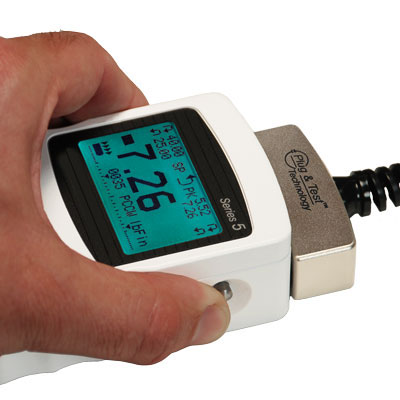

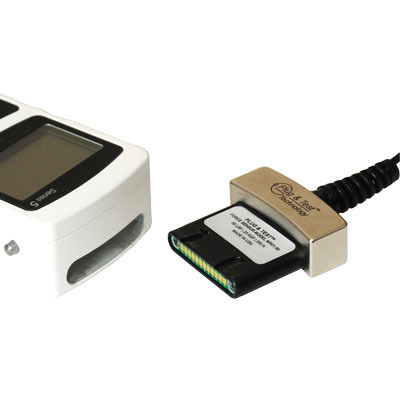

  • Unique Plug & TestTM connector holds all calibration and configuration data
  • Stainless steel construction
  • NIST-traceable certificate of calibration included
  • Warranty: 3 years

Force Ranges

Show with:
Model lbf ozf gf kgf N kN
MR02-100 100
0.05100
0.1		 1600
1N/A		 50000
20N/A		 50
0.0250
0.05		 500
0.2500
0.5 		--
MR02-200 200
0.1200
0.2		 3200
2N/A		 -N/A 100
0.05100
0.1		 1000
0.51000
1		 1
0.0005-
MR02-500 500
0.2500
0.5		 8000
5N/A		 -N/A 250
0.1250
0.2		 2500
12500
2		 2.5
0.001-
MR02-1000 1000
0.51000
1		 16000
10N/A		 -N/A 500
0.2500
0.5		 5000
25000
5		 5
0.002-
MR02-2000 2000
12000
2		 32000
20N/A		 -N/A 1000
0.51000
1		 10000
510000
10		 10
0.005-
MR02-5000 5000
25000
5		 -N/A -N/A 2500
12500
2		 25000
10-		 25
0.0125
0.02
MR02-10000 10000
510000
10		 -N/A -N/A 5000
25000
5		 50000
25-		 50
0.0250
0.05
N/A = Series 3i is unable to display these units

Dimensions


Related Products

M3i digital force indicator
Click image for more info
Series-3i
Force and Torque Indicator
- Interchangeable force and torque sensors through Plug & Test™technology
- USB data output
Click image for more info
Series-5i
Advanced Force/Torque Indicator
- 1,000-point data memory with statistics (min, max, mean, standard deviation) and outputs
Click image for more info
Series-7i
Professional Force and Torque Indicator
- Continous data capture of up to 5,000 data points, at up to 14,000 Hz, downloadable to a PC

Specifications

Accuracy± 0.5% of full scale ±1 digit + indicator
Weight0.4 lbs (0.2 kg)
Warranty3 years

Downloads

PDF Data Sheet
PDF File

Buy Now

Item Description Price
MR02-100
Force sensor, 100 lbF / 1600 ozF / 50 kgF / 50000 gF / 500 N DISPLAY SOLD SEPARATELY
$880.00
MR02-200
Force sensor, 200 lbF / 3200 ozF / 100 kgF / 1000 N / 1 kN DISPLAY SOLD SEPARATELY
$880.00
MR02-500
Force sensor, 500 lbF / 8000 ozF / 250 kgF / 2500 N / 2.5 kN DISPLAY SOLD SEPARATELY
$880.00
MR02-1000
Force sensor, 1000 lbF / 16000 ozF / 500 kgF / 5000 N / 5 kN DISPLAY SOLD SEPARATELY
$880.00
MR02-2000
Force sensor, 2000 lbF / 32000 ozF / 1000 kgF / 10000 N / 10 kN DISPLAY SOLD SEPARATELY
$880.00
MR02-5000
Force sensor, 5000 lbF / 2500 kgF / 25000 N / 25 kN DISPLAY SOLD SEPARATELY
$1,000.00
MR02-10000
Force sensor, 10000 lbF / 5000 kgF / 50000 N / 50 kN DISPLAY SOLD SEPARATELY
$1,000.00
