R01 S-Beam Force Sensor

Made in USA
Click images to enlarge.

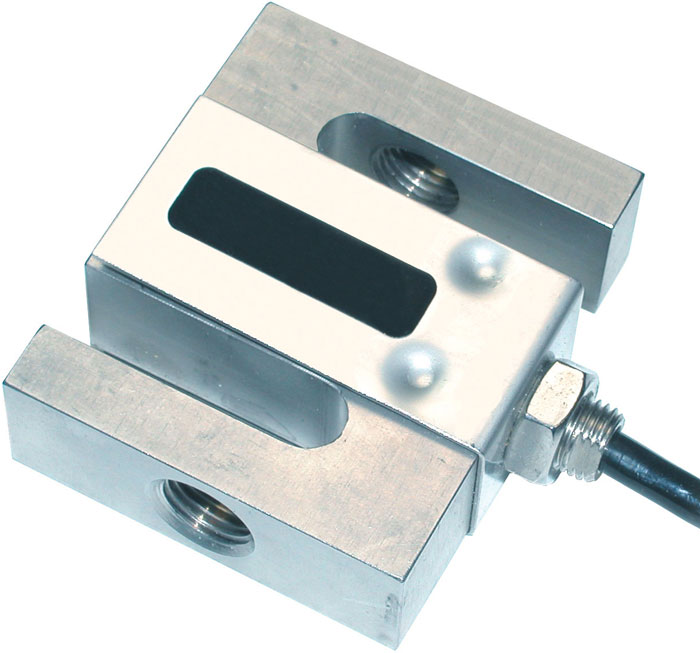

Series R01 rugged smart sensors are designed for measuring tension and compression force, with applications in virtually every industry. Durable S-Beam design with threaded holes on two sides allows for many configurations.

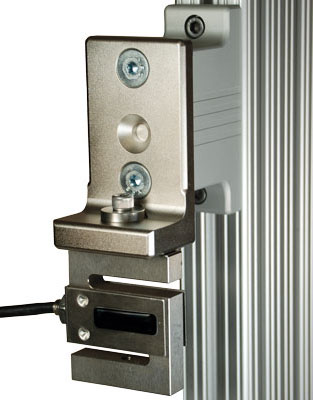

The sensor can be integrated into an existing system or mounted to a test stand. A shortened cable is available for mounting to an ESM1500LC test stand*. Capacities available from 50 to 10,000 lbF [250 N to 50 kN]. Compatible with indicators (sold separately) through unique Plug & TestTM technology.

Features

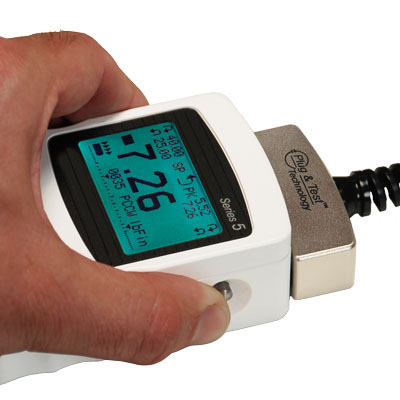

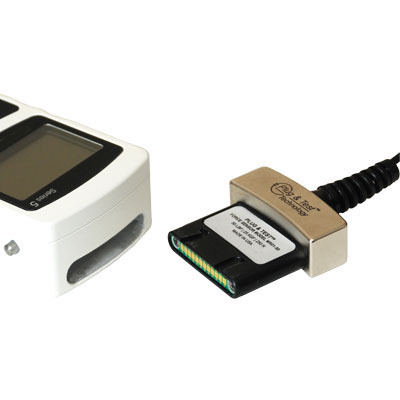

  • Unique Plug & TestTM connector holds all calibration and configuration data
  • Measures tensile and compressive forces
  • NIST-traceable certificate of calibration included
  • 20 ft Connecting Cable
  • Warranty: 3 years

Force Ranges - capacity/resolution

Show with:
Model lbf ozf gf kgf N kN
MR01-50 50
0.02
50
0.05
800
0.5
N/A
25000
10
N/A
25
0.01
25
0.02
250
0.1
250
0.2
--
MR01-100 100
0.05
100
0.1
1600
1
N/A
50000
20
N/A
50
0.02
50
0.05
500
0.5
500
0.5
--
MR01-200 200
0.1
200
0.2
3200
2
N/A
-N/A 100
0.05
100
0.1
1000
0.5
1000
1
1
0.0005
-
MR01-500 500
0.2
500
0.5
8000
5
N/A
-N/A 250
0.1
250
0.2
2500
1
2500
2
2.5
0.001
-
MR01-750 750
0.5
750
0.5
12000
10
N/A
-N/A 375
0.2
375
0.2
3750
2
3750
2
3.75
0.002
-
MR01-1000 1000
0.5
1000
1
16000
10
N/A
-N/A 500
0.2
500
0.5
5000
2
5000
5
5
0.002
-
MR01-1500 1500
1
2000
2
24000
20
N/A
-N/A 750
0.5
1000
1
75000
5
10000
10
7.5
0.005
-
MR01-2000 2000
1
2000
2
32000
20
N/A
-N/A 1000
0.5
1000
1
10000
5
10000
10
10
0.005
-
MR01-5000 5000
2
5000
5
-N/A -N/A 2500
1
2500
2
25000
10
-
25
0.01
25
0.02
MR01-10000 10000
5
10000
10
-N/A -N/A 5000
2
5000
5
50000
25
-
50
0.02
50
0.05
N/A = Series 3i is unable to display these units

Dimensions

Related Products

M3i digital force indicator
Click image for more info
Force and Torque Indicator
- Interchangeable force and torque sensors through Plug & Test™technology
- USB data output
Click image for more info
Advanced Force/Torque Indicator
- 1,000-point data memory with statistics (min, max, mean, standard deviation) and outputs
Click image for more info
Professional Force and Torque Indicator
- Continous data capture of up to 5,000 data points, at up to 14,000 Hz, downloadable to a PC

Specifications

Accuracy± 0.15% of full scale ±1 digit + indicator
WeightFrom 1.9 lbs (0.9 kg) to 3 lbs (1.4)
Warranty3 Years

Downloads

Buy Now

Item Description Price
S-Beam Load Cell, 50lbF
$595.00
S-Beam Load Cell, 100lbF
$595.00
S-Beam Load Cell, 200lbF
$595.00
S-Beam Load Cell, 500lbF
$595.00
S-Beam Load Cell, 750lbF
$595.00
S-Beam Load Cell, 1000lbF
$595.00
S-Beam Load Cell, 1500lbF
$595.00
S-Beam Load Cell, 2000lbF
$595.00
S-Beam Load Cell, 5000lbF
$845.00
S-Beam Load Cell, 10000lbF
$845.00
Accessories
AC1018
Mounting kit SS TS-Series test stands
$100.00
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
Unavailable
* Add suffix “-1” for shortened cable, for use on the ESM1500LC test stand. Ex: MR01-1000-1.

“-1” sensors include hardware for mounting to the ESM1500LC's crosshead.
