G1106 Self-centering Vise Grip

Made in USA

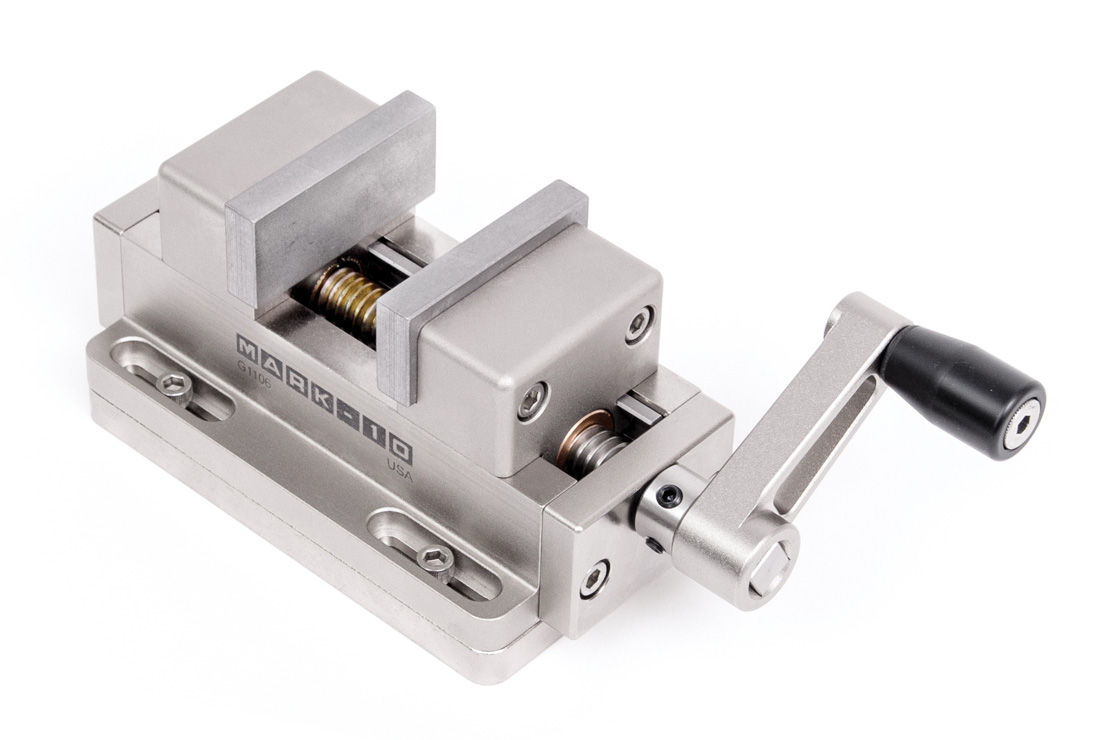

G1106 Self-centering Vise Grip, Mark-10
Click images to enlarge.
This G1106 self-centering vise can be used in a wide range of testing applications. Wide opening range (2"/50mm) accommodates large and unique samples. Rugged design permits testing up to 500 lbF (2,500 N). Smooth removable jaws can be field-modified to improve sample gripping characteristics as required for pull testing applications.

Use this grip with a choice of test stand and force gauge to create a complete testing system.

Replaces Model G1070.

Features

  • Maximum tension force: 500 lbF (2,500 N)
  • Removable jaws
  • Self-centering design
  • Ergonomic lever, smooth operation
  • Weight: 3.00 lb [1.36 kg]

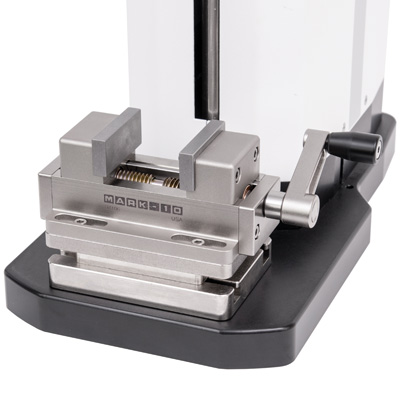

  • Mounts directly to the following test stands: ESM303, ESM1500 (when ordered with optional AC1055 mounting plate) ES30, TSC1000, TSF. Also compatible with ES10/ES20 when ordered with optional AC1060 mounting plate.

G1106 - In the box

G1106 Self-centering Vise Grip, Mark-10The G1106 vise is shipped as shown at left, and includes the following accessories:

(1) Vise assembly
(1) Test stand adapter plate
(8) #10-32 mounting screws

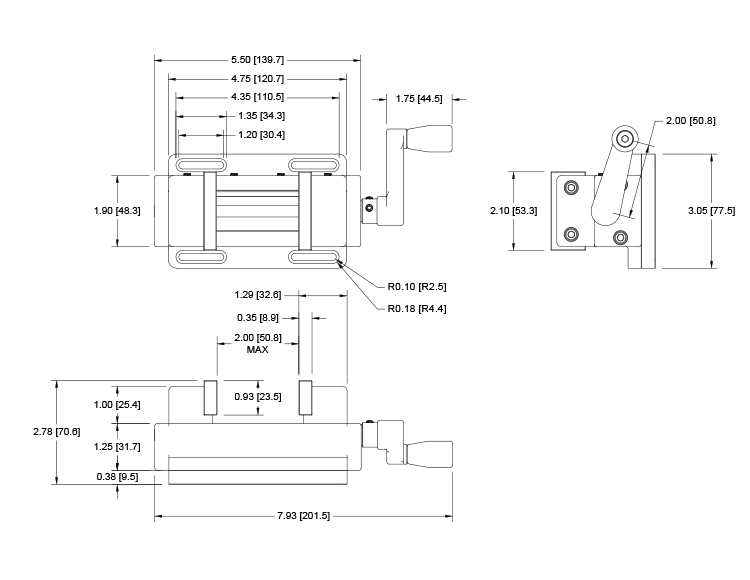

Dimensions
