G1104 Flip Cap Pull Grip

Made in USA
G1104 - Flip Cap Pull Grip
Click images to enlarge.

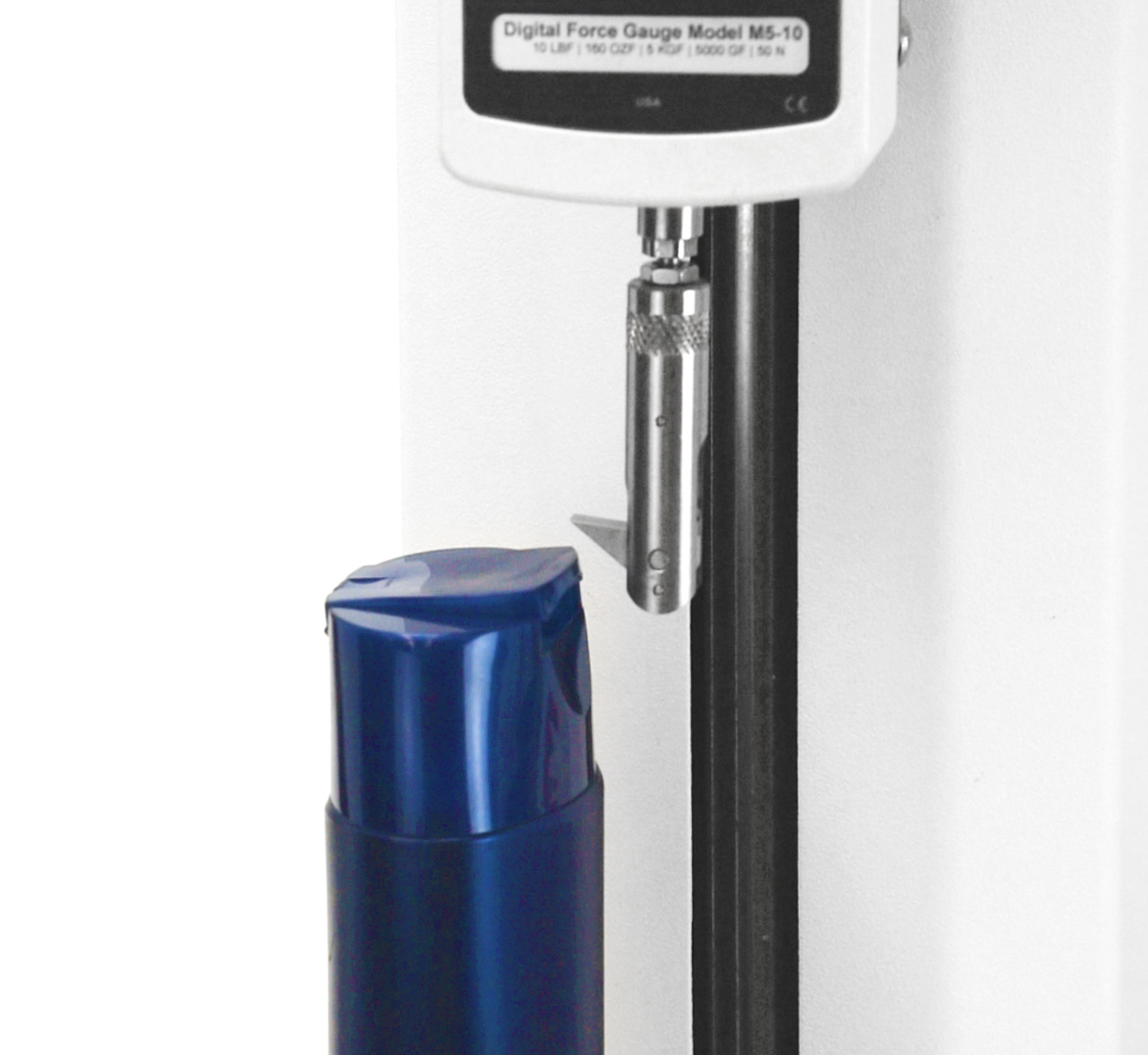

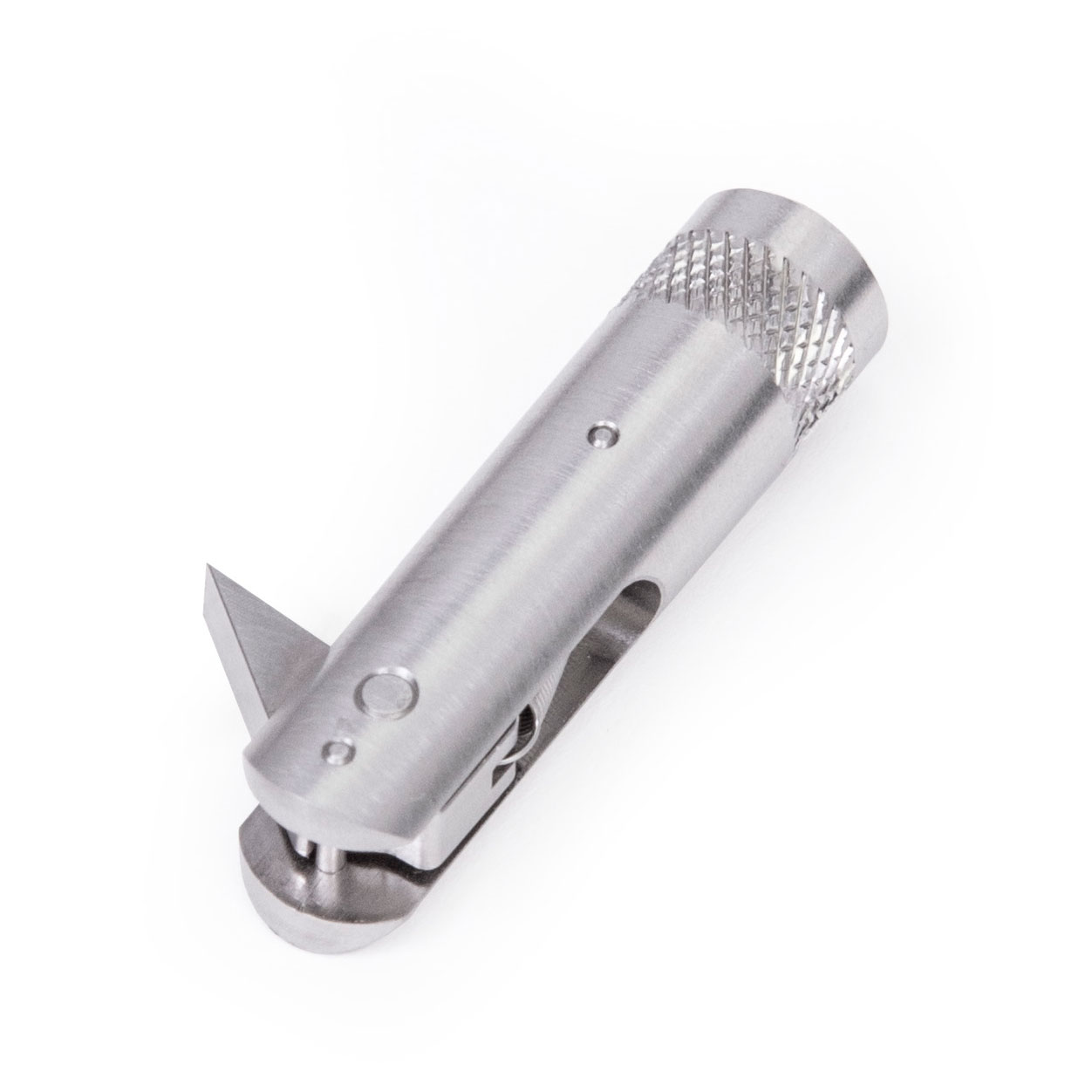

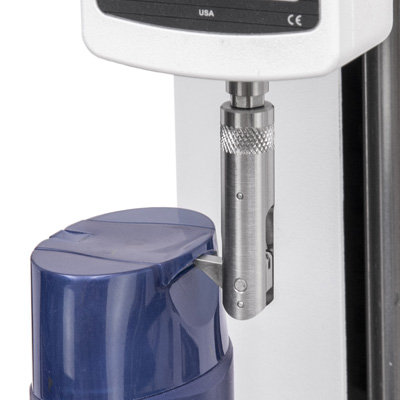

Designed to engage the tab on a flip cap for pull-off force measurements. A spring-loaded hook retracts as it is lowered into the starting position, then snaps into place below the tab.

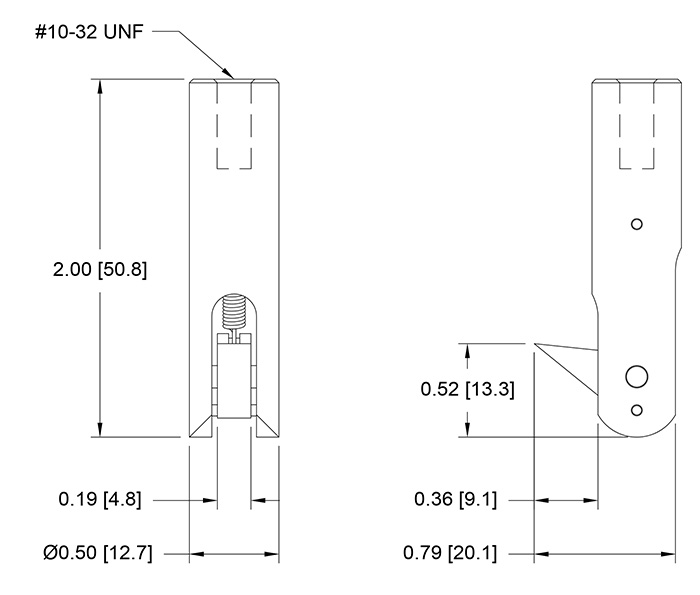

G1104 Flip Cap Pull Grip Dimensional Drawing

Specifications

Capacity20 lbF (100 N)
Weight0.10 lbs (0.04 kg)
Includes#10-32 M/M stud with jam nuts

Dimensions

Downloads

Buy Now

Item Description Price
Flip cap pull grip
$150.00
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
Unavailable
