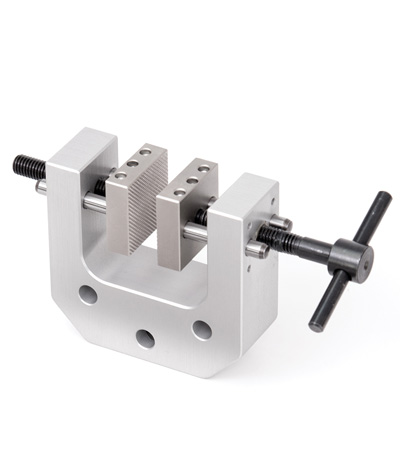

G1101 Parallel Jaw / Vise-Action Grip, Medium

G1101 is a universal solution for pull and tensile testing of a wide range of sample materials and sizes.
Click images to enlarge.
This grip is ideal for general tensile and pull testing applications up to 200 lbF (1,000 N). Pyramidal jaw faces and generous clearance effectively secure a wide range of sample materials and sizes.

Extended jaw lengths are available, to accommodate larger samples.

Includes integrated eye end mounting, and requires an eye end adapter to mount to force gauges or force sensors, and test stands.

Specifications

Capacity200 lbF (1000 N)
Housing MaterialAluminum
Jaw MaterialHardened steel, 58 RC
Weight1 lb (0.5 kg)

Dimensions

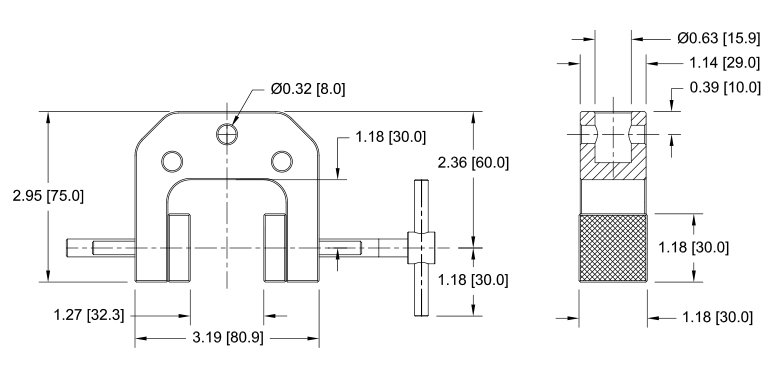

G1101 Parallel Jaw Dimensional Drawing
IN [MM]

Buy Now

Item Description Price
Parallel jaw grip, medium, 200 lb Capacity, Eye-End Mounting
$325.00

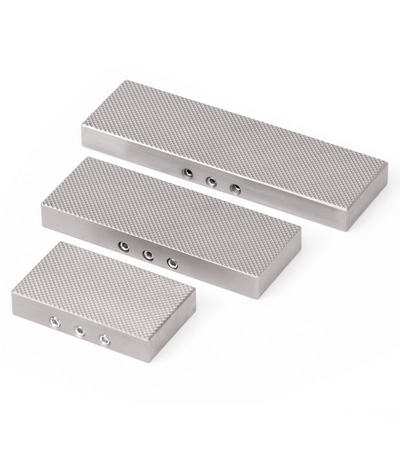

Accessories
AC1071-1
Jaws for G1101, 1.18” length, set of 2 (included with G1101)
$120.00
AC1071-2
Jaws for G1101, 1.97” length, set of 2
$180.00
AC1071-3
Jaws for G1101, 3.15” length, set of 2
$240.00
AC1071-4
Jaws for G1101, 3.94” length, set of 2
$280.00
