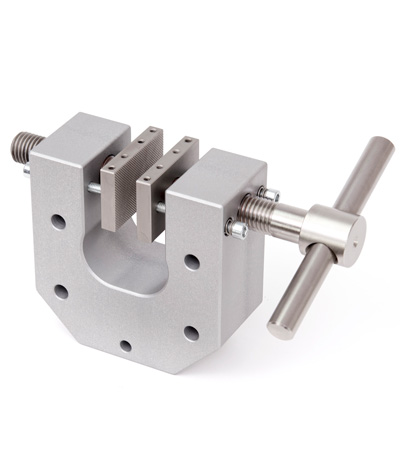

G1100 Parallel Jaw / Vise-Action Grip, Large

G1100 is a rugged solution for pull and tensile testing of a wide range of sample materials and sizes.
Click images to enlarge.
This rugged grip is ideal for general tensile and pull testing applications up to 2,000 lbF (10 kN). Pyramidal jaw faces and generous clearance effectively secure a wide range of sample materials and sizes.

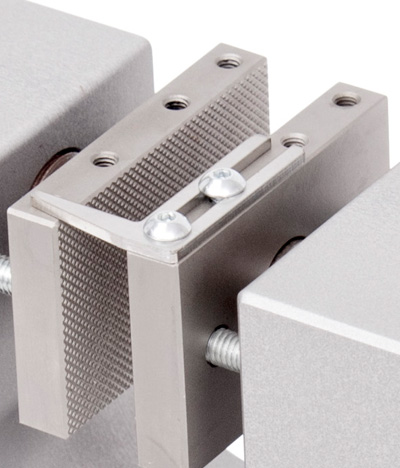

Includes an adjustable stop for consistent sample placement between the jaws.

Extended jaw lengths are available, to accommodate larger samples.

Includes integrated eye end mounting, and requires an eye end adapter to mount to force gauges or force sensors, and test stands.

Specifications

Capacity2,000 lbF (9 kN)
Housing MaterialAluminum
Jaw MaterialHardened steel, 58 RC
Weight5.9 lb (2.7 kg)

Dimensions

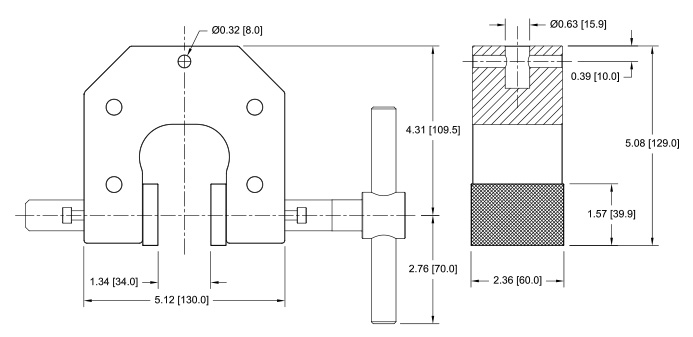

G1100 Parallel Jaw Dimensional Drawing
IN [MM]

Buy Now

Item Description Price
Parallel jaw grip, large, eye end
$595.00
Accessories
AC1070-1
Jaws for G1100, 2.36” length, set of 2 (included with G1100)
$285.00
AC1070-2

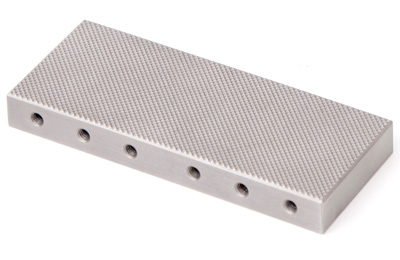

Jaws for G1100, 3.94” length, set of 2
$330.00
