G1098 ASTM D6195 Loop Tack Fixture

Made in USA
ASTM D6195 Loop Tack Fixture
Click images to enlarge.

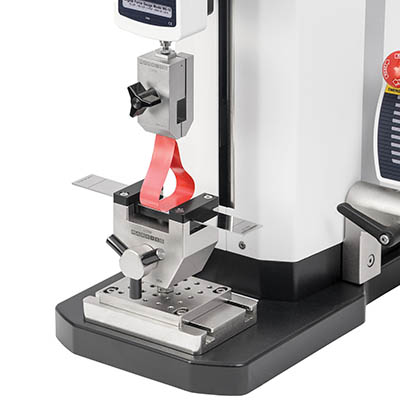

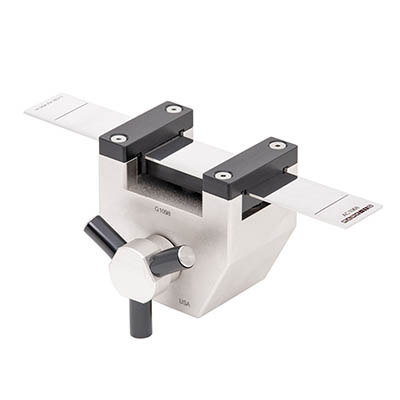

The G1098 force test stand accessories is designed for tack force testing of pressure-sensitive adhesives, in conformance with ASTM D6195 and related standards. A looped sample is loaded onto the test strip, and the closed end of the loop is secured by an upper grip (not included - suggested model: G1008). The test strip may be indexed in three positions, allowing for three tests to be performed between cleaning cycles. The strip is secured and released by a lever-operated clamp. An additional set of three test strips is available.

Features

  • For testing in according to ASTM D6195 and related standards

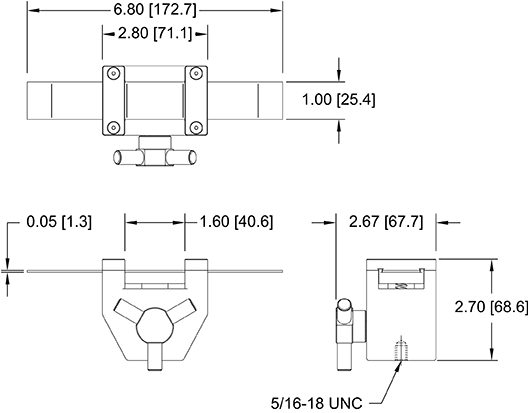

Dimensions

Related Products

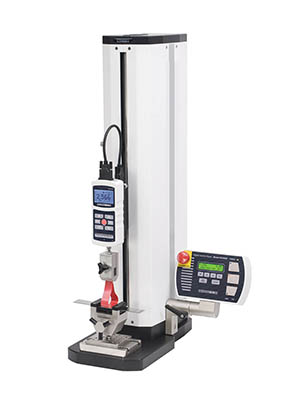

ESM303 Motorized Test Stand
Click image for more info
High Performance Motorized Test Stand, 300lb Capacity
- Adjustable Travel Speed, Standard - 0.5 - 13 in/min (13 - 330 mm/min), Optional - 0.02 - 45 in/min (0.5 - 1,100 mm/min)
- USB output of force vs. time or force vs. travel (with optional travel measurement)
ES30 test stand
Click image for more info
Precision Hand Wheel Test Stand
- 200lb Capacity
- Modular design: base may be removed and the stand may be used as part of a larger system. It also provides for alternative mounting
- Removable base plate with 25 #10-32 threaded holes for fixture mounting
Click image for more info
For Mounting of Grips to Gauge and Test Stands
- Allow for quick grip installation and removal, and prevent grip rotation. Mount to common test frames, load cells, and force gauges.
M5 Digital Force Gauge
Click image for more info
Advanced Digital Force Gauge - Model M5
- High-speed 7,000 Hz peak sampling rate
- 1,000-point data memory with statistics and outputs

Specifications

Capacity100 lbs / 500 N
Weight1.10 lbs / 0.5 N
Test strip materialT304 SS, per ASTM A666
Standard Accessories1 Test strip and 5/16-18 M/M stud with jam nuts

Buy Now

Item Description Price
ASTM D6195 Loop tack fixture, 5/16-18F
$825.00
Accessories

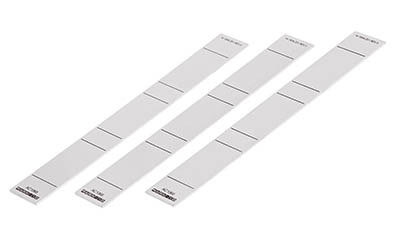

AC1068
Test strips for G1098, set of 3
$150.00
In stock
1 Week Lead Time (Estimated)
