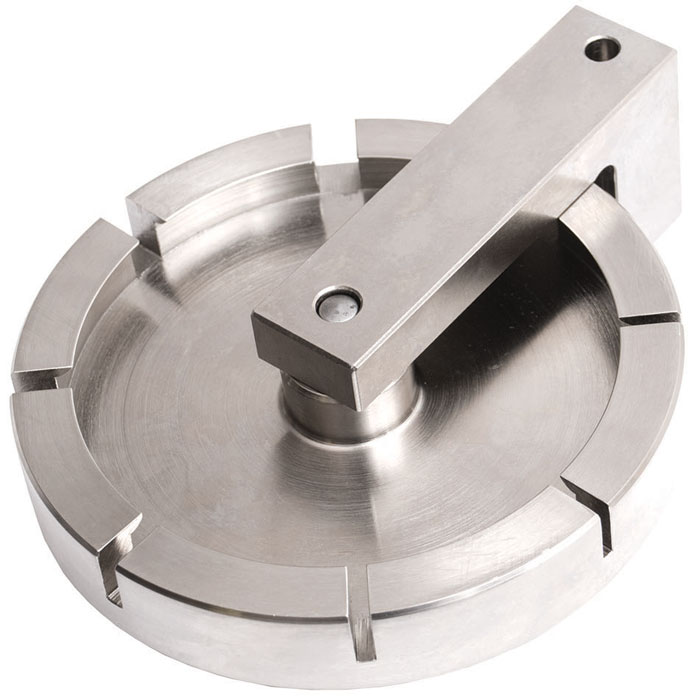

G1093 High Capacity Wire Terminal Grip

Click images to enlarge.
Accommodates wire diameters up to 0.46 (11.8)
Capacity of 2000 lb (900 Kg/9 kN)

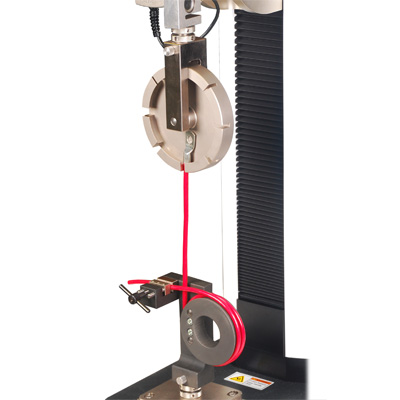

The grip secures wire terminals, cables, connectors, and other samples for high capacity wire terminal pull tests. Grooves of multiple sizes are provided to accommodate a wide range of wire diameters up to 0.46 in. (11.8 mm). The wheel is machineable for larger samples.

To operate, simply rotate the turret wheel to the desired size. For unique sample shapes and sizes, the wheel may be machined as required.

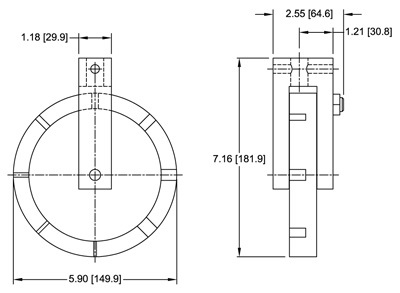

Dimensions

Specifications

Groove sizes0.08 (2.0), 0.12 (3.0), 0.16 (4.0), 0.20 (5.0), 0.24 (6.0), 0.31 (8.0), 0.39 (10.0), 0.46 (11.8)
Capacity2,000 lbF (9 kN)
Weight6.4 lb (2.9 kg)

Buy Now

Item Description Price
High Capacity Wire Terminal Grip
$1,350.00
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
Unavailable
