G1089 ISO 7886-1 Syringe Compression Fixture

Made in USA

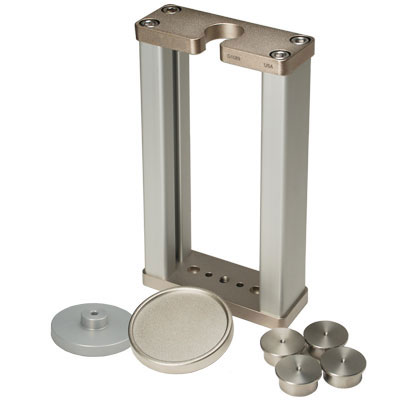

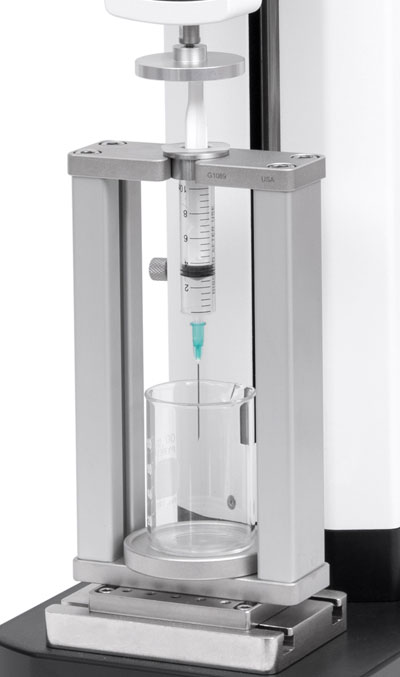

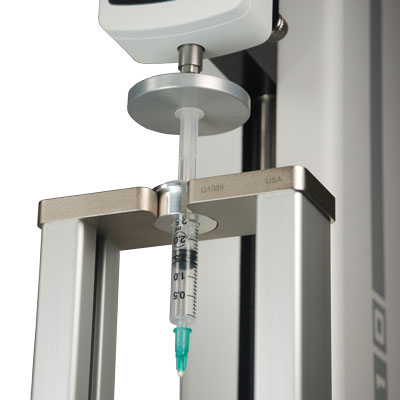

G1089 Syringe Compression Fixture is shown in a typical application mounted to a motorized test stand with optional eye end adapter.
Click images to enlarge.
The G1089 fixture is designed to test compression force of a syringe plunger, as per ISO 7886-1 and other relevant standards. Four blank stainless steel inserts are included, and may be drilled in the field to accommodate various diameter barrels. When used with appropriate instruments, such as an ESM303 test stand and Series 7 force gauge, initial and secondary peaks may be captured, as well as average force over a period of time.

Features

  • Secures a syringe assembly for plunger compression force testing
  • Replaceable inserts, may be drilled in the field up to 0.85 in (21.6 mm) dia.
  • Removable cup tray

Dimensions

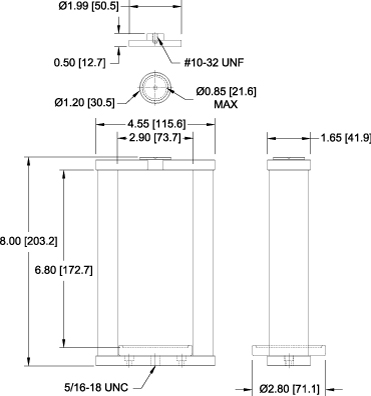

Syringe Compression
IN [MM]

Specifications

Capactiy100 lbF / 500 N
MaterialFixture: Nickel-plated aluminum upper and lower brackets, anodized aluminum upright supports
Cup plate: Nickel-plated aluminum
Replaceable inserts: Stainless steel
Compression plate: Anodized aluminum
WeightFixture, including cup plate and one insert: 1.89 lb (0.86 kg)
Compression plate: 0.08 lb (0.04 kg)

Related Products

Click image for more info
For Mounting of Grips to Gauge and Test Stands
- Allow for quick grip installation and removal, and prevent grip rotation. Mount to common test frames, load cells, and force gauges.

Buy Now

Item Description Price
Syringe Compression Fixture
$1,135.00
Accessories
AC1053
Set of 4 blanks for G1089 syringe fixture
$175.00
In stock
1 Week Lead Time (Estimated)
