G1087 High Capacity Compression Plates

Click images to enlarge.

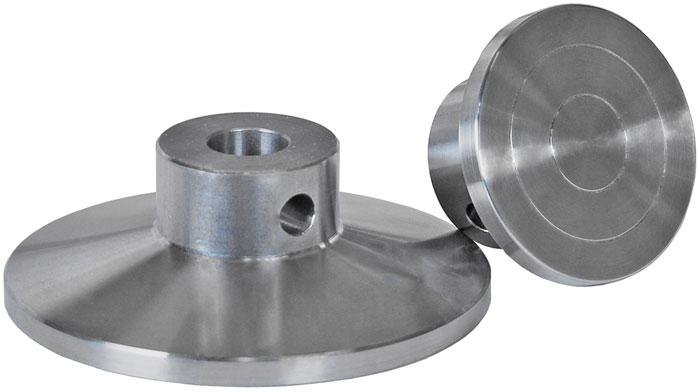

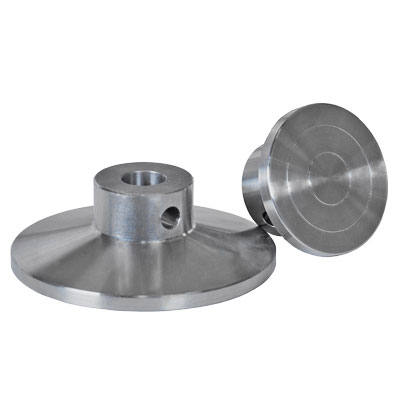

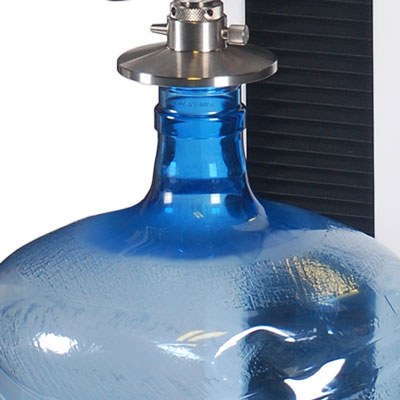

These stainless steel compression plates are ideal for spring, top load, and other compression tests. The plates include an integrated eye end, and can attach to force gauges, load cells, and test stands.

Available Models

ModelCapacityWeightMaterial
G10872,000 lbF (9 kN)1.50 lbs (0.68 kg)303 SS
G1087-12,000 lbF (9 kN)0.63 lbs (0.29 kg)303 SS

Dimensions

G1087 / G1087-1 Compression Plate Dimensional Drawing
Model⌀AB
G10873.78" (96.0 mm)1.28" (32.5 mm)
G1087-12.20" (55.9 mm)1.18" (30.0 mm)
