G1085 Adjustable Dual Roller Grip

Click images to enlarge.

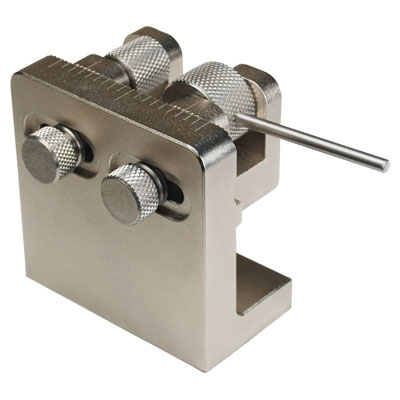

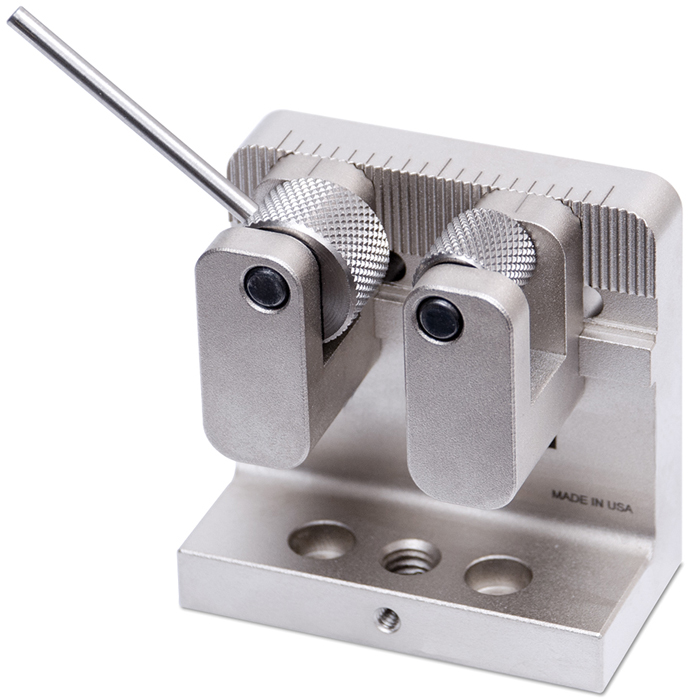

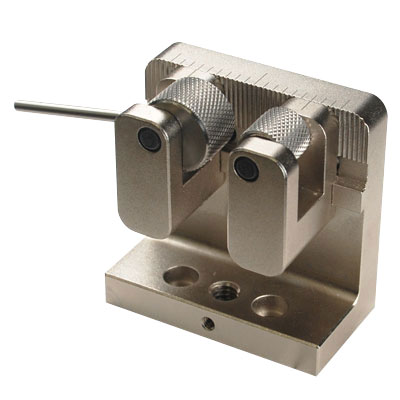

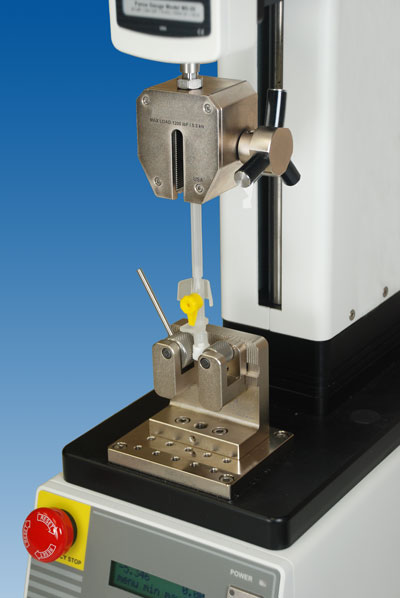

This cam grip secures the ends of tubing, cables, and odd shaped samples for pull testing applications. Engaging and disengaging samples is quick and easy, with a side slot for sample insertion and serrated steel rollers. The rollers can be repositioned to the desired spacing, accommodating a broad range of sample widths up to 1" (25 mm).

Specifications

Capactiy200 lbF (1000 N)
Weight0.51 lbs (0.23 kg)
Thread Size#5/16-18

Dimensions

Adjustable Dual Roller Grip
CapacityWeightABCDEFG
200 lbF
1,000 N
0.51 lb
0.23 kg
2.40 in
61.10 mm
2.45 in
62.20 mm
1.30 in
33.00 mm
0 - 1.00 in
0 - 25.40 mm
0.34 in
8.60 mm
1.20 in
30.50 mm
1.78 in
45.30 mm

Buy Now

Item Description Price
Adjustable dual roller grip, 200 lb / 100 Kg / 1000 N Capacity
$395.00
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
Unavailable
