G1061 Self-Tightening Wedge Grip

Made in USA
G1061 Wedge Grips
Click images to enlarge.

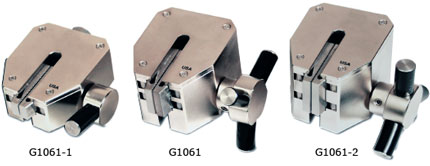

G1061 Wedge Grip4 Models Available
G1061-1 Width: .375" (9.5mm) Capacity: 200 lbs
G1061 Width: .75" (19mm) Capacity: 1200 lbs
G1061-2 Width: 1" (25.4mm) Capacity: 2000 lbs
G1061-3 Width: 1" (25.4mm) Capacity: 50 lbs

These heavy duty self-tightening grips with a capacity range up to 2000 lbf (1 kN to 10 kN) are ideal for tensile testing of a wide range of materials. The serrated steel jaws ride on rollers instead of sliding along the surface of the housing, as with conventional wedge grips. This unique design prevents jamming and improves gripping characteristics.

G1061-3 features rubber coated jaws for gripping film and paper.

The spring loaded jaws open with a highly ergonomic rack and pinion lever mechanism. The smooth and easy operation of the lever greatly reduces operator hand fatigue.

Use these grips with a test stand and force gauge to create a complete testing system.

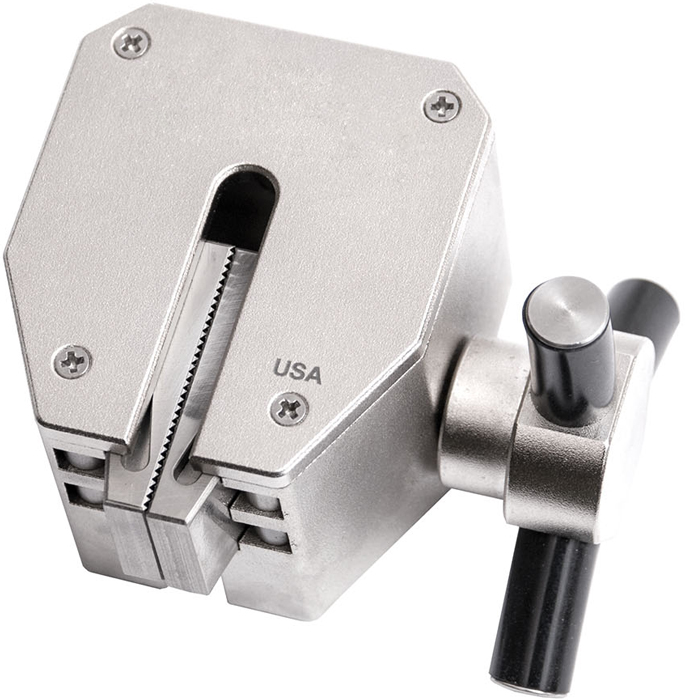

G1061 Wedge Grip

Features

  • 3 capacities / 4 models available
  • Unique jam-free design
  • Fully enclosed
  • Hardened, serrated steel jaw faces, or rubber jaw faces for film and paper tensile testing applications
  • Thru slot for samples of unlimited width
  • Weight: G1061-1: 0.5 lb [0.23 kg]
    G1061: 0.8 lb [0.36 kg]
    G1061-2: 0.9 lb [0.41 kg]
  • Jaw material / hardness: 416 SS / 43 RC
    (G1061-3, Neoprene Rubber, Harness of Shore A 70)

G1061-3 features rubber coated jaws for gripping film and paper

G1061-3 with rubber coated jaws

Specifications

g1061 specifications

Related Products

Click image for more info
Miniature Wedge Grip
- 100 lb [500 N] capacity
- Thru slot for samples of unlimited width

Buy Now

Item Description Price
Wedge Grip with .375" Wide Jaws, 200 lb cap.
$589.00
Wedge Grip with .75" Wide Jaws, 1200 lb cap.
$655.50
Wedge Grip with 1" Wide Jaws, 2000 lb cap.
$717.25
Wedge Grip with 1" Wide Rubber Coated Jaws, 50 lb cap.
$717.25
Accessories
Swivel adapter, 5/16-18, 500 lb / 250 kg capacity
$70.00
