G1046 Pneumatic Film & Paper Grip

G1046 Pneumatic Film & Paper Grip
Click images to enlarge.

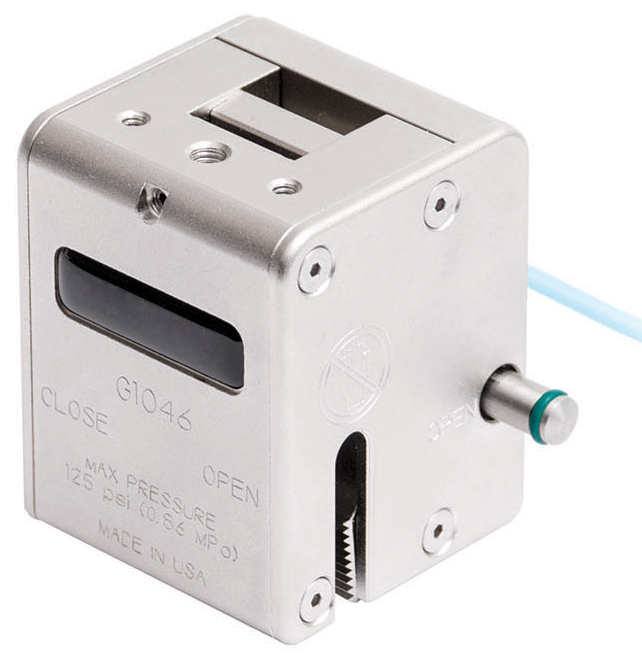

G1046 mounted to force gauge and test stand for 180 degree peel testingThis fully enclosed, air-powered grip is ideal for seal strength testing of packaging, elongation testing of various materials, and other tensile testing requirements. Serrated interlocking jaws effectively grip samples for up to 100 lb of force. The grip features an industry-unique integrated open/close valve for quick sample engagement and disengagement, an added benefit for repetitive applications. An air connection kit, consisting of air tubing and fittings, is available as an option. Use a pair of these pneumatic grips with a force gauge and a test stand to create a complete testing system.

Features

  • Integrated open/close valve
  • Fully enclosed design for safety

Dimensions

g1046 dimensions
Dimension A: 0 - 0.13 inches / 0 - 3.3mm

Optional Equipment

Air connection kit
Consists of a complete set of components needed to connect two pneumatic grips:

A. Coiled tubing, 1/8" OD, 1/16" ID, 8" retracted length (qty. 2)
B. Straight tubing, 1/8" OD, 1/16" ID, 5' length (qty. 1)
C. Y-splitter (qty. 1)
D. Elbow fitting, tubing to #10-32M (qty. 1)
E. Straight fitting, tubing to #10-32M (qty. 1)
F. Thread adapter, #10-32F to 1/4" NPT M (qty. 1)
G. Adhesive-backed guide (qty. 4)

Air Hose Kit for G1046

Specifications

Capacity100 lbF @ 100 PSI / 500 N @ 0.86 MPa
Weight0.58 lb /0.26 kg
Max. pressure PSI [MPa]125 psi / 0.86 MPa
Air input thread#10-32 UNF

Buy Now

Item Description Price
Pneumatic film and paper grip (1)
$600.00
Connection kit for G1046, 1 kit works for 2 grips
$150.00
