G1023 Bottle / Round Sample Grip

Click images to enlarge.

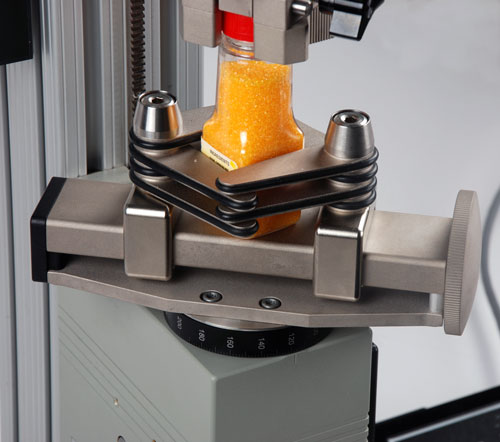

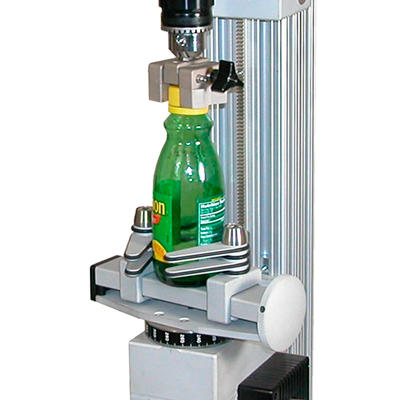

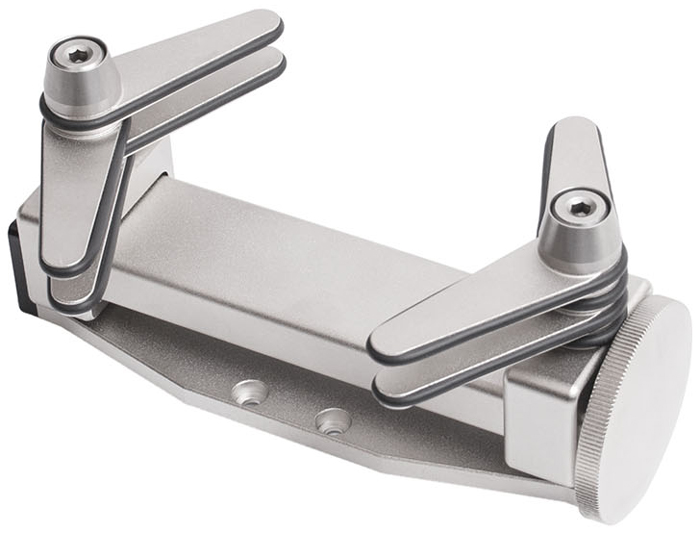

This unique grip is designed for securing bottles, containers, and other items for closure torque testing. Eight rubber edged gripping arms effectively grip a wide range of sample shapes and sizes and can be individually positioned at angles of up to 180°. The G1023 mounts directly to the TST, TSTH, TSTM, and TSTMH Torque Measurement Test Stands. The grip may also be mounted to a force measurement stand to secure closures in such applications as top load testing.

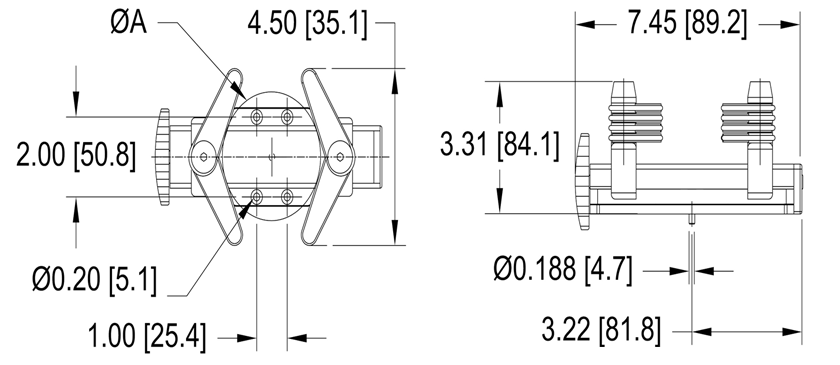

Dimensions

Related Products

G1058 Universal Cap Grip
Click image for more info
Universal Cap Grip

Specifications

Capacity100 in-lbs (11.3 N-M)
Max Sample Diameter4.8" (122 mm)
Weight1.5 lbs

Buy Now

Item Description Price
G1023 Bottle Grip
$500.00
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
Unavailable
