G1076 Wire Terminal Grip

Made in USA

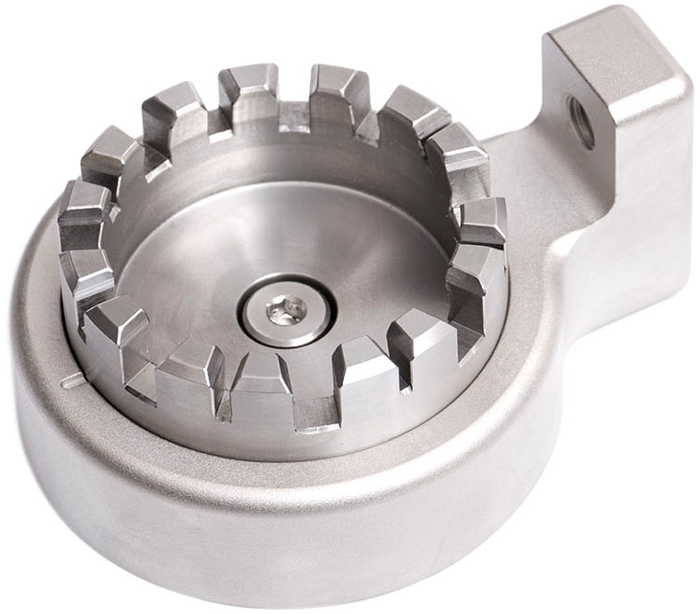

Wire Terminal Grip - G1076
Click images to enlarge.
Capacity: 500 lbF (2500 N)

The G1076 is designed for securing wire terminals, cables, connectors, and other samples for pull testing. Grooves of multiple sizes are provided to accommodate a wide range of wire diameters up to 0.25 in. (6.3 mm). Simply rotate the turret wheel to the desired size. Integrated magnets hold the wheel in place to help prevent accidental rotation to a different sized groove.

Use this grip with the G1002 dual roller grip, and choice of test stands and force gauges to create a complete terminal and crimp testing system.

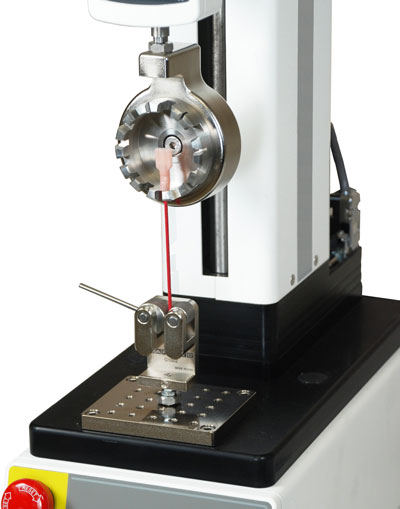

Wire Terminal Grip - G1076 Mounted on the ESM303 Test stand

Features

  • Wire diameter range: 0 - 0.25 in (6.3 mm)
  • Weight: 1.0 lb (0.45 kg)
  • Includes a 5/16-18M to #10-32F thread adapter and #10-32 M/M stud with jam nuts.
  • Groove sizes [IN(MM)]: 0.03 (0.7), 0.04 (1.0), 0.06 (1.5), 0.08 (2.0), 0.09 (2.3), 0.11 (2.8), 0.12 (3.0), 0.14 (3.5), 0.15 (3.8), 0.17 (4.3), 0.18 (4.5), 0.20 (5.1), 0.21 (5.3), 0.23 (5.8), 0.25 (6.3)

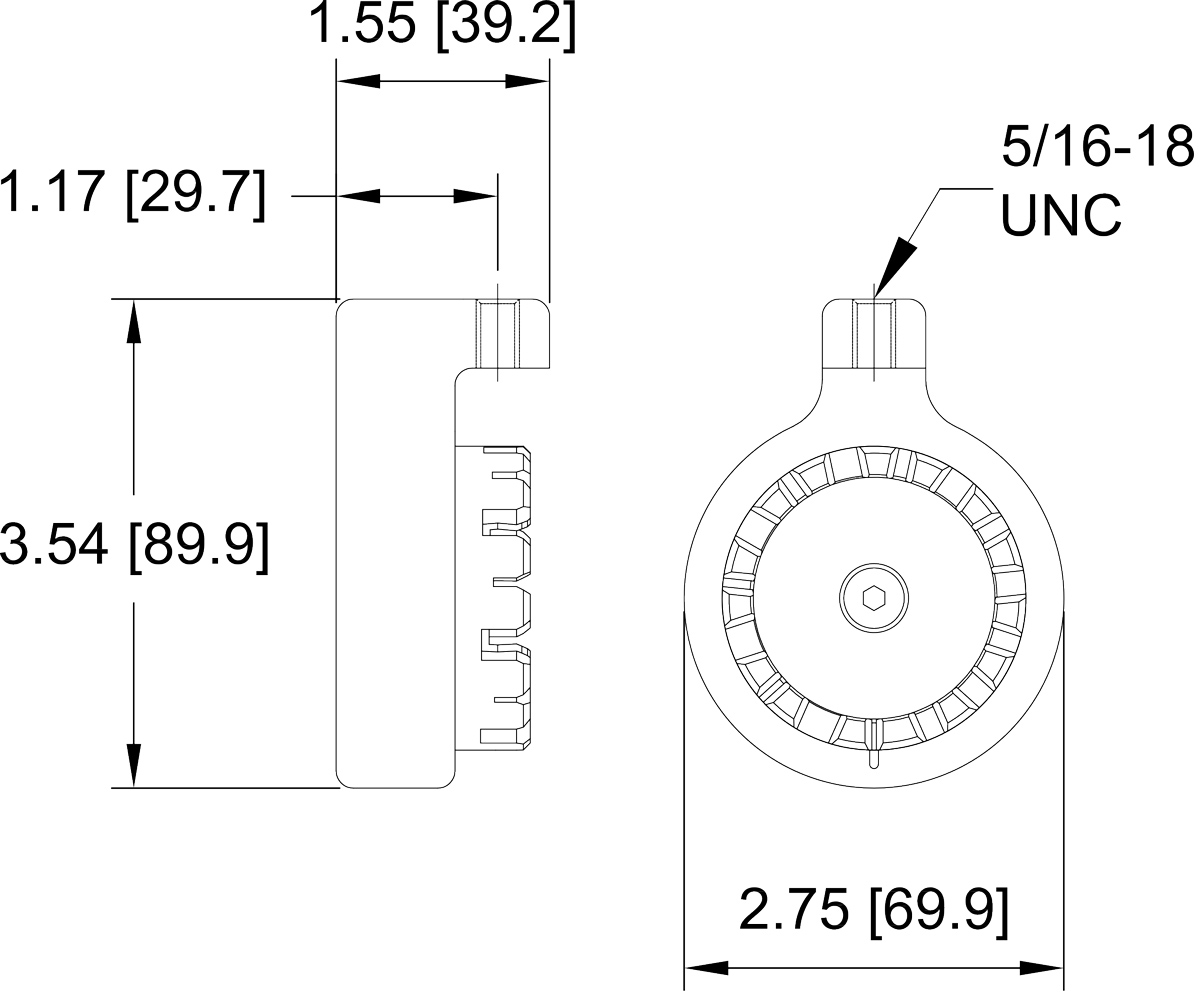

Dimensions

Related Products

M3 Digital Force Gauge
Click image for more info
Digital Force Gauge
- Includes traceable calibration certificate without data.
NIST traceable calibration certificate with data andISO-17025 certificate option is available
- High-speed 2,000 Hz sampling rate
M4 DIgital Force Gauge
Click image for more info
Digital Force Gauge with Output
- USB, RS-232, Mitutoyo, and analog outputs
- 3,000 Hz peak sampling rate
M5 Digital Force Gauge
Click image for more info
Advanced Digital Force Gauge - Model M5
- High-speed 7,000 Hz peak sampling rate
- 1,000-point data memory with statistics and outputs

Buy Now

Item Description Price
Wire terminal grip, 0 - 0.25 inches, Capacity: 500 lbF (2500 N)
$495.00
Accessories
Ring terminal fixture insert for WT3-200/1/M/G1076
$220.00
WT3003
Machinable blank terminal fixture insert
$200.00
Swivel adapter, 5/16-18, 500 lb / 250 kg capacity
$70.00
In stock
1 Week Lead Time (Estimated)
