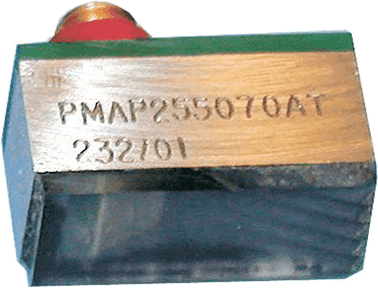

Mini Angle Beam Potted - Mini Transducers are single element, designed with stainless steel housing for durability. They are available in a variety of fixed angles, including 45°, 60° or 70°, to produce the required shear waves. These transducers are used in conjunction with the ‘Trigonometry’ function of the gauge.
| Damping | Medium |
| Connector Type | Side microdot |
| Suitable for Measuring | FX70 and FX80 series flaw detectors (previously known as DFX-7 and DFX-8 series). |
| Probe Diameter | 3/16 inch (4.7625 mm) |
| Part Number | Megahertz | Angle |
|---|---|---|
| MMAP185045 | 5.00 | 45° |
| MMAP185060 | 5.00 | 60° |
| MMAP185070 | 5.00 | 70° |
| MMAP181045 | 10.00 | 45° |
| MMAP181060 | 10.00 | 60° |
| MMAP181070 | 10.00 | 70° |
