Towcell Towbar Load Cell, Tow Hitch Dynamometer

Made in UK

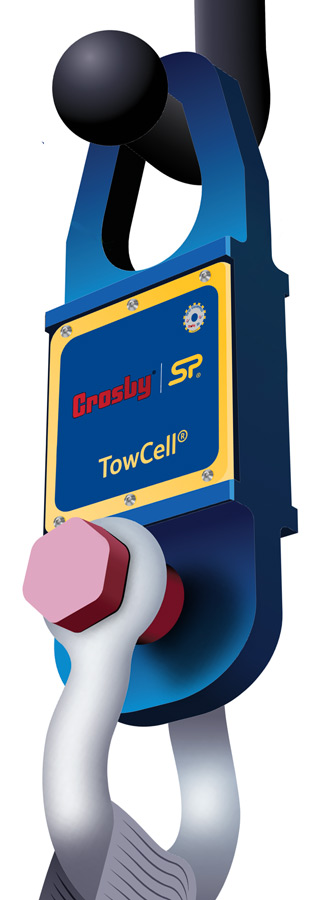

Towcell Towbar tow hitch load cell
Click images to enlarge.
towcell tow hitch dynamometerThe Towcell® wireless load cell is designed to monitor a vehicle's towed load up to 25 kN / 2.8 tonnes. Typical applications include emergency services, salvage, off-road and much more. The Towcell® allows for increased safety and the avoidance of costly overloads by providing real-time monitoring of tensile towing forces during recovery, clearance and salvage efforts. The Towcell® is rugged, lightweight, compact and can be installed, with ease, onto any tow bar, whether it’s a standard 52mm or 2” ball or pin assembly and is ready to use in seconds.

Modeled after Straightpoint’s best-selling Radiolink plus, the Towcell® is constructed of high-quality aircraft-grade aluminum, featuring an advanced internal design structure providing the product with an unrivaled strength to weight ratio, and allowing for the use of a separate internal sealed enclosure. This internal sealed enclosure provides the internal electronic components with IP67/NEMA6 waterproof environmental protection even with the battery cover plate missing.

Easily sourced AA alkaline batteries offer a massive battery life of 500 hours, the Towcell® utilizes an unbreakable internal antenna. Towcell® loads are displayed via Bluetooth SW-HHP App for Android and iOS devices.


  • Supplied with Proof Test Certificate
  • Unique design to fit any standard 2” tow-hitch
  • Bluetooth Output
  • 100m or 328ft Wireless Range
  • IP67/NEMA6 Waterproof
  • battery life of 500hrs
  • 2 year warranty
straightpoint towcell

Related Products

Click image for more info
Software for SP Products with Bluetooth Option
RLP Radiolink Straightpoint Crosby Loadlink with SW-HHP
Click image for more info
Wireless Dynamometer Tension Loadcell - Straightpoint RLP
- 2.4 GHz Wireless with Industry Leading Range (700 meters / 2300 feet)


Capacity25 kN / 2.8 Tonnes
Resolution0.01 kN / 0.001 Tonnes
Accuracy+/- 0.1% FS
Weight1.4 Kg / 3lbs
Safety Factor5:1
Battery Type4x AA
Battery Life500 Hours
Operating Temp-10°c to +50°c / 14˚ to 122˚F
Wireless Range100 metres / 328 feet
Data Rate50Hz
DimensionsRefer to PDF Brochure
