KXB Warp Tension Meter

Made in Germany
KXB Warp Tension Meter
Click images to enlarge.

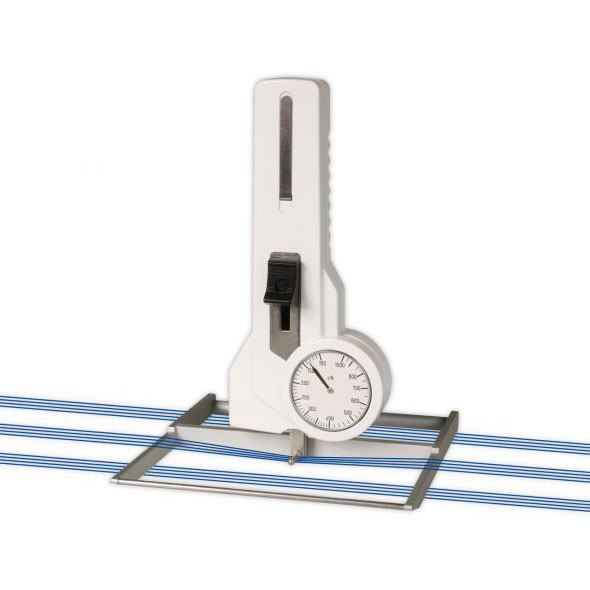

The KXB Warp Tension Meter is designed for measuring tension on multiple ends of a warp. A reference frame makes it easy to scoop up the selected number of ends for measurement and keeps the unit perpendicular while it rests on the warp. K10, K30 & EX ranges are supplied with a 10 mm sensing pin. For the 200 and 500 range codes select either a 17 or 34 mm sensing pin.

Features

  • Width of the sensing pin 10 mm (17mm and 34 mm optionally available)
  • Finger Support: We recommend mounting a finger support for higher tension ranges
  • Roller shifting mechanism ensure easy acquisition of the running material
  • Large reference frame (15 x 17 cm) is placed on the warp threads allowing the safest and most accurate mesaurements possible.
  • Supplied in foam-fitted hard-plastic carrying case

Tension Ranges

ModelRangeSensing Pin Length
KXB-K1020-100 g10mm
KXB-K3020-300 g10mm
KXB-EX100-1000 g10mm
KXB-200200-2000 g10mm
KXB-500500-5000 g10mm

KXB Operation

We recommend always measuring the same number of ends, such as 5 or 10 ends (repeat of pattern) or only a single end at a time. During measurement make sure that the ends are not pulled or pressed out of their alignment.

Options

Memory Pointer (M)

Designed to retain the peak value as tensions fluctuate. Manually reset by using the knob located in the center of the dial.

Complete Kit

The KXB Tension Meter is supplied as a complete kit including meter and instruction manual in a foam-fitted hard-plastic carrying case.

Downloads

Specifications

Accuracy± 1% of full scale or
± 1 graduation mark on scale
Diameter of Scale41 mm
Housing MaterialDie-cast aluminum
Temperature range50 - 113°F (10 - 45°C)
Air humidity85 % RH, max.
Housing dimensions(L x W x H)7.5 x 3.3 x 1.8 in(188 x 85 x 45 mm)
Weight, net (gross)1 lbs (2 lbs)
