HPE-III Bareiss HPE Digital Durometer

Made in Germany

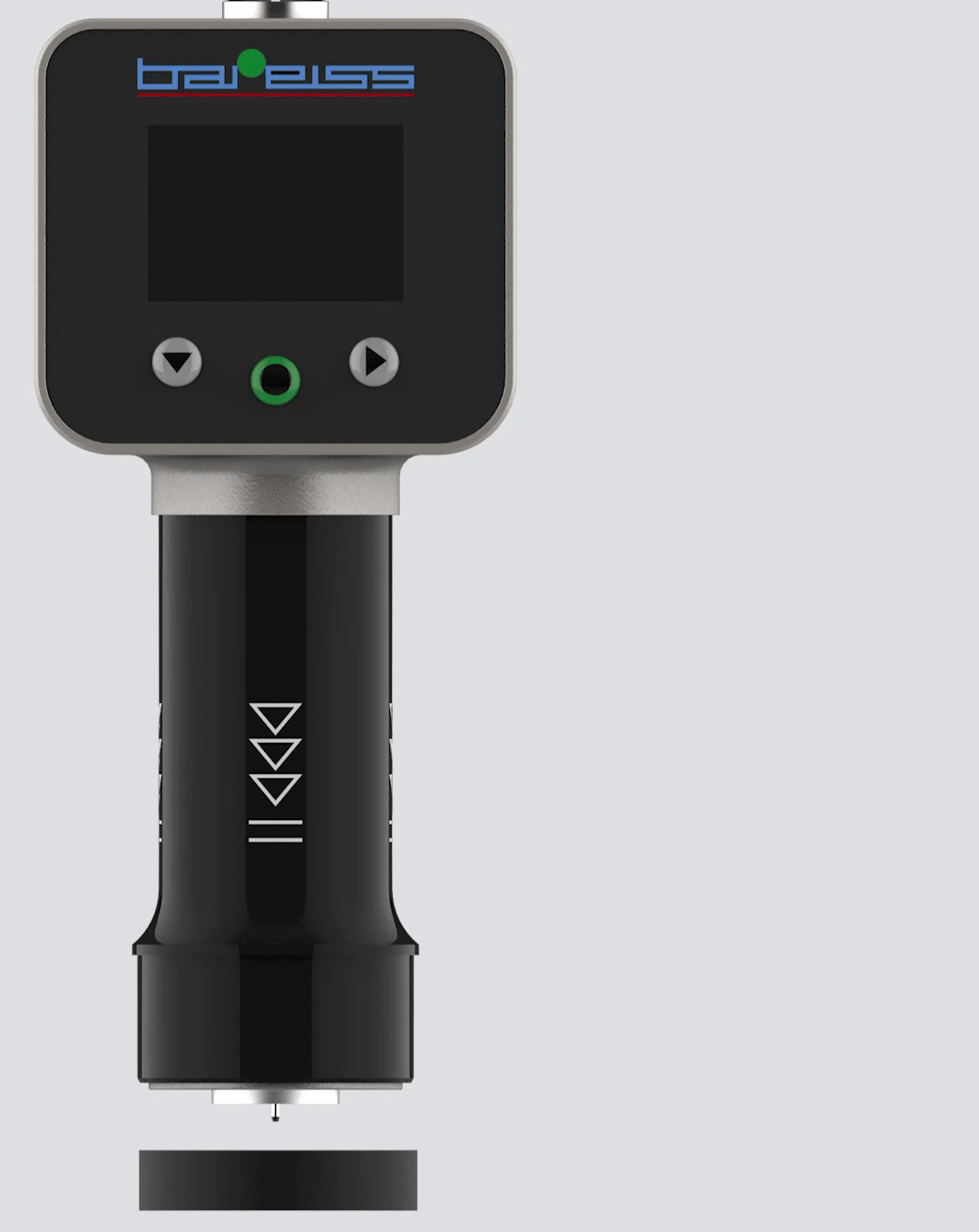

Bareis HPE iii Digital Durometer
Click images to enlarge.
The Bareiss HPE Series III durometer is the latest generation of the HPE offering many new features while providing the same precision hardness measurements. Historical measurements can be displayed for the hardness values and date/time when each measurement was taken. Standard features include a Large LCD display, USB output, and a patented hand grip for achieving correct measuring angle and pressure.

Features

  • Conforms with ASTM, DIN, and ISO Standards
  • Built-In timer function
  • Factory Calibration Certificate Included, DAkkS Traceable Certifcate Optional

HPE-iii Operation Video

Material Guide

Measurement Method Materials Standards Material Thickness Min. [in, (mm)]
Shore A Soft rubber, elastomers, natural rubber products, neoprene, cast resin, polyester, soft PVC, leather, pressure rollers, etc. DIN EN ISO 868 0.157 (4)
ISO 48-4 (former DIN ISO 7619), ASTM D 2240, JIS K 7312 0.236 (6)
Shore D Hard rubber, plastics, acrylic glass, polystyrene, rigid thermoplastics, formica, printing rollers, vinyl plates, cellulose acetate, etc. DIN EN ISO 868 0.157 (4)
ISO 48-4 (former DIN ISO 7619), ASTM D 2240, JIS K 7312 0.236 (6)
Shore 00 Cellular rubber, foam rubber, silicone ASTM D 2240 0.236 (6)
Fff Consistency of flesh
Asker C Soft rubber, elastomers, natural rubber products, neoprene, cast resin, polyester, soft PVC, leather, pressure pollers, etc. SRIS 0101 0.236 (6)
Shore L/c Foam, soft elastic materials, uphol-stery, steering wheels ISO 48-4 (former DIN ISO 7619), ASTM D 2240 0.236 (6)
Shore 000S Cellular rubber, foam rubber, silicone ASTM D 2240 0.236 (6)
Shore L Foam, soft elastic materials, uphol-stery, steering wheels/td> ISO 48-4 (former DIN ISO 7619), ASTM D 2240 0.236 (6)
Shore C Plastics, medium hard rubber ASTM D 2240 0.236 (6)
Shore AM Soft rubber, elastomers, natural rubber products, neoprene, cast resin, polyester, soft PVC, leather, pressure pollers, etc. ISO 48-4 (former DIN ISO 7619) 0.049 (1.25)
Shore M Soft rubber, elastomers, natural rubber products, neoprene, cast resin, polyester, soft PVC, leather, pressure pollers, etc. ASTM D 2240 0.049 (1.25)

Related Products

Bareiss BS 61 II durometer test stand
Click image for more info
Durometer Test Stand - Lever Operated

Complete Kit

The HPE III is supplied with the durometer, test disk, USB output cable, and power adapter in a foam-fitted carrying case.

Dimensions
