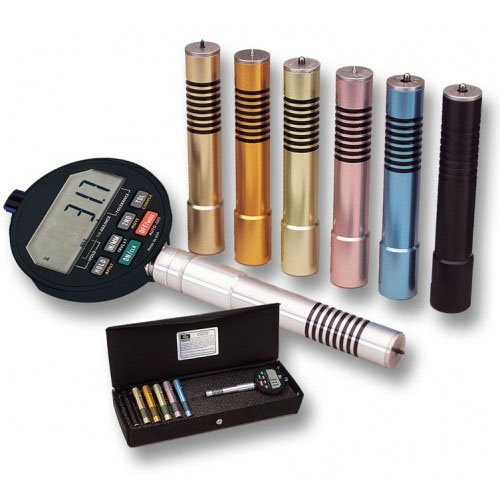

The Multi-Scale base kit consists of a digital display with a type A, D and OO durometer barrel. A complete kit is supplied with a digital display and type A, D, B, C, DO, O, OO, OOO durometer barrels.
Changing scales is accomplished by unscrewing one barrel and replacing it with another - no supplementary calibration or adjustments are necessary.
A test block, calibrated to the selected scale is also included. The block allows the user to perform quick functional checks on the instrument.
The indicator and barrels are made in the USA, and are calibrated to the ASTM-D2240 standard for durometer hardness testers.
- Digital Multi-Scale Durometer allows user to measure in a variety of scales with one guage.
- Includes NIST Calibration Certificate
|Measuring Range||0 - 100 units|
|Accuracy*||±1 durometer unit (A,B,C,D,E,O,DO)|
±2 durometer units (OO,OOO)
|Dimensions||2.25" x 6.125"H|
|* Note||per ASTM D 2240-05, Sect 9.3: It is accepted that durometer readings below 20 or above 90 are not considered reliable. It is suggested that readings in these ranges be omitted.|
The DD-DB1 "Smart" USB cable connects the durometer to a computer. The output of the SmartCable Keyboard is a standard USB 2.0 keyboard signal. Connecting the SmartCable Keyboard with its built-in keyboard wedge to a computer will allow the SmartCable to be identified as a keyboard device that can send data to any Microsoft Windows application - no software wedge required. The SmartCable Keyboard will make the gauge readings appear as if they were typed in using a standard keyboard - eliminates data collection errors. If you want to collect data into a Microsoft Excel spreadsheet, simply select the cell where you want the data to appear.
Multi-Scale Durometer Kit, Includes Digital Display with Type A, D, OO Barrels
Multi-Scale Durometer Kit, Includes Digital Display with Type A, B, C, D, DO, O, OO, OOO Barrels
220V AC Adapter for RX-DD / DD-100 / MTG
Rectangular Footer for Durometers with 1/2" Diameter Barrel, 41 x 19 mm
"Smart" USB Data Transfer Cable, Sends data to any Windows program with press of a button
