RX-DD-5 Digital Durometer with Adjustable Timer

Made in USA
RX-DD-5 Digital Durometer with Internal Adjustable Timer
Click images to enlarge.
Available Scales: A, D (ISO, DIN & JIS Scales also available, inquire)

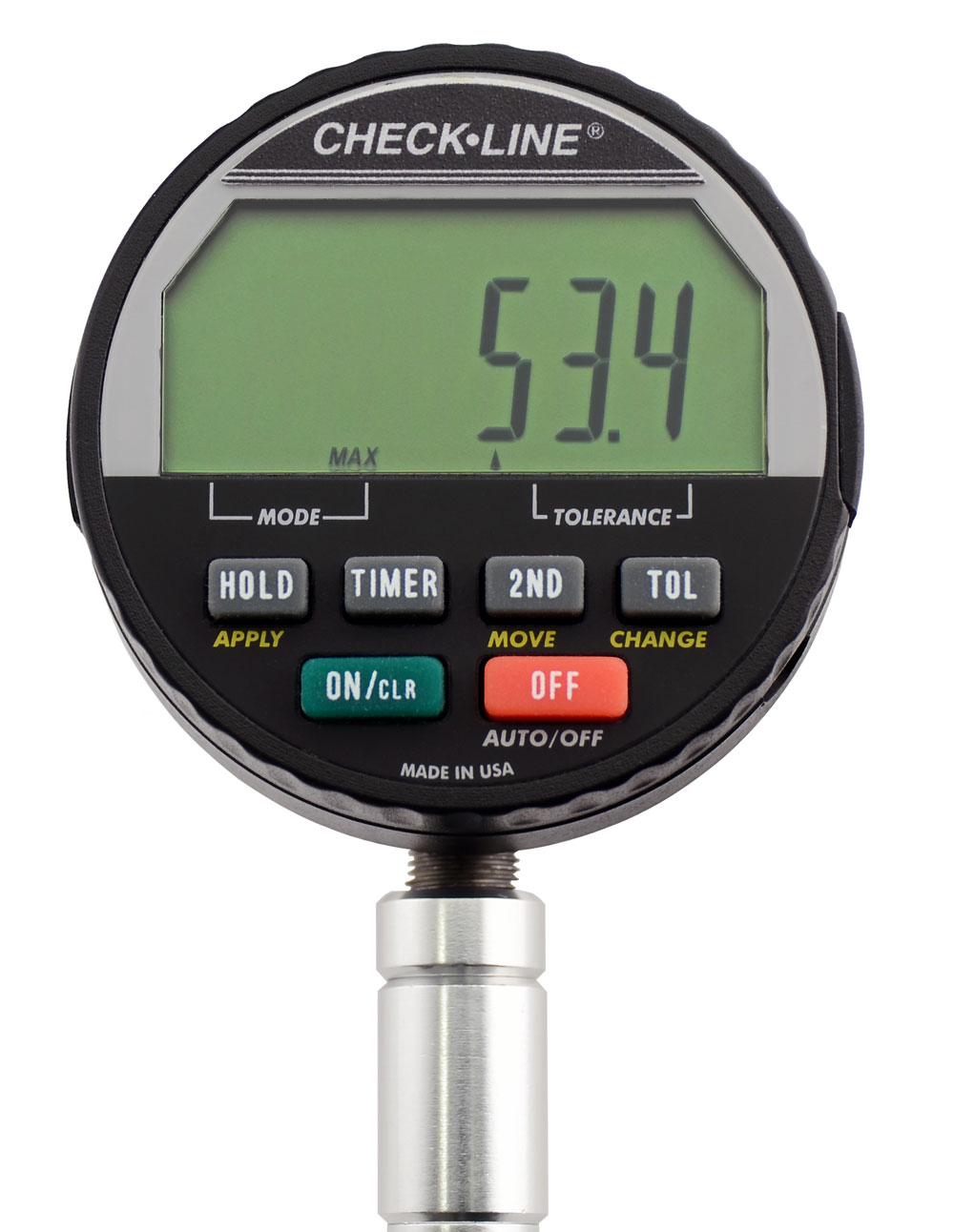

The RX-DD-5 digital durometer is the latest innovation for performing timed hardness testing. The RX-DD-5 is equipped with an adjustable timer and onscreen countdown that can be set to delay from 0-30 seconds. When enabled, the timer function will be automatically activated when the presser foot meets the test specimen. Up to 200 readings can be stored and viewed inside the durometer or downloaded through the USB port.

RX-DD-5 Operation

Features

  • Conforms to ASTM D-2240 (ISO, DIN and JIS Conformance Also Available)
  • Adjustable Measurement Timer with Onscreen Countdown
  • Store and View up to 200 Measurements
  • High and low buttons for setting tolerance limits
  • Holds reading until reset
  • Dial rotates up to 270°
  • Extra-Large Number Display
  • Download and Collect Data Using USB Smart Cable (Sold Separately)
  • Custom Made Carrying Case
  • Includes NIST Calibration Certificate
  • One Year Warranty

Specifications

Measruing Range0 - 100 Units
Resolution0.1 Units
Accuracy*±1 durometer unit (A,B,C,D,E,O,DO)
±2 durometer units (OO,OOO)
±4 durometer units (M)
Tolerance± 0.5 at "100" and -0 +1 at "0"
Power Supply(2) 3V CR-2450 Batteries
115V AC Adapter Included. 230V AC Adapter Optional
Mounting Thread5/16-40
Dimensions2.25" x 6.125"
Weight7.15 oz (202.69 grams)
Warranty1 year
* Noteper ASTM D 2240-05, Sect 9.3: It is accepted that durometer readings below 20 or above 90 are not considered reliable. It is suggested that readings in these ranges be omitted.

Complete Kit

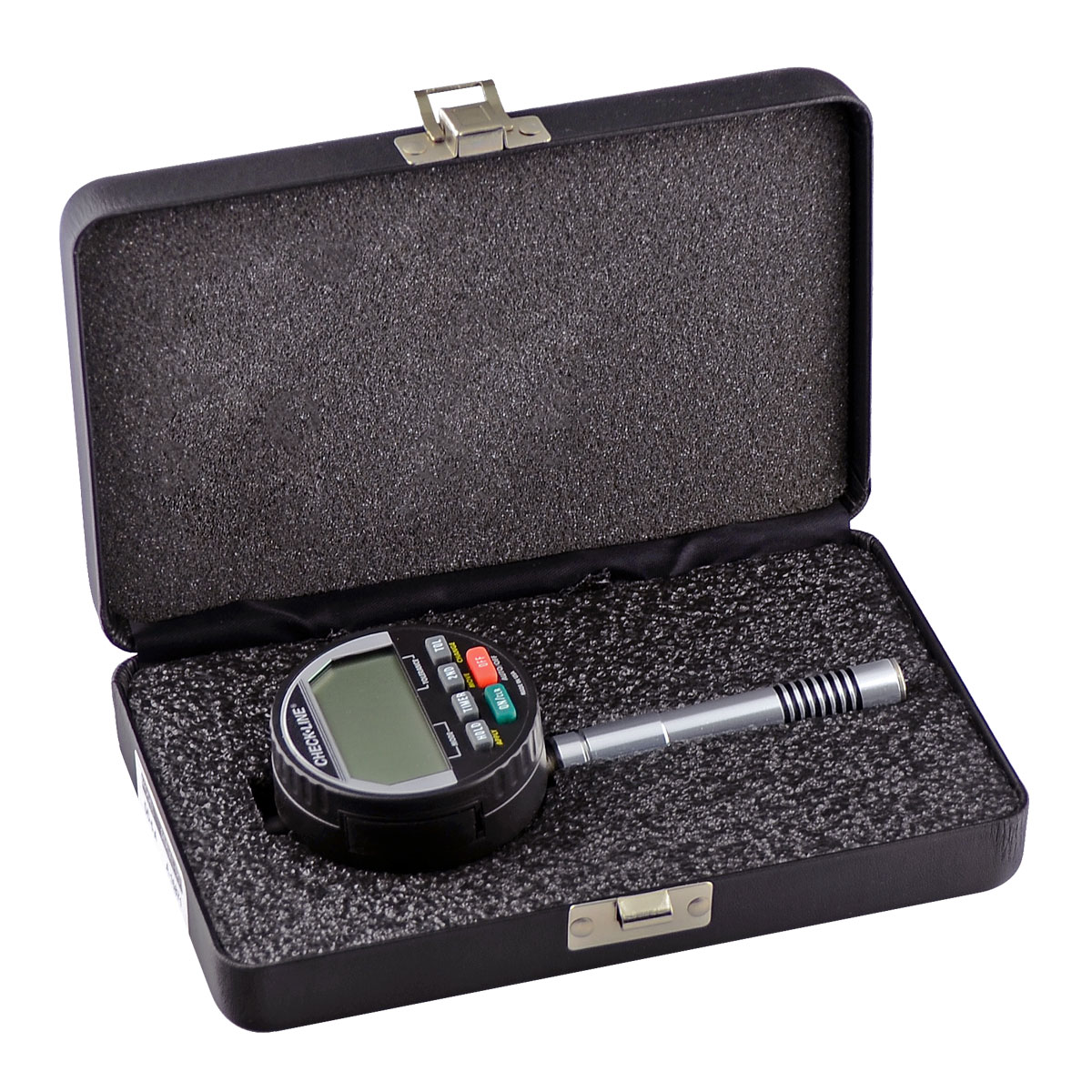

The RX-DD-5 is supplied as a complete kit including the durometer, 115V AC Adapter (230V AC Adapter is OPTIONAL), instruction manual and calibration certificate in a foam-fitted metal carrying case.

Downloads

Related Products

OS-1 Durometer Operating Stand
Click image for more info
Durometer Operating Stand for use with type A, B, C, D, DO, E, O, OO, and OOO
os-2 durometer operating stand
Click image for more info
Durometer Operating for use with type A, B, E and O scale durometers
- Eliminates operator error in the A, B, E and O scales
- Stainless steel and anodized aluminum construction
- Made in the U.S.A.
RX-DD Digital Durometer
Click image for more info
Digital Durometer
- Includes NIST-Traceable Calibration Certificate
- Conforms to ASTM D-2240
tbkc-a durometer test block kit
Click image for more info
Test Function Of Durometers
- Enables user to perform a quick check for proper durometer operation

Buy Now

Item Description Price
Type A Digital Durometer with Timer for Soft rubber, plastics and elastomers (DD-5-A)
$1,450.00
Type D Digital Durometer with Timer for Hard rubber and plastics (DD-5-D)
$1,450.00
Type B Digital Durometer with Timer for Harder elastomers and plastics. Use above 93 A scale
$1,495.00
Type C Digital Durometer with Timer for Medium hard elastomers and plastics
$1,495.00
Type O Digital Durometer with Timer for soft elastomers below 20 A scale
$1,495.00
Type OO Digital Durometer with Timer for Light foams, sponge rubber gels and animal tissue
$1,495.00
Accessories
G13-0055
USB Data Transfer Cable from DD-100 or RX-DD Digital Durometers to a PC for transfer to a Wedge or Data Collection program purchased from a 3rd party
$95.00
DD-DB1
"Smart" USB Data Transfer Cable, Sends data to any Windows program with press of a button
$345.00
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
Unavailable
