RX-4000 Digital Durometer

Made in USA
Click images to enlarge.

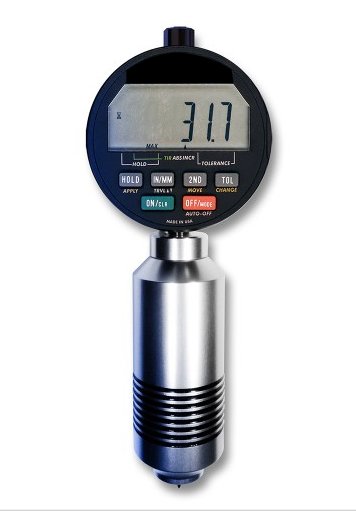

The RX-4000 Digital Durometer is the perfect instrument for use on the production floor or in the lab for measuring the hardness (Durometer) of rubber and plastic parts. It features an over-sized 18mm footer, large LCD display with USB output. Available models include RX-4000-A for Rubber Parts and RX-4000-D for plastic parts.

The Model 4000 Digital Durometer is supplied in a foam-fitted carry case along with an NIST-Traceable Calibration Certificate.

Features

  • Includes NIST Calibration Certificate
  • Holds Reading Until Reset
  • Large LCD Display
  • Maximum Reading Hold
  • High and low buttons for setting tolerance limits
  • 18mm Diameter Presser Foot
  • Custom Made Carrying Case
  • Dial rotates up to 270°
  • Conforms to ASTM D-2240, DIN 53505, ISO 868 and ISO 7619

Complete Kit

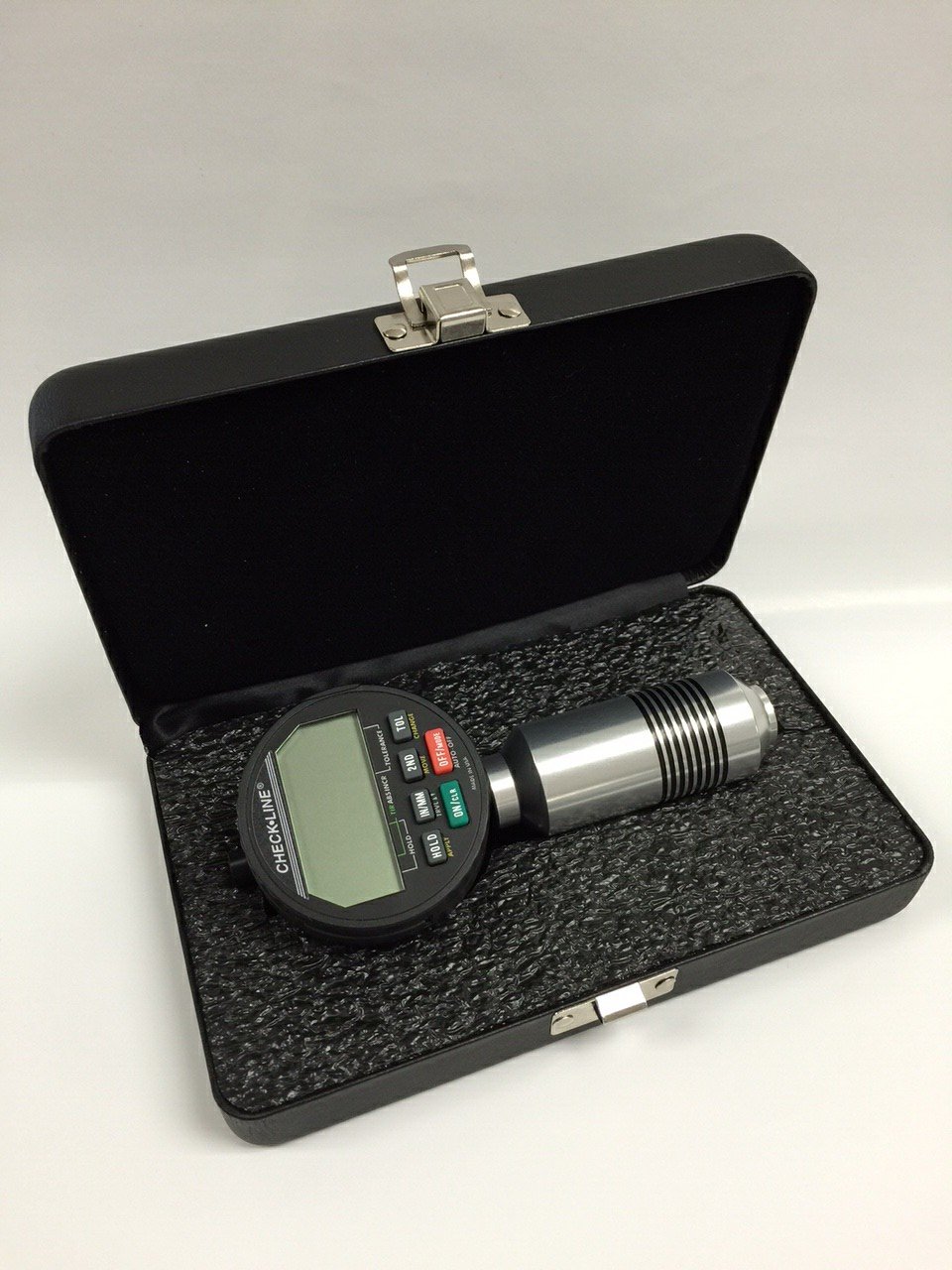

The RX-4000 is supplied with the Durometer, NIST-Traceable Calibration Certificate and Instruction Manual in foam fitted latching carrying case

Specifications

Presser Foot18 mm Diameter
Lower Barrel1.250" Diameter
Dimensions2.5"W x 6.125"H (64 x 156 mm)
Weight200 grams (0.44 lbs)
StandardsConforms to ASTM D-2240, DIN 53505, ISO 868 and ISO 7619

Related Products

AD-100 Durometer
Click image for more info
Durometer Tester
- Includes NIST-Traceable Calibration Certificate
- Conforms to ASTM D-2240, DIN 53505, ISO 868, JIS K 7215 and ISO 7619. Asker C model conforms to JIS K-7312.
- 18 mm diameter footer provides stable basis for testing and conforms to all International Standards
DD-100 Digital Durometer
Click image for more info
Digital Durometer Tester
- High and low buttons for setting tolerance limits
- Holds Peak reading until reset
- 0.1 Unit Resolution
- Conforms to ASTM D-2240, DIN 53505, ISO 868, JIS K 7215 & ISO 7619. Asker C model conforms to JIS K-7312.
RX-3000 Rex Durometer
Click image for more info
Max Hand Durometer
RX-DD Digital Durometer
Click image for more info
Digital Durometer
- Includes NIST-Traceable Calibration Certificate
- Conforms to ASTM D-2240

Buy Now

Item Description Price
RX-4000-A Digital Durometer Type A
$1,200.00
Digital Durometer Type D (Shore D) with 18mm diameter Footer. Hold
$1,200.00
Accessories
Type A Test Block Kit with NIST traceable certificate, 7 Color Coded Blocks - TBK-A
$275.00
Type D Test Block Kit with NIST traceable certificate, 3 Color Coded Blocks - TBK-D
$200.00
