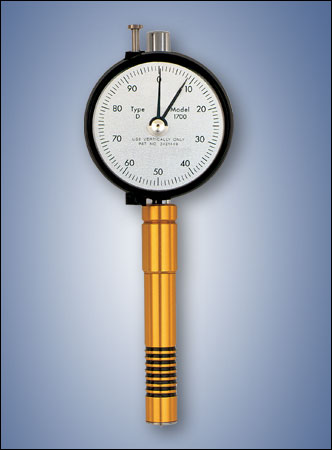

RX-1700 Precision Durometer With Memory - DISCONTINUED

Made in USA
Click images to enlarge.

The RX-1700 has been replaced by the RX-2000, click here to go to the RX-2000 Webpage.

Available Scales: A, AO, B, C, D, DO, E, O (Asker, ISO, DIN & JIS Scales also available, inquire)

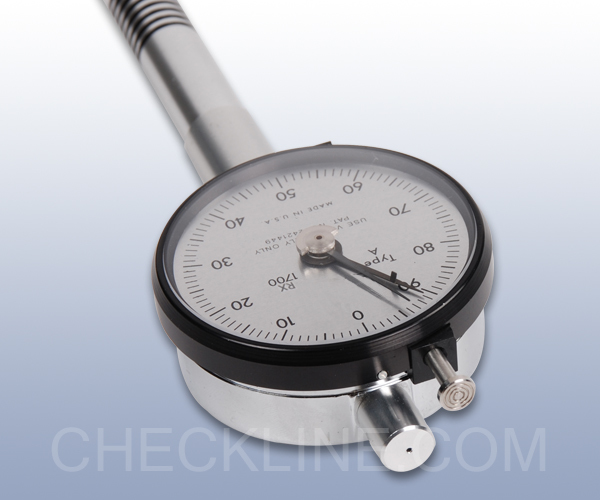

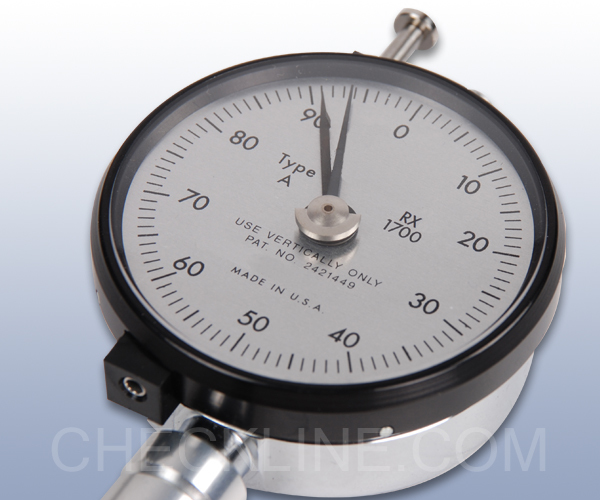

Introduced in 1965, the Model 1700 was designed to enable the user to observe and measure the "creep" present in a specimen. Creep refers to the tendency of the durometer indentor to continue to penetrate a specimen over time, giving lower durometer readings. For example, if the durometer is held against a specimen in full contact and with constant pressure, the durometer reading will decrease over a period of seconds after the initial reading is taken. So, in a specimen with creep, the initial reading may be 35.0 durometer points, while the reading after three seconds may be 33.5 durometer points. The Model 1700 features a max- hand and an active hand so that creep may be observed. The max hand holds the maximum reading while the active hand can be observed creeping down the scale. The 1700 is equipped with a max-hand reset button on the top left of the gauge.

Features

  • Includes NIST-Traceable Calibration Certificate
  • Reads maximum and creep
  • Unique foolproof reset
  • Conforms to ASTM D-2240
  • Custom made carrying case
  • Holds reading until reset
  • Optional Removable Stainless Steel Barrel for Medical and Food Applications

Related Products

RX-DD Digital Durometer
Click image for more info
Digital Durometer
- Includes NIST-Traceable Calibration Certificate
- Conforms to ASTM D-2240
tbkc-a durometer test block kit
Click image for more info
Test Function Of Durometers
- Enables user to perform a quick check for proper durometer operation
Click image for more info
O-Ring Fixturing Set
- Measures O-Rings 1/16" to 1/4"
- 5 standard English sized fixtures and set plug included
Click image for more info
"Big Foot" Durometer Foot Adapter
Click image for more info
Durometer Load Weight for Types A, B, O, OO & OOO

Durometer Test Stands

AD-100 Durometer mounting in optional test stand We offer a complete line of durometer test stands. The stand, when used in conjunction with a Durometer, eliminates operator error sometimes associated with hand-held durometer testing. Our stands feature a load weight for the proper testing pressure as noted in ASTM D2240, and a quick-lock column for easy adjustment. Click here for more info on Durometer Test Stands.

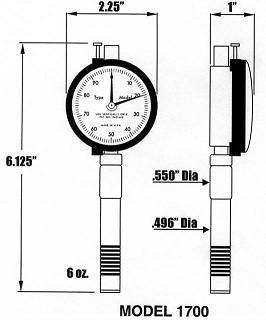

Dimensions

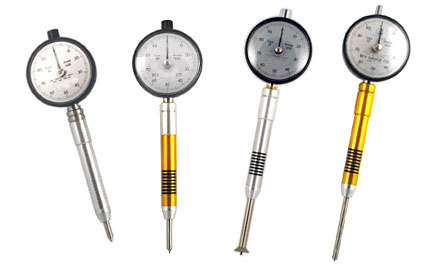

Slim Probe Durometer

Slim Probe Durometers
We offer custom slim probe versions of most durometer models and types. The slim probe attachment can be modified to fit your specific needs or applications.

Click here for more information

Complete Kit

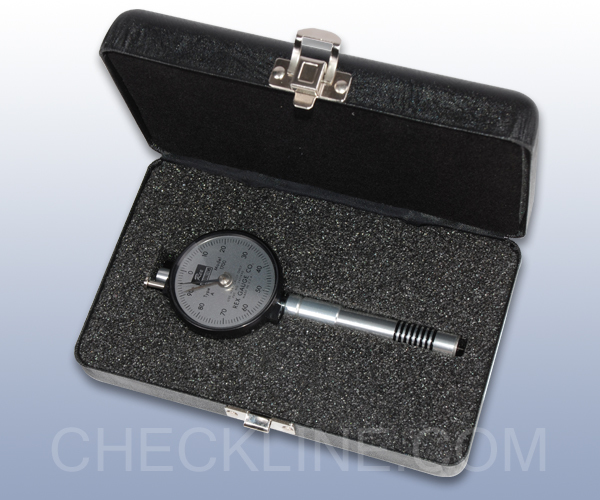

The RX-1700 is supplied as a complete kit including the durometer & instruction manual in a foam-fitted metal carrying case.

Specifications

Measuring Range0 - 100 Units
Accuracy±1 durometer unit (A,B,C,D,E,O,DO)
±2 durometer units (OO,OOO)
±4 durometer units (M)
Dimensions2.25" x 6.125"H
Weight6 oz.
