RX-MS Multi-Scale Durometer

Made in USA
Multi-Scale Durometer - RX-MS
Click images to enlarge.
For the technician that must perform hardness tests on various types of non-metallic materials, we offer the Multi-Scale durometer test kit.

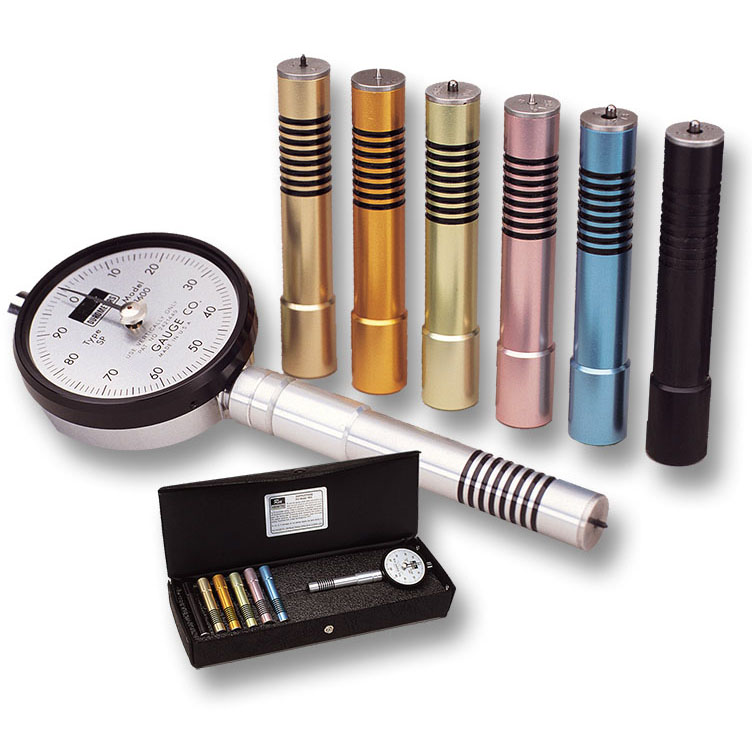

The Multi-Scale base kit consists of an analog display with a type A, D and OO durometer barrel. A complete kit is supplied with an analog display and A, D, B, C, DO, O, OO, OOO durometer barrels.

Changing scales is accomplished by unscrewing one barrel and replacing it with another - no supplementary calibration or adjustments are necessary.

A test block, calibrated to the selected scale is also included. The block allows the user to perform quick functional checks on the instrument.

The indicator and barrels are made in the USA, and are calibrated to the ASTM-D2240 standard for durometer hardness testers.

Features

  • Multi-Scale Durometer allows user to measure in a variety of scales with one guage.
  • Includes NIST Calibration Certificate

Related Products

tbkc-a durometer test block kit
Click image for more info
Test Function Of Durometers
- Enables user to perform a quick check for proper durometer operation
Click image for more info
O-Ring Fixturing Set
- Measures O-Rings 1/16" to 1/4"
- 5 standard English sized fixtures and set plug included
Click image for more info
"Big Foot" Durometer Foot Adapter
Click image for more info
Durometer Load Weight for Types A, B, O, OO & OOO
RX-DD-MS Multi-Scale Durometer
Click image for more info
Digital Multi-Scale Durometer
- Digital Multi-Scale Durometer allows user to measure in a variety of scales with one guage.

Durometer Test Stands

AD-100 Durometer mounting in optional test stand We offer a complete line of durometer test stands. The stand, when used in conjunction with a Durometer, eliminates operator error sometimes associated with hand-held durometer testing. Our stands feature a load weight for the proper testing pressure as noted in ASTM D2240, and a quick-lock column for easy adjustment. Click here for more info on Durometer Test Stands.

Specifications

Measuring Range0 - 100 units
Accuracy*±1 durometer unit (A,B,C,D,O,DO)
±2 durometer units (OO,OOO)
Dimensions2.25" x 6.125"H
Weight6 oz.
* Noteper ASTM D 2240-05, Sect 9.3: It is accepted that durometer readings below 20 or above 90 are not considered reliable. It is suggested that readings in these ranges be omitted.

Complete Kit

The RX-MS base kit consists of an analog display with a type A, D and OO durometer barrel. The RX-MS-KIT is supplied with an A, D, B, C, DO, O, OO and OOO durometer barrels. Supplied in a hard shell carrying case including instruction manual, durometer test block.

Buy Now

Item Description Price
Multi-Scale Durometer Kit, Includes Analog Display with Type A, D, OO Barrels
$1,385.00
Multi-Scale Durometer Kit, Includes Analog Display with Type A, B, C, D, DO, O, OO, OOO Barrels
$3,950.00
Accessories
RX-RFA
Rectangular Footer for Durometers with 1/2" Diameter Barrel, 41 x 19 mm
$195.00
