RX-2000 Max-Hand Durometer

Made in USA

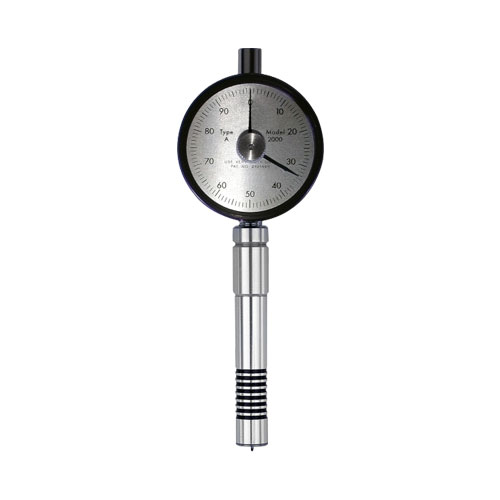

RX-2000 ASTM D-2240 Durometer
Click images to enlarge.
Available Scales: A, D, B, C, DO, E, O

The RX-2000 durometer is the latest innovation for the testing of specimens with creep. The RX-2000 has a second needle which holds the highest measurement. This helps the operator observe the creep characteristics of a specimen. To reset the peak indicator the user simply rotates the reset knob on the front of the gauge to clear the previous reading. The simplicity of the reset mechanism ensures a lifetime of use, and makes the RX-2000 the most affordable durometer for testing specimens with creep.

Features

  • Includes NIST-Traceable Calibration Certificate
  • Custom Made Carrying Case
  • Reads Maximum and Creep
  • One Year Warranty
  • Conforms to ASTM D-2240
  • Holds Reading Until Reset
  • Cost Effective, Hand Operated

Related Products

tbkc-a durometer test block kit
Click image for more info
Test Function Of Durometers
- Enables user to perform a quick check for proper durometer operation
Click image for more info
O-Ring Fixturing Set
- Measures O-Rings 1/16" to 1/4"
- 5 standard English sized fixtures and set plug included
Click image for more info
"Big Foot" Durometer Foot Adapter
Click image for more info
Durometer Load Weight for Types A, B, O, OO & OOO

Durometer Test Stands

AD-100 Durometer mounting in optional test stand We offer a complete line of durometer test stands. The stand, when used in conjunction with a Durometer, eliminates operator error sometimes associated with hand-held durometer testing. Our stands feature a load weight for the proper testing pressure as noted in ASTM D2240, and a quick-lock column for easy adjustment. Click here for more info on Durometer Test Stands.

Dimensions

Complete Kit

The RX-2000 is supplied as a complete kit including the durometer & instruction manual in a foam-fitted metal carrying case.

Specifications

Measuring Range0 - 100 units
Accuracy±1 durometer unit (A,B,C,D,E,O,DO)
Tolerance± 0.5 at "100" and -0 +1 at "0"
Dimensions2.25" x 6.125"H
Weight6 oz.
* Noteper ASTM D 2240-05, Sect 9.3: It is accepted that durometer readings below 20 or above 90 are not considered reliable. It is suggested that readings in these ranges be omitted.
Mounting Thread5/16-40

Buy Now

Item Description Price
Type A Durometer with Memory Pointer, for Soft rubber, plastics and elastomers.
$630.00
Type B Durometer with Memory Pointer, for Harder elastomers and plastics. Use above 93 A scale.
$685.00
Type C Durometer with Memory Pointer, for Medium hard elastomers and plastics.
$685.00
Type D Durometer with Memory Pointer, for Hard rubber and plastics
$630.00
Type DO Durometer with Memory Pointer, for Dense granular material and textile windings.
$685.00
Type O Durometer with Memory Pointer, for soft elastomers below 20 A scale
$685.00
Accessories
Type A Test Block Kit with NIST traceable certificate, 7 Color Coded Blocks - TBK-A
$285.00
Type D Test Block Kit with NIST traceable certificate, 3 Color Coded Blocks - TBK-D
$205.00
RSS
Upgrade to Removable Stainless Steel Barrel for Medical and Food Applications
(Must be specified at time of order, not suitable for use with RX-1600-M or RX-1600-OOO-S)
$200.00
RX-RFA
Rectangular Footer for Durometers with 1/2" Diameter Barrel, 41 x 19 mm
$195.00
