DTFB - DTFX Replaced by DTXE

Made in Germany

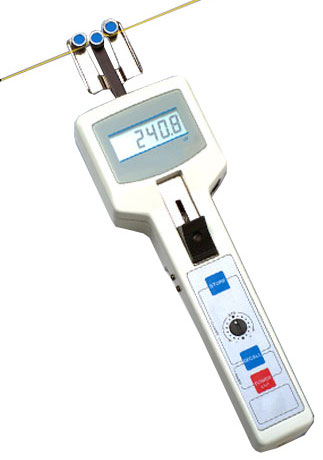

DTFB - DTFX Digital Tension Meter
Click images to enlarge.
The DTFB Limited Access Digital Tension meter accurately measure the running line tensions of yarns, fibers, wires, cables and similar process materials. Long, flat fingers and miniature 7.4 mm diameter V-grooved rollers permit measurement in areas with limited space or tightly grouped filaments.

DTFX Additional Features

  • Built-in datalogging with RS232 and 0-1 VDC Analog output
  • Memory capacity of 100 values plus min, max, peak, avg and standard deviation
  • Optional TensionView software available for batch download or continuous real-time trending


    • Roller shifting mechanism ensures easy acquisition of the running material
    • Small measuring head, allows access where space is limited or where filaments run close together
    • Turned-up outer finger edges guide the running filament into the roller grooves
    • Calibration to customer supplied material is available
    • Minature 7.4 mm diameter V-Grooved rollers for material speeds up to 900 meters/min

    Tension Ranges

    ModelRangeResolutionMeasuring Head
    Width mm
    2.0-200.0 g0.1 g38
    5.0-500.0 g0.1 g38
    50-1000 g1 g36
    200-2000 g1 g36
    Other units of measure available.

    Measuring Head Dimensions

    Guide Rollers

    Order Code Line Speed ...m/min Roller Material
    Standard 900 Hardcoated aluminium
    Code K 2000 Hardcoated aluminum
    Code T 450 Plastic (POM) black
    Code W 450 Nickel-plated steel

    Related Products

    Click image for more info
    Available Rollers for Hand-Held Tension Meters
    Click image for more info
    Data Transfer & Analysis Program For The DTMX Tension Meter
    Click image for more info
    - Small, portable and easy to use
    - Prints statistical data from the DTMX Digital Tension Meter
    Click image for more info
    Serial Cable for DTMX

    Complete Kit

    The DTFB complete kit includes the tension meter, four (4) AA batteries and operating instruction manual all supplied in a foam fitted carrying case.



    AccuracyFrom 10% up to 90% of tension range: ±0.5% full scale and ±1 digit remaining tension range and other calibration material: ± 3% full scale and ±1 digit
    OverrangeApprox. 15% full scale, without accuracy guarantee
    Overload protection100% of tension range
    Measuring principleStrain gauge bridge
    Measuring roller deflection0.2 mm max.
    Converter12 bit A/D
    Temperature CoefficientGain: less than ±0.01 % full scale/ºC
    Zero point: less than ±0.3 % full scale/ºC
    DisplayLCD 4 digit, 12 mm high
    Display update rateAdjustable 0.5, 1, 2 or 4 s (averaging)
    Field adjustment±7 steps in 1.5 % increment
    MemoryMIN, MAX, PEAK and last value
    Temperature range10 -45 ºC
    Air humidity85 % relative humidity, max.
    Housing Dimensions235 x 76 x 45mm (LxWxH)
    Additional specifications model for DTFX
    Expanded memoryMax. 100 readings, MAX, MIN, and PEAK as well as average values and standard deviation
    Digital output signalRS 232 C (4800, 8, N, 2)
    Analog output signal0 - 1 V DC (converter rate 16 ms)
    Digimatic interfaceMitutoyo
