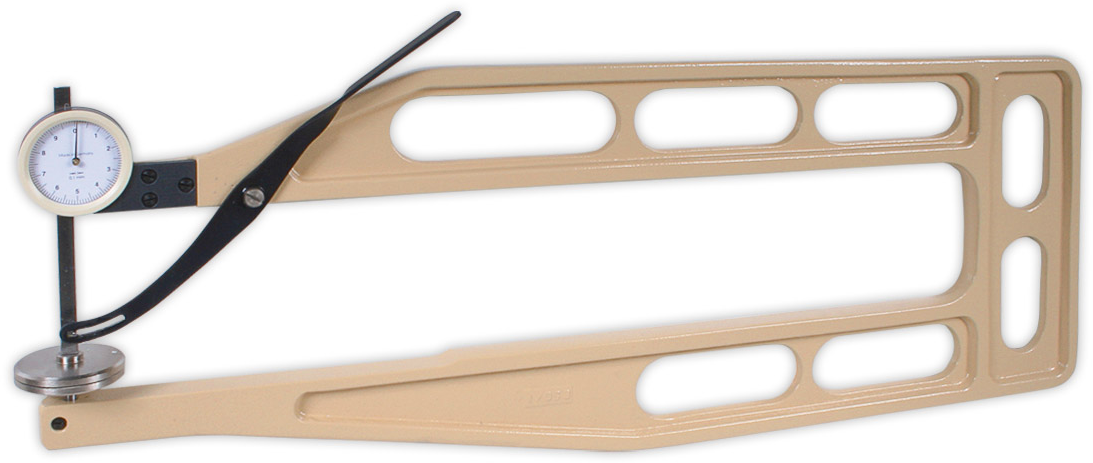

DM-850-1 Analog Dial Thickness Gauge

Click images to enlarge.
Measuring range: 0 - 2 inch (0 - 50 mm)
Resolution: 0.004 in (0.1 mm)

Thickness gauge to determine the thickness of leather, textiles, cardboard, felt, rubber, sheet metal, foil, plywood, plastic, etc. Self closing thickness gauge with high accuracy and resolution.

Features

  • Opening by lifting device (lever) - self closing
  • Measuring by spring force

Available Models

ModelMeasuring RangeResolutionDepth of Jaw
DM-8200 - 1 in
(0 - 25 mm)
0.004 in
(0.1 mm)
7.90 in
(200 mm)
DM-820-10 - 2 in
(0 - 50 mm)
0.004 in
(0.1 mm)
7.90 in
(200 mm)
DM-8300 - 1 in
(0 - 25 mm)
0.004 in
(0.1 mm)
11.80 in
(300 mm)
DM-830-10 - 2 in
(0 - 50 mm)
0.004 in
(0.1 mm)
11.80 in
(300 mm)
DM-8350 - 3 in
(0 - 75 mm)
0.004 in
(0.1 mm)
13.80 in
(350 mm)
DM-8400 - 4 in
(0 - 100 mm)
0.004 in
(0.1 mm)
15.75 in
(400 mm)
DM-8500 - 1 in
(0 - 25 mm)
0.004 in
(0.1 mm)
19.70 in
(500 mm)
DM-850-10 - 2 in
(0 - 50 mm)
0.004 in
(0.1 mm)
19.70 in
(500 mm)
DM-8650 - 1 in
(0 - 25 mm)
0.004 in
(0.1 mm)
25.60 in
(650 mm)
DM-865-10 - 2 in
(0 - 50 mm)
0.004 in
(0.1 mm)
25.60 in
(650 mm)

Feeler Shape

To order, please indicate the desired feeler, e.g. DM-850-1-B for gauge with feeler >B<. This means that NOT all feelers are included in the package!
Feeler: A
rigid leather, glass, sheet metal
Feeler: B
wood, rubber, soft leather, foil, etc.
Feeler: C
soft rubber, felt, fleece
Feeler: D
rubber rings, round material
Feeler: E
paper, cardboard, chipboard and fibreboard, plywood
Feeler: F
sheet metal, glass, round material
Feeler: G
very rigid material
Feeler: H
foams and insulating materials
Feeler: I
very soft foams and insulating materials
Feeler: M
rubber sheets, felt, soft materials

Specifications

Resolution0.004 in (0.1 mm)
Measuring range0 - 2 in (50 mm)
Depth of jaw19.70 in (500 mm)
Measuring pressure2 N
Measuring principleSelf closing
Feeler shapeA/B/C/D/E/F/G/H/I/M
Weight, net (gross)1600 g (1650 g)

Buy Now

Item Description Price
DM-850-1 - Analog Dial Thickness Gauge - Feeler A (6 mm)
$365.00
DM-850-1 - Analog Dial Thickness Gauge - Feeler B (10 mm)
$365.00
DM-850-1 - Analog Dial Thickness Gauge - Feeler C (25 mm)
$365.00
DM-850-1 - Analog Dial Thickness Gauge - Feeler D (5 mm)
$365.00
DM-850-1 - Analog Dial Thickness Gauge - Feeler E (16 mm)
$365.00
DM-850-1 - Analog Dial Thickness Gauge - Feeler F (3.5 mm)
$365.00
DM-850-1 - Analog Dial Thickness Gauge - Feeler G (1.5 mm)
$365.00
DM-850-1 - Analog Dial Thickness Gauge - Feeler H (30 mm)
$365.00
DM-850-1 - Analog Dial Thickness Gauge - Feeler I (50 mm)
$365.00
DM-850-1 - Analog Dial Thickness Gauge - Feeler M (20 mm)
$365.00
