GEK Adjustable and Ratchet Digital Torque Wrenches

Made in Japan
GEK Digital Torque Wrench
Click images to enlarge.

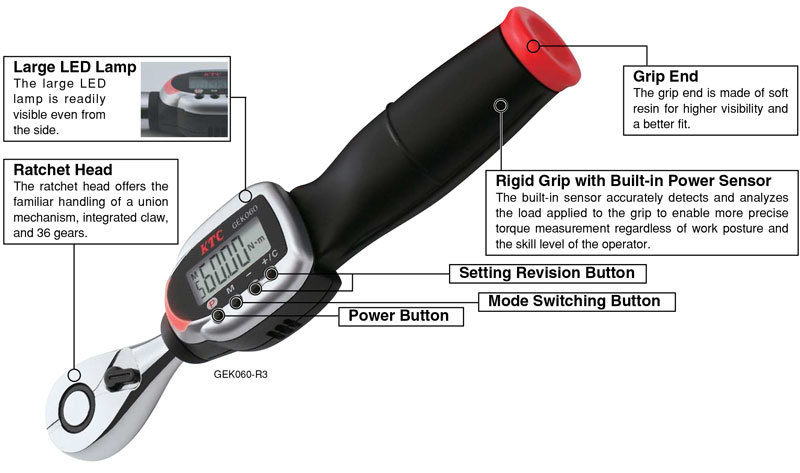

Digital Ratchet Torque Wrenches have a forged steel ratchet head and feature a unique power sensor in the ergonomic handle which accurately detects and analyzes load applied to the grip to enable more precise torque measurement regardless of hand position, unlike other loading point sensitive wrenches.

Digital Adjustable Torque Wrenches expand torque applications to places where a socket wrench cannot work. They feature forged steel jaws and a unique power sensor in the handle which accurately detects and analyzes load applied to the grip, regardless of hand position and specially designed jaws that maintain a constant working length whether open or closed, to enable more precise torque measurement.

These torque wrenches measure in peak mode, peak with auto zero reset, and real time. Five programmable torque presets stored in memory enable the user to check frequently used values. The presets alert the user with an intermittent signal at 90% and a continuous signal at 100% of the preset torque value using LED and audible indicators that enable users to tighten to within 10% of a preset torque value. Pass/Fail mode counts the number of fasteners tightened within programmed high and low torque limits. Selectable units of lbf-in, lbf-ft, kgf-m, and N-m. Uses a lithium coin battery, CR2354.

Features

  • Includes NIST traceable Calibration Certificate
  • High accuracy ±1.5% F.S. both CW and CCW directions
  • Five programmable torque presets ideal for frequent operations.
  • Selectable units, lbf-in, lbf-ft, kgf-cm, N-m
  • ISO-6789 Compliant
  • Pass/Fail mode counts fasteners tightened within programmed High/Low limits, using LED and audible alerts
  • Peak, peak with auto zero reset and Real Time modes

Torque Ranges

Digital Ratchet Wrench Ranges

Model lbf-in lbf-ft kgf-m N-m Drive
GEK030-R2E 13.4 - 265.4 1.12 - 22.12 0.160 - 3.060 1.50 - 30.00 1/4"
GEK030-C3E 13.4 - 265.4 1.12 - 22.12 0.160 - 3.060 1.50 - 30.00 3/8"
GEK060-R3E 13.5 - 531.0 1.15 - 44.25 0.160 - 6.120 1.50 - 60.00 3/8"
GEK085-R3E 19.0 - 752.0 1.60 - 62.70 0.21 - 8.66 2.0 - 85.0 3/8"
GEK135-R4E 28 - 1195 2.3 - 99.5 0.32 - 13.76 3.1 - 135.0 1/2"
GEK200-R4E 46 - 1770 3.8 - 147.4 0.55 - 20.40 5.2 - 200.0 1/2"

Digital Adjustable Wrench Ranges

Model lbf-in lbf-ft kgf-m N-m
GEK085-W36E 19.0 - 752.0 1.60 - 62.70 0.21 - 8.66 2.0 - 85.0
GEK135-W36E 28 - 1195 2.3 - 99.5 0.32 - 13.76 3.1 - 135.0
GEK200-W36E 46 - 1770 3.8 - 147.4 0.55 - 20.40 5.2 - 200.0

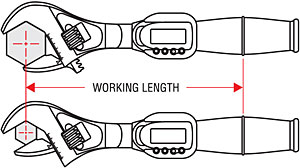

Specially Designed Jaws Maintain Consistent Working Length

working length
Consistent working length, whether the jaws are open or closed, assures greater accuracy in measurement (measured from the bolt's rotational axis to the point where load is applied).

Forged Steel Ratchet Head

Forged Steel Ratchet Head
The 36 tooth gear and double claw ratchet allows a 10° angle and solid movement between clicks.

Wrench Union

Ordinary Socket Wrench Union
Ordinary Socket Wrench Union
The ball in the square drive rests on a tapered surface of the pushpin and can be pushed in without pressing the pushpin, allowing the socket to detach unexpectedly.
Digital Ratchet Torque Wrench Union
Digital Ratchet Torque Wrench Union
The ball in the square drive rests on the small platform on the pushpin and cannot be pushed in without pressing the pushpin, resulting in no accidental detachments.

Optional Quick Spinner and Spinner/Converters

Quick Spinners and Spinner/Converters allow users to quickly rundown the bolt or nut using their fingers before applying torque.

BE2-Q 1/4" to 1/4" Quick Spinner
BE3-Q 3/8" to 3/8" Quick Spinner
BE4-Q 1/2" to 1/2" Quick Spinner

Spinner/Converters have a lower profile than convention adapters.

BAE23 converts 1/4" to 3/8" drive
BAE34 converts 3/8" to 1/2" drive
Quick SpinnerSpinner/Converters
Quick SpinnerSpinner/ConvertersSpinner/Converters
BE2-Q 1/4" to 1/4"
BE3-Q 3/8" to 3/8"
BE4-Q 1/2" to 1/2"
BAE23 1/4" to 3/8"BAE34 3/8" to 1/2"


Specifications

Accuracy±1.5% F.S.
Measuring directionCW and CCW
Measuring unitSelectable lbf-in, lbf-ft, kgf-m, N-m
Data Memory5 (storable Target torque values), 1 (Pass/Fail Mode)
Auto Shut OFFPower automatically turns off after 2 minutes of non-use
BatteryLithium coin battery CR2354
Battery LifeApprox. 2 months (100 usages per day)

Downloads

Buy Now

Item Description Price
Digital Ratchet Torque Wrench, 30 Nm / 22 lb-ft Capacity, 1/4in drive
$485.00
Digital Ratchet Torque Wrench, 30 Nm / 22 lb-ft Capacity, 3/8in drive
$485.00
Digital Ratchet Torque Wrench, 60 Nm / 44 lb-ft Capacity, 3/8in drive
$485.00
Digital Ratchet Torque Wrench, 85 Nm / 62 lb-ft Capacity, 3/8in drive
$485.00
Digital Ratchet Torque Wrench, 135 Nm / 100 lb-ft Capacity, 1/2in drive
$525.00
Digital Ratchet Torque Wrench, 200 Nm / 147 lb-ft Capacity, 1/2in drive
$625.00
Digital Adjustable Wrench - 85 Nm / 62 lb-ft Capacity
$645.00
Digital Adjustable Wrench - 135 Nm / 100 lb-ft Capacity
$670.00
Digital Adjustable Wrench - 200 Nm / 147 lb-ft Capacity
$785.00
Accessories
ISO-17025
Upgrade from 3 point NIST traceable cert to ISO-17025 Certificate
$160.00
CR2354
Replacement Battery
$2.00
BAE23
Quick Adaper - 1/4" sq. - 3/8" sq.
$35.00
BAE34
Quick Adaper - 3/8" sq. - 1/2" sq.
$35.00
BE2-Q
Quick Spinner - 1/4" sq. - 1/4" sq.
$35.00
BE3-Q
Quick Spinner - 3/8" sq. - 3/8" sq.
$35.00
BE4-Q
Quick Spinner - 1/2" sq. - 1/2" sq.
$35.00
