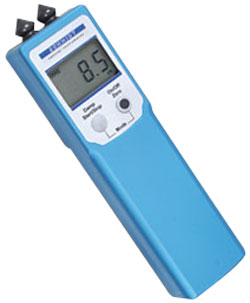

PT-100 Circular Knitting Tension Meter

Made in Germany
pt-100 circular knitting tension meter
Click images to enlarge.
Measuring Range: 0.5 - 100.0 grams or cN

The PT-100 digital tension meter is designed for measurement of low tensions of fibers, yarns. etc. typically found on circular knitting machines etc.

It is battery-powered and pocket-sized for convenient storage and features and extremely small measuring head for applications with limited access space

It uses a unique 180 degree material wrap to provide for accurate readings while the machine is in operation.

Easy Slide-In material threading by cone shaped guide roler and turning the instrument 180 degrees

Features

  • NIST-Traceable Calibration Certificate & Test Report is optionally available
  • Continuous automatic "zero setting" in all measuring positions insures highest accuracy and repeatability
  • Adjustable electronic damping provides a more steady value as compared to constantly fluctuation tension values
  • V-Grooved Ball-bearing guide rollers with measuring head width of 24 mm (outer distance of guide rollers)
  • Rollers are hard coated aluminum for speeds up to 2,000 m/min
  • Compact aluminum housing is rugged and features an easy to read LCD Display
  • User-set measuring units of Grams or cN and can be used in right or left hand as desired
  • Rechargeable battery provides approx. 40 hours of continuous use
  • Each instrument is individually calibrated for highest accuracy and is CE Certified
  • Warranty:
  • Made in Germany

Tension Ranges

ModelRangeCalibration Material
PT-1000.5 - 100.0 g or cNPA: 0.12 mm

Complete Kit

Tension meter with carrying case, AC adapter with 3 country adapters (EU/USA/UK), operating instruction manual

Related Products

pt-100-l circular knitting tension meter
Click image for more info
Pocket Tension Meter for Circular Knitting with Speed and Length Meter
- Continuous automatic "zero setting" in all measuring positions insures highest accuracy and repeatability
- Rechargeable battery provides approx. 40 hours of continuous use

Specifications

Accuracy±1.5 % full scale ±1 digit
Overload protection200 % full scale
Measuring unitscN, gr user-switchable
Measuring principleStrain gauge full bridge loadell
DampingAdjustable electronic damping, averaging
DisplayLCD 3 ½ digits, 9 mm high
Display update rate2 times per second
Auto power offAfter 3 minutes off non use
Temperature range10 - 45 ºC
Air humidity85 % RH, max.
Power supplyLithium Polymer Rechargeable Battery (approx. 40 hours continous use, charging time approx. 3.5 h) with Charger 100 - 240 V AC with country adapters (EU/USA/UK)
Housing materialAluminium
Dimensions141 x 36 x 22 mm (LxWxH)
Weight, net (gross)Approx. 170 g (approx. 500 g)
