ZTA-LM Digital Compression Force Gauge with Button Sensor

Made in Japan
Compression Force Gauge with remote sensor
Click images to enlarge.
10 Ranges up to 4,400 lbs

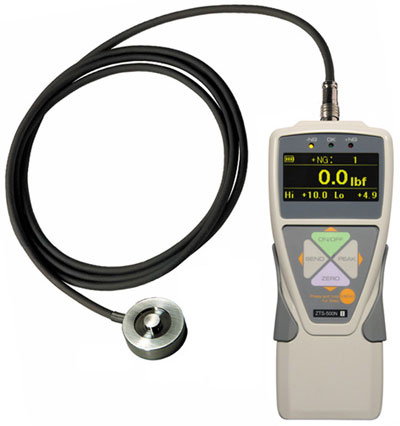

The ZTA-LM force gauge measures compression force with a remote button style sensor. It is ideal for use in limited access applications. The sensor is connected via an 8ft / 2.5m cable allowing the display to positioned in a safe, convenient location.

An easy-to-use menu allows the user to select units, measuring mode, set high/low setpoints, language and adjust many other settings.

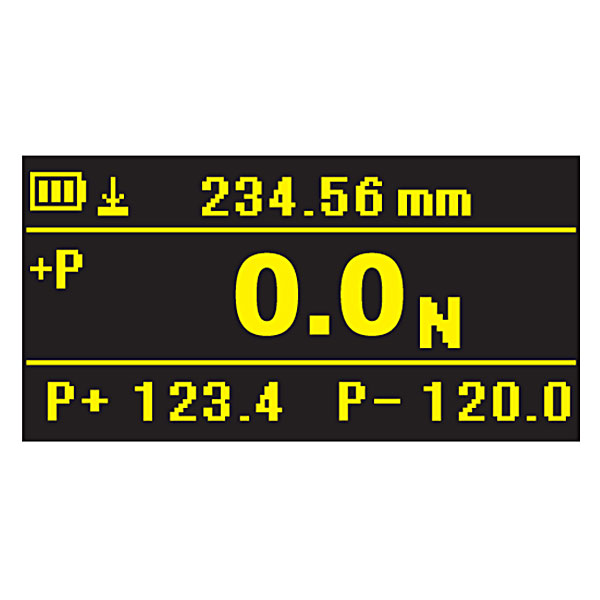

Electroluminescent display (ELD) shows force value, unit, and peak, and can be configured with additional user-selectable data including memory data, +NG count, high/low setpoints, 1st and 2nd peaks, displacement value (using atest stand with FA option), etc.

Color-coded LED indicators alert the user to Go/NoGo conditions. Orange lights for less than low setpoint, green lights between high and low, and red for over the high.

Process and transmit 2,000 actual data per second, not just the peak from a high sampling rate. Optional Force Recorder data acquisition software is designed to process up to 2,000 data per second.

    ZTA-LM Additional features
  • Export gauge memory or save continuous data to USB flash drives

Features

  • Includes NIST Traceable Calibration Certificate
    ISO-17025 certificate option available
  • Electroluminescent display (ELD) is highly visible in dark locations
  • Processes and transmits 2,000 data/sec.
  • Ergonomic design with non-slip grips, heavy duty metal construction
  • Overload capacity 200% F.S.
  • Multi-langauge program menus: English, Spanish, French, Chinese, German, Italian, Korean, Japanese
  • Color-coded LED indicators and output signal for Go/No Go testing
  • External switch display hold and clear
  • USB (virtual COM port), RS-232C, Digimatic and Analog outputs
  • Internal Ni-MH batteries or AC adapter
  • Real time and peak mode (selectable)
  • Overload alarm and output signal
  • lbf, kgf, and N units are selectable
  • Export gauge memory or save continuous data to USB flash drives (ZTA Models only)
  • 2 Year Warranty

Force Ranges

ModelCapacityResolution
ZTA-LM-22.200 lbf
1.000 kgf
10.00 N
0.001 lbf
0.001 kgf
0.01 N
ZTA-LM-44.400 lbf
2.000 kgf
20.00 N
0.001 lbf
0.001 kgf
0.01 N
ZTA-LM-1111.00 lbf
5.000 kgf
50.00 N
0.001 lbf
0.001 kgf
0.01 N
ZTA-LM-4444.00 lbf
20.00 kgf
200.0 N
0.01 lbf
0.01 kgf
0.01 N
ZTA-LM-110110.0 lbf
50.00 kgf
500.0 N
0.1 lbf
0.01 kgf
0.01 N
ZTA-LM-220220.0 lbf
100.0 kgf
1000 N
0.1 lbf
0.1 kgf
1 N
ZTA-LM-550550.0 lbf
250.0 kgf
2500 N
0.1 lbf
0.1 kgf
1 N
ZTA-LM-11001100 lbf
500.0 kgf
5000 N
1 lbf
0.1 kgf
1 N
ZTA-LM-22002200 lbf
1000 kgf
10.00 KN
1 lbf
1 kgf
0.01 KN
ZTA-LM-44004400 lbf
2000 kgf
20.00 KN
1 lbf
1 kgf
0.01 KN

Related Products

Click image for more info
Force Recorder Data Acquisition Software

Specifications

Accuracy± 0.2% F.S., ± 1 LSD
Selectable Unitslbf(ozf), kgf(gf) or Newtons
Overload Capacity200% of F.S. (Overload indicator flashes beyond 110% of F.S.)
Cable Length8ft / 2.5m
PowerRechargeable Ni-MH battery pack or AC adapter
Battery IndicatorIndicates three charge states high, med and low
MemoryNon-volative, recall up to 1,000 data
SetpointsProgrammable high/low setpoints w/ color-coded LEDs & output signal
OutputsOutputs USB (virtual COM port), RS-232C, Digimatic and ± 2 VDC analog output
Operating Temperature32 to 100 °F (0 to 40 °C)
Warranty2 Years
DimensionsContact Us for Sensor Dimensions

Complete Kit

ZT-LM ​Kit includes, force display, remote sensor with 6′ cable, ZT Logger data acquisition software, USB cable, AC adapter/charger, calibration cert traceable to NIST and carrying case.​

Buy Now

Item Description Price
Remote Sensor Digital Force Gauge, Measures Compression Force Only, 2.2 lbs / 1 Kg / 10 N Capacity
$1,721.50
Remote Sensor Digital Force Gauge, Measures Compression Force Only, 4.4 lbs / 2 Kg / 20 N Capacity
$1,721.50
Remote Sensor Digital Force Gauge, Measures Compression Force Only, 11 lbs / 5 Kg / 50 N Capacity
$1,721.50
Remote Sensor Digital Force Gauge, Measures Compression Force Only, 44 lbs / 20 Kg / 200 N Capacity
$1,721.50
Remote Sensor Digital Force Gauge, Measures Compression Force Only, 110 lbs / 50 Kg / 500 N Capacity
$1,721.50
Remote Sensor Digital Force Gauge, Measures Compression Force Only, 220 lbs / 100 Kg / 1000 N Capacity
$2,035.00
Remote Sensor Digital Force Gauge, Measures Compression Force Only, 550 lbs / 250 Kg / 2500N Capacity
$2,035.00
Remote Sensor Digital Force Gauge, Measures Compression Force Only, 1100 lb / 500 Kg / 5000 N Capacity
$2,035.00
Remote Sensor Digital Force Gauge, Measures Compression Force Only, 2200 lbS / 1000 Kg / 10 kN Capacity
$2,167.00
Remote Sensor Digital Force Gauge, Measures Compression Force Only, 4400 lbs / 2000 Kg / 20 kN Capacity
$2,167.00
Accessories
ISO-17025
ISO-17025 Accredited Calibration with Certificate
$220.00
ADW-6010
Spare / Replacement Power Adapter for ZT / HTGS / DTXS
$66.00
CB-108
Analog Output Cable for ZTA / HTGS
$93.50
CB-208
RS-232 Cable for ZTA / HTGS
$93.50
CB-308
Digimatic Cable for ZTA / HTGS
$93.50
Force Recorder Software - Light Edition
$319.00
Force Recorder Software - Standard Edition
$440.00
Force Recorder Software - ProEdition
$704.00
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
Unavailable
