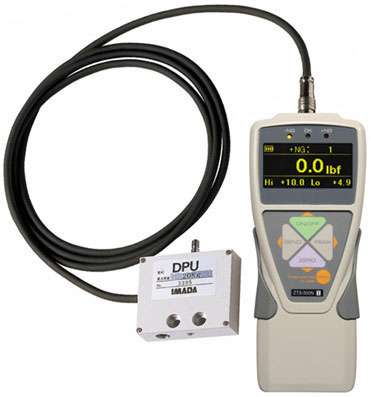

ZTA-DPU Digital Force Gauge with Remote Sensor

Made in Japan
ZTS-DPU / ZTA-DPU Digital Force Gauge Imada
Click images to enlarge.
11 Ranges up to 4,400 lbs

Easy-to-use menus make programming simple in eight languages. Select units, reverse display, set high/low setpoints, and all other functions in plain language.

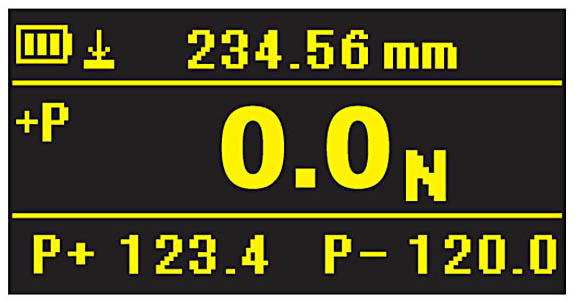

Electroluminescent display (ELD) shows force value, unit, and peak, and can be configured with additional user-selectable data including memory data, +NG count, high/low setpoints, 1st and 2nd peaks, displacement value (using atest stand with FA option), etc.

Color-coded LED indicators alert the user to Go/NoGo conditions. Orange lights for less than low setpoint, green lights between high and low, and red for over the high.

Process and transmit 2,000 actual data per second, not just the peak from a high sampling rate. Optional Force Recorder data acquisition software is designed to process up to 2,000 data per second.

Display force and displacement data on ZTA gauges with test stands equipped with FA option.

Save data to USB flash drives. Export peak data or capture continuous data at 100 data/second to flash drives with ZTA force gauges.

ZT Logger data acquisition software downloads data from the gauge memory or captures a continuous stream of data at 10 data/second. Zero the gauge or capture data while at the computer. All gauge programming can be set and saved from the software.

Features

  • Electroluminescent display (ELD) is highly visible in dark locations
  • Processes and transmits 2,000 data/sec.
  • Ergonomic design with non-slip grips, heavy duty metal construction
  • Overload capacity 200% F.S.
  • Multi-langauge program menus: English, Spanish, French, Chinese, German, Italian, Korean, Japanese
  • Color-coded LED indicators and output signal for Go/No Go testing
  • Display force and displacement data with FA test stand (ZTA Models only)
  • External switch display hold and clear
  • USB (virtual COM port), RS-232C, Digimatic and Analog outputs
  • Internal Ni-MH batteries or AC adapter
  • Real time and peak mode (selectable)
  • Overload alarm and output signal
  • lbf, kgf, and N units are selectable
  • Export gauge memory or save continuous data to USB flash drives (ZTA Models only)
  • All models up to 110 Lb capacity include standard attachments (hook, flat head, chisel, etc.)

Force Ranges

ModelCapacityResolution
ZTA-DPU-0.47.00 ozf
200.0 gf
2.000 N
0.01 ozf
0.1 gf
0.001 N
ZTA-DPU-118.00 ozf
500.0 gf
5.000 N
0.01 ozf
0.1 gf
0.001 N
ZTA-DPU-44.400 lbf
2.000 kgf
20.00 N
0.001 lbf
0.001 kgf
0.01 N
ZTA-DPU-1111.00 lbf
5.000 kgf
50.00 N
0.001 lbf
0.001 kgf
0.01 N
ZTA-DPU-4444.00 lbf
20.00 kgf
200.0 N
0.01 lbf
0.01 kgf
0.01 N
ZTA-DPU-110110.0 lbf
50.00 kgf
500.0 N
0.1 lbf
0.01 kgf
0.01 N
ZTA-DPU-220220.0 lbf
100.0 kgf
1000 N
0.1 lbf
0.1 kgf
1 N
ZTA-DPU-550550.0 lbf
250.0 kgf
2500 N
0.1 lbf
0.1 kgf
1 N
ZTA-DPU-11001100 lbf
500.0 kgf
5000 N
1 lbf
0.1 kgf
1 N
ZTA-DPU-22002200 lbf
1000 kgf
10.00 KN
1 lbf
1 kgf
0.01 KN
ZTA-DPU-44004400 lbf
2000 kgf
20.00 KN
1 lbf
1 kgf
0.01 KN

Related Products

Click image for more info
Force Recorder Data Acquisition Software

Specifications

Accuracy± 0.2% F.S., ± 1 LSD
Selectable Unitslbf(ozf), kgf(gf) or Newtons
Overload Capacity200% of F.S. (Overload indicator flashes beyond 110% of F.S.)
PowerRechargeable Ni-MH battery pack or AC adapter
Battery IndicatorIndicates three charge states high, med and low
MemoryNon-volative, recall up to 1,000 data
SetpointsProgrammable high/low setpoints w/ color-coded LEDs & output signal
OutputsOutputs USB (virtual COM port), RS-232C, Digimatic and ± 2 VDC analog output
Operating Temperature32 to 100 °F (0 to 40 °C)
AttachmentsAll models up to and including the "110" (110 Lb/50Kg/500N) are supplied with a full set of M6 threaded attachments including small hook, flat head, conical tip, extension rod and large hook. Higher capacity models are NOT supplied with any attachments.

Complete Kit

ZT-DPU ​Kit includes, force display, remote sensor with 6′ cable, ZT Logger data acquisition software, USB cable, AC adapter/charger, calibration cert traceable to NIST and carrying case.​

Downloads

Buy Now

Item Description Price
Remote Sensor Digital Force Gauge, 7 oz / 200 g / 2 N Capacity
$1,275.00
Remote Sensor Digital Force Gauge, 18 oz / 500 g / 5 N Capacity
$1,275.00
Remote Sensor Digital Force Gauge, 4.4 lb / 2 Kg / 20 N Capacity
$1,275.00
Remote Sensor Digital Force Gauge, 11 lbs / 5 Kg / 50 N Capacity
$1,275.00
Remote Sensor Digital Force Gauge, 44 lbs / 20 Kg / 200 N Capacity
$1,275.00
Remote Sensor Digital Force Gauge, 110 lbs / 50 kg / 500 N Capacity
$1,275.00
Remote Sensor Digital Force Gauge, 220 lbs / 100 Kg / 1000 N Capacity
$1,475.00
Remote Sensor Digital Force Gauge, 550 lbs / 250 Kg / 2500 N Capacity
$1,475.00
Remote Sensor Digital Force Gauge, 1100 lbs / 500 Kg/ 5000 N Capacity
$1,475.00
Remote Sensor Digital Force Gauge, 2200 lbs / 1000 Kg / 10 kN Capacity
$1,575.00
Remote Sensor Digital Force Gauge, 4400 lbs / 2000 Kg / 20 kN Capacity
$1,575.00
Accessories
ISO-17025
Upgrade from 3 point NIST traceable cert to ISO-17025 Certificate
$160.00
OH-1
Double Sided Handle For Digital Force Gauges up to 220 lbf
$85.00
ADW-6010
Spare / Replacement Power Adapter for ZT / HTGS / DTXS
$45.00
CB-108
Analog Cable
$75.00
CB-208
RS-232 Cable
$75.00
CB-308
Digimatic Cable
$75.00
Force Recorder Software - Light Edition
$260.00
Force Recorder Software - Standard Edition
$360.00
Force Recorder Software - ProEdition
$580.00
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
Unavailable
