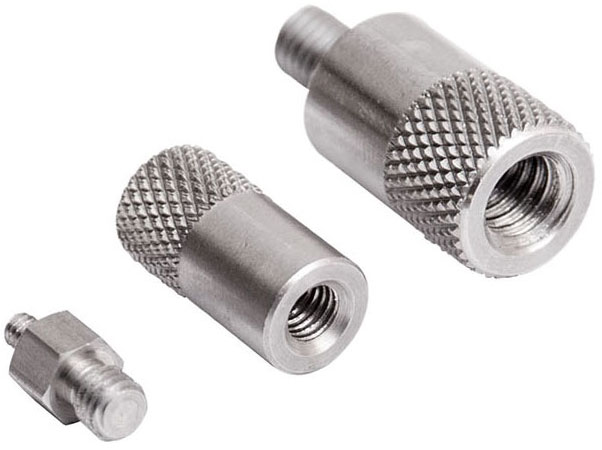

Thread Adapters Thread Adapters & Couplings

Click images to enlarge.
Connect force gauges and attachments with different thread sizes. Use them with a force gauge and a test stand to create a complete testing system.

Dimensions

Model Cap. lb [N] A B C
G1050 100 [500] 0.75 [19.1] #10-32F #4-40M
G1051 0.60 [15.2] #4-40M #10-32M
G1039 200 [1000] 0.75 [19.1] #10-32F #10-32F
G1030 0.50 [12.7] #10-32F 5/16-18M
G1057 0.75 [19.1] #10-32F M6F
G1060 0.75 [19.1] #10-32M #10-32M
G1063 1.30 [33.0] #10-32M 5/16-18F
G1047 0.75 [19.1] M4F #10-32M
G1048 0.75 [19.1] #10-32F M4M
G1054 0.75 [19.1] #10-32F M6M
G1040 500 [2500] 1.00 [25.4] 5/16-18M 5/16-18M
G1037 1.00 [25.4] 5/16-18F 5/16-18F
G1049 1.25 [31.8] 5/16-18F M6M
G1059 1.13 [28.7] 5/16-18F 1/2-20F
G1041 1.06 [26.9] 1/2-20M 5/16-18M
G1066 0.75 [19.1] 5/16-18F 1/2-20M
G1069 1.25 [31.8] 5/16-18F 1/4-28M

Buy Now

Item Description Price
G1050
#4-40M - #10-32F Thread Adapter
$20.00
G1051
#4-40M - #10-32M Thread Adapter
$20.00
G1039
Coupler, #10-32F to #10-32F
$15.00
G1030
#10-32F - 5/16-18M Thread Adapter
$20.00
#10-32F to M6F Thread Adapter
$20.00
#10-32M to #10-32M Thread Adapter
$20.00
#10-32M to 5/16-18F Thread Adapter
$20.00
G1047
#10-32F - M4F Thread Adapter
$20.00
G1048
M4M - #10-32F Thread Adapter
$20.00
G1054
Thread Adapter M6 Male to 10-32 Female
$20.00
G1040
5/16-18M - 5/16-18M Thread Adapter
$20.00
G1037
Coupler, #5/16-18F to #5/16-18F
$20.00
G1049
M6M - 5/16-18F Thread Adapter
$20.00
5/16-18F to 1/2-20F Thread Adapter
$20.00
1/2-20M to #10-32F Thread Adapter
$20.00
G1041
1/2-20M - 5/16-18M Thread Adapter
$20.00
5/16-18F to 1/2-20M Thread Adapter
$20.00
5/16-18F to 1/4-28M Thread Adapter
$20.00
Accessories
G1044
Adapter plate, 1/2-20F*
$55.00
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
Unavailable
* compatible with the following test stands: TSF, TSFM500(-DC), TSB100, TSC1000, and ES10/ES20 (when ordered with 14-1068 mounting plate)
