5 year warrantyMeasuring Range in Steel
0.0060 - 1.000 inches
0.150 - 25.40 mm

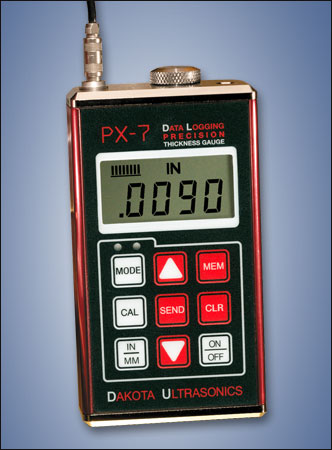

The PX-7DL is a precision ultrasonic wall thickness gauge specifically suited to make extremely precise and high-resolution measurements on thin-walled metal and plastics. It is packaged in a sturdy extruded aluminum housing which is sealed for excellent environmental protection assuring trouble-free use even in the toughest field and production environments.

The PX-7DL incorporates a built-in memory for 1000 data points that can be separated into 10 separate "batches." The stored data can be downloaded to a serial printer or a personal computer. A Windows compatible data transfer program is supplied at no additional cost.

The gauges have a MEASURING RANGE from 0.0060 to 1.0000 inch, (0.15 to 25.40 mm). Using a single element delay tip transducer, the gauges will measure thin materials and automatically remove any coatings in ECHO-TO-ECHO MODE as well as automatically switch to interface echo mode when measuring thicker materials and plastics.


  • Resolution of 0.0001 inch (0.001 mm)
  • Selectable units of inch or mm
  • Memory for 1000 data points in up to 10 batches
  • RS-232C Serial output for downloading stored data to a printer or computer
  • TI-007DL-GT model available with Graphite Tip for measuring plastics
  • Windows compatible data transfer program supplied at no additional cost.
  • Large, backlit LCD display retains last reading
  • CE Certified
  • Includes NIST-Traceable Calibration Certificate

Complete Kit

The PX-7DL is supplied as a complete kit with the gauge, probe, 4 oz. bottle of coupling fluid, 2 AA batteries, NIST-Traceable Calibration Certificate, data transfer software, RS-232 output cable, RS-232 to USB adapter and Operating Instruction Manual - all in a foam-fitted carrying case.


Range in Steel 0.0060-1.0000" (0.15-25.40 mm)
Resolution.0001" (0.001 mm)
Display4½ - Digit, 0.5" Backlit LCD
Velocity Range6,500-33,000 ft./sec (2000-10,000 m/sec.)
TransducerSingle element with delay tip. 10 to 22 MHz frequency range.
Probe WearfacePEEK (Polyethlethylketone)
Cable4 ft. (1.2 m) waterproof cable with non-polarized, quick-disconnect LEMO connectors. Optional lengths up to 100 ft. (30 m)
Serial OutputRS-232C (8, N, 1, user-set baud rate)
Temp. LimitsAmbient: -20 to 120° F (-30 to 50° C)
Material: 0 to 200° F (-20 to 100° C)
Battery TypeTwo AA batteries
Battery Life150 hours
Weight7 ounces (300g)
Size2.5 x 4.5 x 1.25"
(64 x 114 x 32 mm)
Accessories IncludedProbe/cable assembly. 4 oz. bottle of coupling fluid, NIST Calibration Certificate, 2 AA batteries, operating instructions, hard-plastic carrying case.
WarrantyGauge: 5 Years
Probes: 90 Days
Security Lock ModeHold down the DOWN ARROW Key as you power th gauge on. The "LOC" function with toggle on/off

Related Products

Certified Steel Test Blocks
Click image for more info
Certified Steel Test Blocks
- Includes NIST Traceable Calibration Certificate
- Precision Machined and Finished
- Includes Storage Box
SB4 & SB6 Uncertified Steel Test Blocks
Click image for more info
Ultrasonic Test Blocks without certification
- Fabricated from 1018 Steel or 304 Stainless Steel
- ISO Calibration OPTIONAL
TICC-M Protective Holder for Most TI Series Gauges, F-112-0005
Click image for more info
Protective Holder for Ultrasonic Gauges
- Constructed from heavy duty Cordura Nylon
- Built-in belt loop
CF12 Sound Safe Ultrasonic Couplant
Click image for more info
Coupling Fluid
- Temp Range: 0 - 200 °F, -18 - 93 °C
Click image for more info
Portable Printer for TI-25DL
- Small, portable and easy to use
- Prints statistical data from the TI-25DL Ultrasonic Wall Thickness Gauge
Click image for more info
Software for Thickness Gauges

Delay Line Tips for PX-7DL

P/N Description Standard / Optional Image
X-231-0000 1/4" x 3/8"
for all metals
X-241-0000 1/4" x 1/2"
for all metals
X-633-0000 1/4" x 3/8"
Graphite Tip
for thin plastics
(Graphite Short)
Standard on "-GT" models
X-532-0000 3/16" x 3/8"
Conical Tip
for all metals
X-533-0000 3/16" x 3/8"
Graphite Tip
for thin plastics
(Graphite Cone)

Buy Now

Item Description Price
Replaced by PZX-7DL PX-7DL Data Logging Ultrasonic Wall Thickness Gauge kit with T-402-5507 probe, Z-130-0001
Protective Holder for Most TI Series Gauges, F-112-0005
SoundSafe Coupling Fluid - 12 oz / 354 ml - NSN: 6635-01-553-0559
1/4" x 3/8" Length Delay Line - OLD PN X-231-0000
1/4" Diameter x 1/2" Length Delay Line Tip - OLD PN X-241-0000
1/4" Diameter x 3/8" Length Graphite Tip Delay Line
3/16" Diameter x 3/8" Length Cone Tip Delay Line
1/8" Diameter x 3/8" Length Cone Tip Delay Line
3/16" Diameter x 3/8" Length Graphite Cone Tip Delay Line
RS232 to USB Adapter
1/4" diameter, 15 MHz delay line transducer with cable, 1/2" and 3/8" length delay line tips
LEMO 00 - Microdot Single Probe Transducer Cable, 4 foot length
