Pulse-Echo Mode (Pit & Flaw Detection) measures from 0.025 to 19.999 inches (0.63 to 500 millimeters).
Echo-Echo Mode (Through Paint & Coatings) measures from 0.1 to 1 inch (2.54 to 25.4 millimeters).

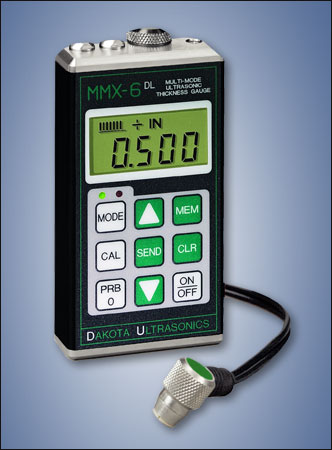

The new CHECK-LINE MMX-6DL Wall Thickness Gauge accurately measures wall thickness and the extent of corrosion of all metals, ceramics, glass and most rigid plastics - from only one side!
The MMX-6DL can be used in a Single Thickness Reading mode or in a Scan mode, where the probe is dragged over a large measuring area. The minimum thickness reading recorded during the "scan" will be displayed.
The MMX-6DL incorporates a built-in memory for 1000 data points that can be separated into 10 separate "batches." The stored data can be downloaded to a serial printer or a personal computer. A Windows compatible data transfer program is supplied at no additional cost.
The MMX-6DL probe is waterproof and can be submerged in water. The gauge is impact-resistant and environmentally sealed to provide trouble-free operation under the toughest field conditions.
- Ability to measure through paint and eliminate coatings
- Resolution of 0.001 inch (0.01 mm)
- Large, backlit LCD display retains last reading
- Simple operator controls virtually eliminate training
- RS-232C Serial output for downloading stored data to a printer or computer
- Memory for 1000 data points in up to 10 batches
- Special-purpose probes are offered for a variety of applications
- Switch-selected units for inches or mm
- For underwater surveying, probe cable lengths up to 50 feet are optionally
- CE Certified
- Includes NIST-Traceable Calibration Certificate
|Minimum Radius for Convex Surfaces||0.350" (8.89 mm)|
|Minimum Radius for Concave Surfaces||3" (76.2 mm)|
|Minimum Headroom||1" (25.0 mm)|
|Minimum Sample Diameter||0.150" (3.8 mm)|
|Minimum Substrate Thickness - F||NA|
|Minimum Substrate Thickness - NFe||NA|
|Range||Pulse-Echo Mode(Pit & Flaw Detection) measures from 0.025 to 6.000 (up to 19.999 inches if uncoated using T-102-2000 probe)|
0.63 to 150 millimeters (up to 500 mm if uncoated using T-102-2000 probe).
|Resolution||.001" (0.01 mm)|
|Display||4½ - Digit, 0.5" Backlit LCD|
|Velocity Range||0.0492 to .3937 in./µs. (1250 to 10,000 meters/second)|
|Probe||5 MHz, 0.25" Diameter (6.35 mm)|
|Probe Wearface||PEEK (Polyethlethylketone)|
|Cable||4 ft. (1.2 m) waterproof cable with non-polarized, quick-disconnect connectors. Optional lengths up to 50 ft. (15 m).|
|Temp. Limits||Ambient: -20 to 120° F (-30 to 50° C)|
Material: 0 to 200° F (-20 to 100° C) Special high temperature probes are optionally available
|Serial Output||RS-232C (8, N, 1, user-set baud rate)|
|Battery Type||Two AA batteries|
|Battery Life||200 hours|
|Weight||7 ounces (196 g)|
|Size||2.5 x 4.5 x 1.25"|
(64 x 114 x 32 mm)
|Accessories Included||Probe/cable assembly. 4 oz. bottle of coupling fluid, NIST Calibration Certificate, 2 AA batteries, operating instructions, hard-plastic carrying case.|
|Warranty||Gauge: 5 Years|
Probes: 90 Days
Replaced by ZX-6DL Dakota MMX-6DL Thickness Gauge Complete Kit, Z-143-0001
Replaced by ZX-6DL Dakota MMX-6DL-ER Thickness Gauge Complete Kit, Z-143-0002
Protective Holder for Most TI Series Gauges, F-112-0005
SoundSafe Coupling Fluid - 12 oz / 354 ml - NSN: 6635-01-553-0559
V-Block Transducer Holder (For 3/16" & 1/4" Transducers only), F-000-7001
RS232 to USB Adapter
1/4" diameter, 5.0 MHz Hi-Damped transducer for thru paint measurement, Side In, Potted
1/2" diameter, 3.5 MHz Hi-Damped transducer for thru paint measurement
1/4" diameter, 5.0 MHz dual element transducer Hi-Temp (900 F/500 C) Top in, Microdot
