- Conforms to ASTM D7378
- No calibration adjustment required for most powders
- Storage of 999 readings with onscreen averaging.
- Stored readings can be downloaded to PosiSoft Desktop Software
- Easy-to-read digital display with a simple, icon based menu
- Target Grid simultaneously displays distance to the part and alignment, making measurements easy
- No cable to risk disturbing the applied powder
- Mils/microns switchable
- Uses alkaline or rechargeable batteries
- Solvent, acid, oil, water and dust resistant — ideal for harsh powder coating environments
- Two year warranty
- Improved sensor technology allows easier measurement on small tubes, odd shapes and moving parts

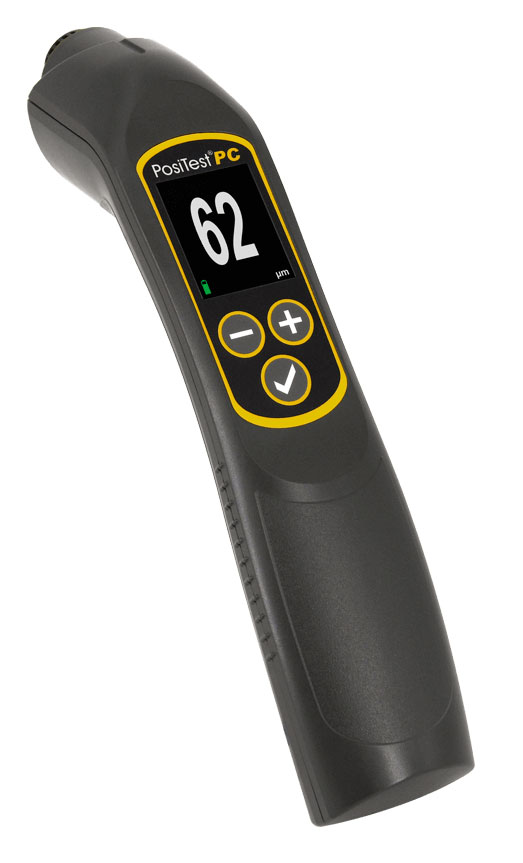

The PosiTest PC has been completely redesigned as a dedicated stand-alone unit and is now part of the PosiTest family of instruments. No PosiTector gage body required.
Why measure uncured powder?
Coatings must be applied within certain minimum and maximum dry film thickness specifications. But waiting to measure coating thickness after curing can result in product waste and production delays. Accurate measurement at the time of application:
• Eliminates over usage
• Improves quality
• Controls set-up
• Reduces rework & waste
• Saves money!
How does it work?
The probe uses airborne ultrasound to non-destructively analyze applied powder in seconds.
Is a Certificate of Calibration included with the PosiTest PC?
No. Certificates of Calibration show traceability to a National Standard and no uncured powder thickness standard exists at this time. The PosiTest PC Powder Checker is an in-process tool. To validate the PosiTest PC’s readings and confirm the final thickness meets specifications, measure the cured coating with a PosiTector 6000 or PosiTest DFT dry film thickness gage. Our dry film thickness gages include a Certificate of Calibration.
Is the PosiTest PC suitable for on-line applications?
Yes. The PosiTest PC has the ability to stream positioning and measurement data via its USB port, and can be integrated into on-line, automated applications with appropriate fixturing. To ensure the USB cable stays reliably connected, the USB Retention Fixture accessory is recommended.
Does the PosiTest PC imprint or dimple the powder?
No. The PosiTest PC is a non-contact instrument and there are no cables to accidentally brush and disturb the powder.
Do I have to hold the instrument steady during measurement?

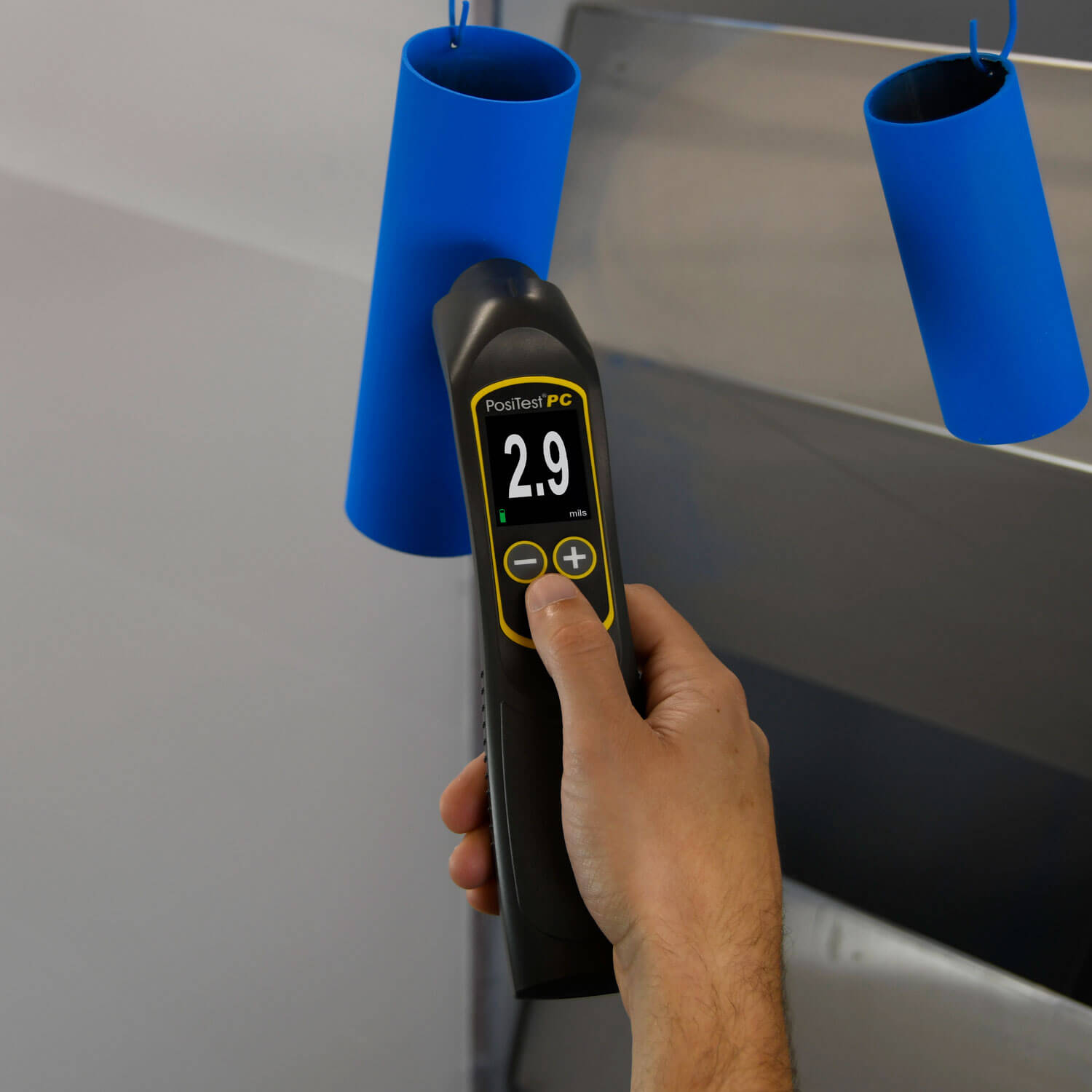

No. In fact, the PosiTest PC performs best when there is slight movement. It was designed to measure moving parts on swinging hooks.
Can the PosiTest PC store or print data?
Yes. The PosiTest PC can store up to 999 readings in one batch. Stored readings can be downloaded to PosiSoft Desktop software for record keeping and review.
What types of batteries are used?
The instrument uses 4 “AAA” alkaline batteries(included) providing 16 hours of continuous measurement.
Do your instruments require any formal training for use? Do you offer ‘demo’ models?
No. Our instruments are designed for simple operation, feature easy-to-use menus, both full and quick instruction manuals, and helpful videos. In lieu of demonstration models, we provide unlimited technical support via telephone and/or email, and a limited 30-day money back guarantee.
|Range||0.8 - 4.0 mils / 20 - 100 µm (based on TGIC-Free Polyester powder)|
|Resolution||0.1 mils / 1 µm|
|Accuracy||± 0.2 mils / ± 5 µm|
|Measurement Time||1-3 seconds|
|Measurement Distance to Powder||0.75 inch / 19 mm|
|Measurement Area||0.08 inch / 2 mm|
|Dimensions||9.5 x 2.5 x 2.0 inch / 241 x 64 x 51mm|
|Weight||6.4 oz / 180g without batteries|

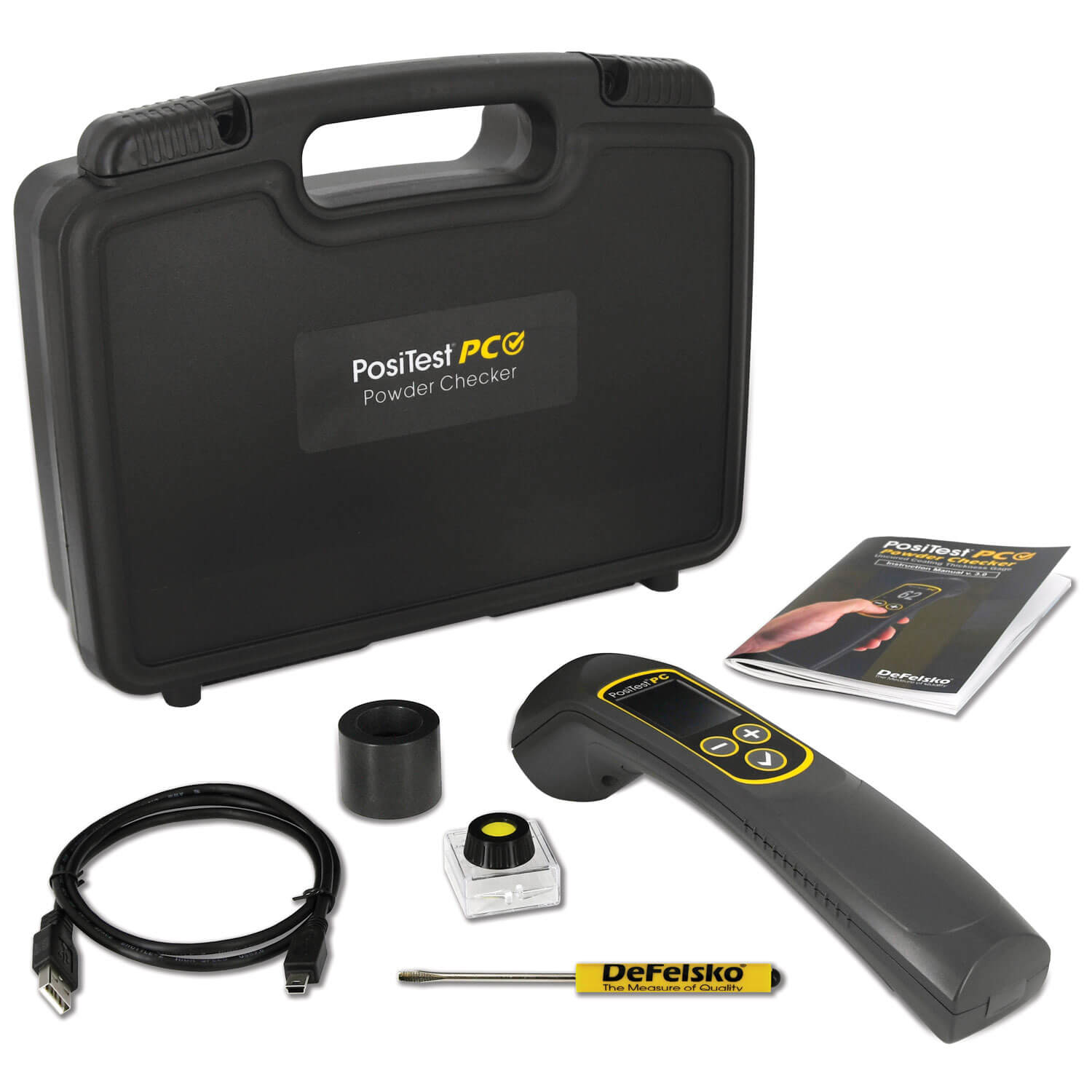

Non-contact Uncured Powder Thickness Gage Kit - PC-B
Non-contact Uncured Powder Thickness Gage Kit with DFT-F
Non-contact Uncured Powder Thickness Gage Kit with DFT-C
Non-contact Uncured Powder Thickness Gage Kit with 6000-FS1
Non-contact Uncured Powder Thickness Gage Kit with 6000-FS3
Non-contact Uncured Powder Thickness Gage Kit with 6000-FNS1
Non-contact Uncured Powder Thickness Gage Kit with 6000-FNS3
Probe Screens (2) for PosiTest-PC
USB Retention Fixture for PosiTest-PC
