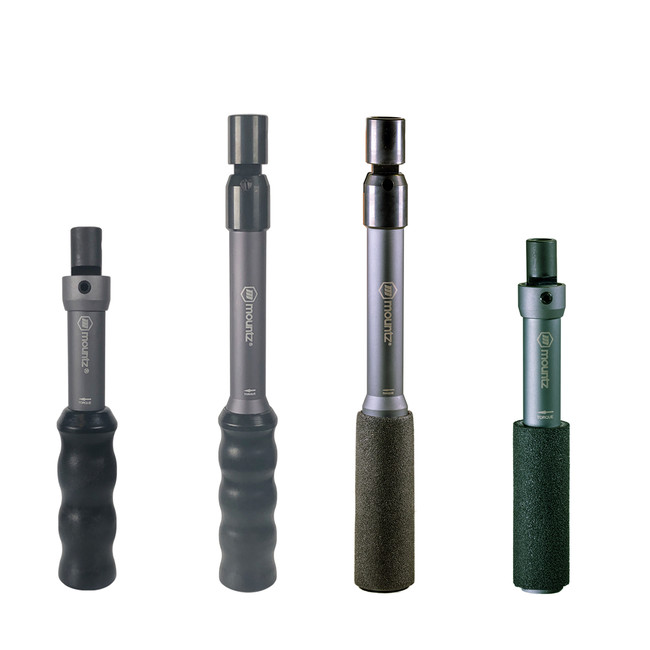

Engineered and assembled in Silicon Valley, the Mountz TBX line of precision preset break-over wrenches ensures consistent process and quality control. Designed to tighten various types of fasteners accurately, the TBX break-over wrench informs the operator when the proper torque is reached by deflecting at the pivot point near the tool's end. The unique break-over mechanism gives an operator ample time to react once the target torque is achieved and stop applying additional force to the fastener. The Mountz break-over technology increases the consistency of torque delivered and joint reliability. The flexible preset wrench can adapt to different fastening applications as it is compatible with varying head options like an open end, box end, hex key end, or a ratchet head.
| Model | Item # | American | N.m | Drive Size | Length in | Length mm | Wt. lbs. | Wt. g. | Break |
|---|---|---|---|---|---|---|---|---|---|

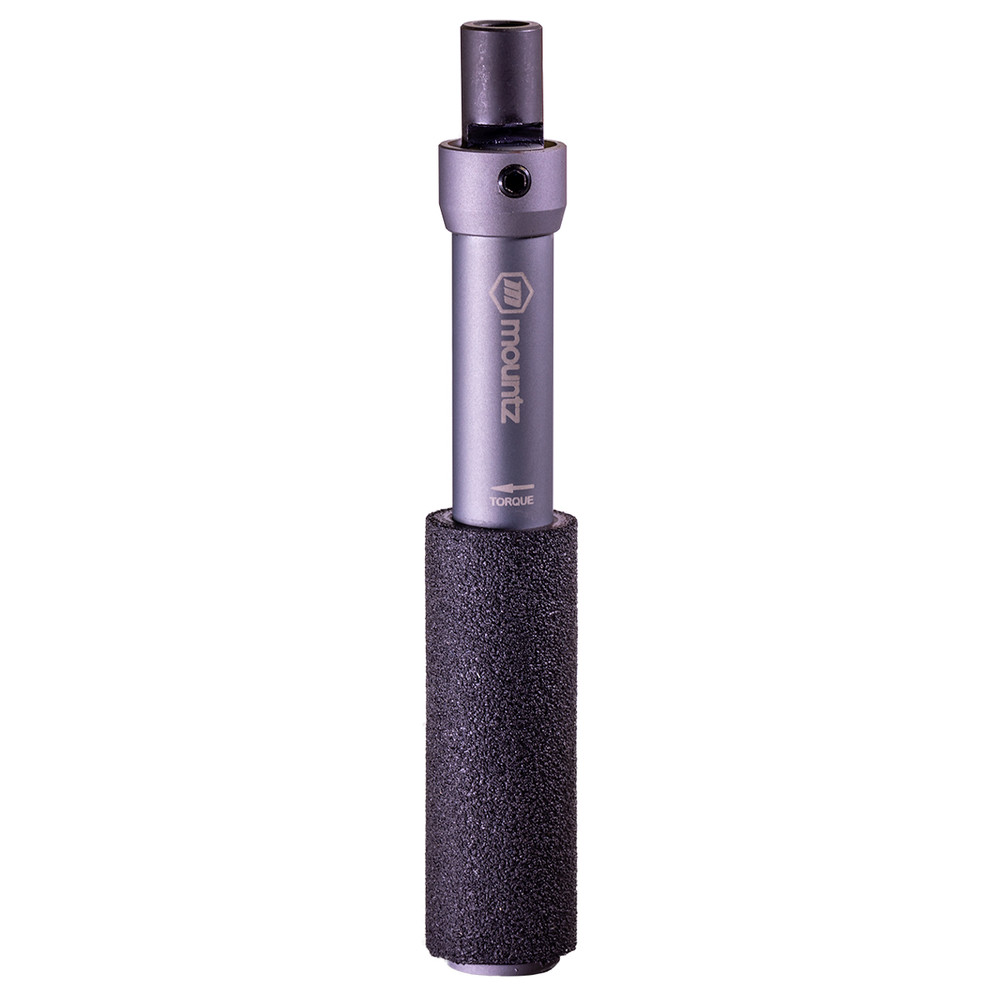

| TBX-12 | 076815 | 21.2–106.2 lbf.in | 2.4–12 N.m | Type A | 6" | 152 | 0.8 lbs | 363 | 20° or 90 |

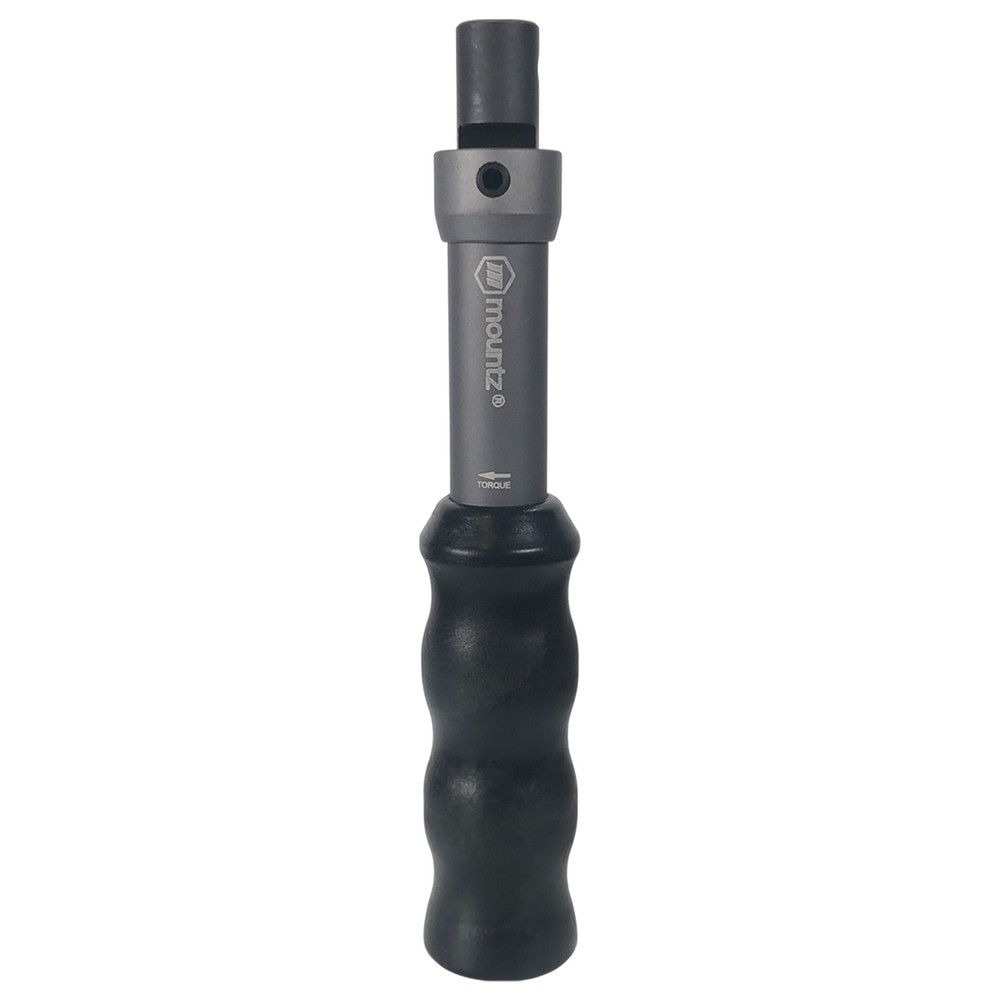

| TBX-12 ESD | 076818 | 21.2–106.2 lbf.in | 2.4–12 N.m | Type A | 6" | 152 | 0.8 lbs | 363 | 20° or 90 |

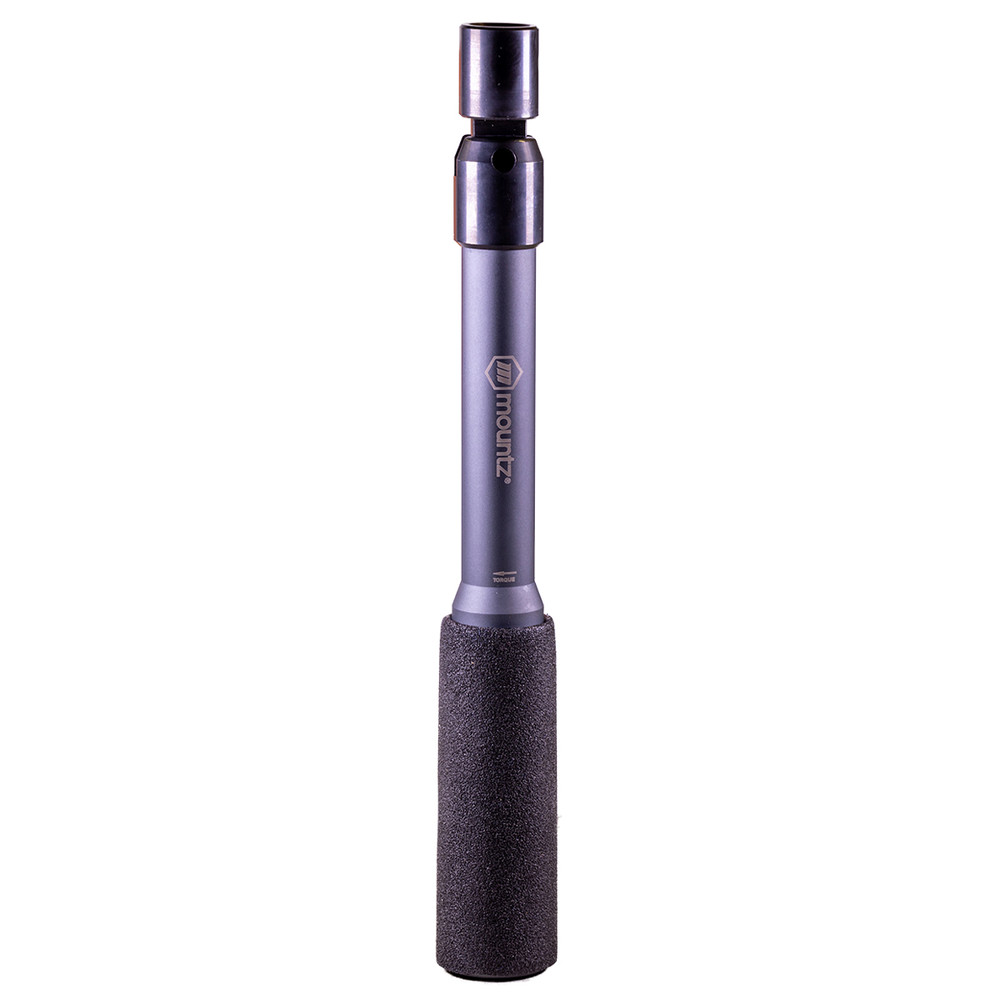

| TBX-25 | 076816 | 44.3–221.3 lbf.in | 5–25 N.m | Type B | 10.4" | 264 | 1.6 lbs | 726 | 20° |

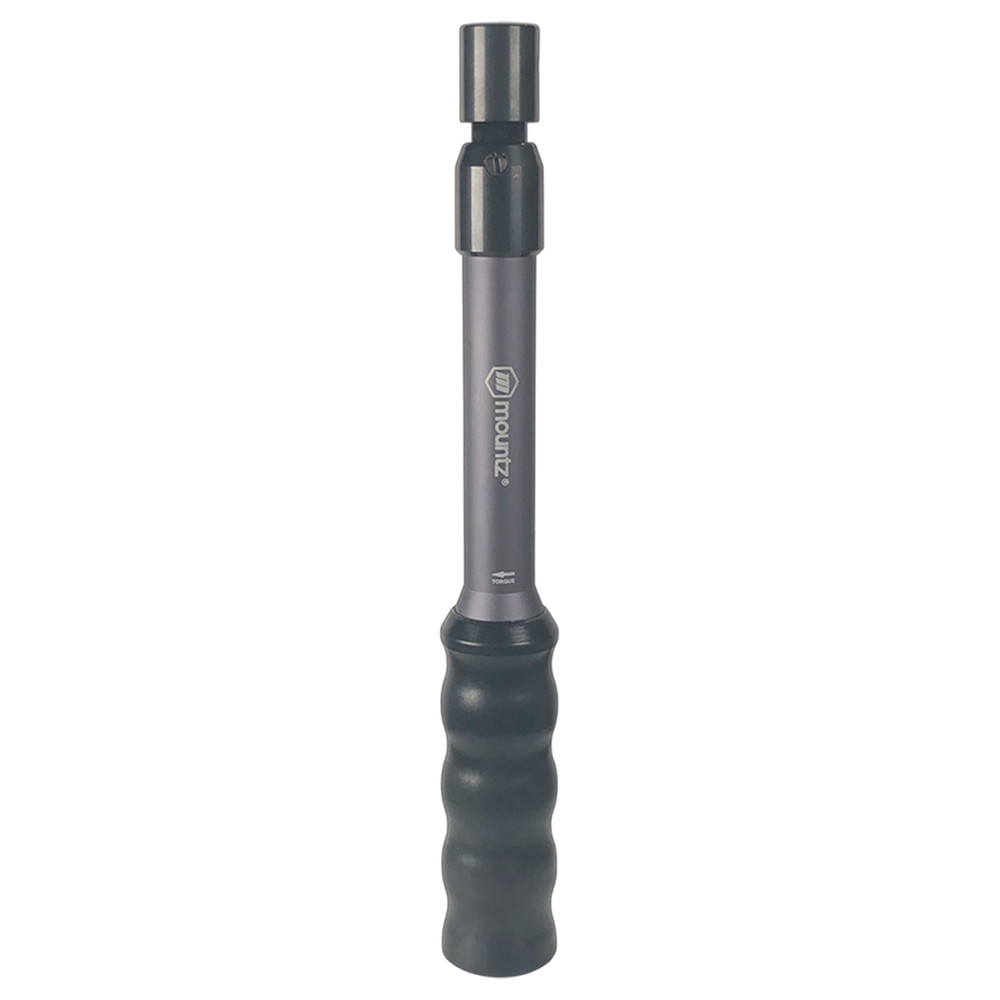

| TBX-25 ESD | 076819 | 44.3–221.3 lbf.in | 5–25 N.m | Type B | 10.4" | 264 | 1.6 lbs | 726 | 20° |
- Torque limiting wrench improves control of the tightening process
- Reduces the risk of both over and under-tightening
- Break-over mechanism provides a visual indicator of achieving torque setting
- Interchangeable end fitting design - selectable head types and sizes
- Calibration life 4x ISO standards
- Unmatched quality you can count on
- ISO 6789-1:2017 Compliant
- Break-Over Technology: Limits the amount of torque applied
- Internal mechanism prevents accidental torque setting changes
- Anodized aluminum end cap for all models
- Ergonomic handle with a non-slip cushion can improve the operator's efficiency
- The end fitting of the wrench allows different head types and sizes to be exchanged and attached
| ISO 6789-1:2017 | Mountz 4x ISO standards: 20,000 cycles before re-calibration |
| Item | Description | Price | ||
|---|---|---|---|---|
TBX 12 ESD Break-Over Torque Wrench 2 / 12 Nm | $480.00 | |||
TBX 12 Break-Over Torque Wrench 2 / 12 Nm | $410.00 | |||
TBX 25 Break-Over Torque Wrench 5 / 25 Nm | $500.00 | |||
TBX 25 ESD Break-Over Torque Wrench 5 / 25 Nm | $555.00 |
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
Unavailable
