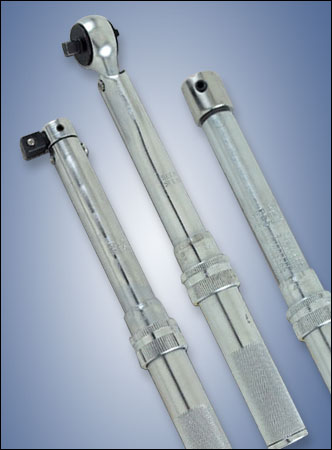

SM-Series Click Torque Wrench

Made in USA
Click images to enlarge.
Adjustable Click Type Torque Wrenches utilize a micrometer type adjustment mechanism to allow selection of torque value within the capacity of the tool.

Twist locking action prevents accidental changing of torque settings.

When selected torque value is achieved, a distinct click is felt and heard, followed by a sudden release through several degrees of free movement.

Features

  • Ideal for tight spots where dial wrenches would prove impractical.
  • Manufactured from alloy steel and chrome plated.
  • Accuracy +/- 4% + 1 lb-in
  • Supplied with NIST Traceable Calibration Cert

Torque Ranges

ModelRangeSquare DriveGraduationsHead StyleLength

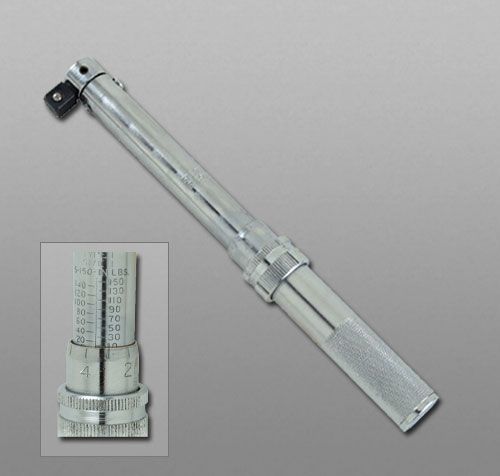

SM-150-T2530 - 150 in-lbf1/4"1 in-lbfFixed Head8"
SM-150-T3730 - 150 in-lbf3/8"1 in-lbfFixed Head8"

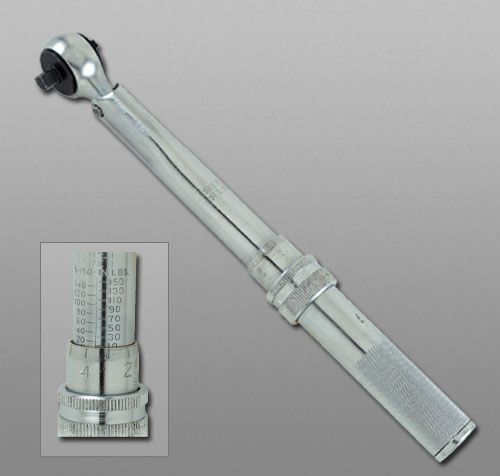

SM-150-R2530 - 150 in-lbf1/4"1 in-lbfRatchet Head9 1/4"
SM-150-R3730 - 150 in-lbf3/8"1 in-lbfRatchet Head9 1/4"

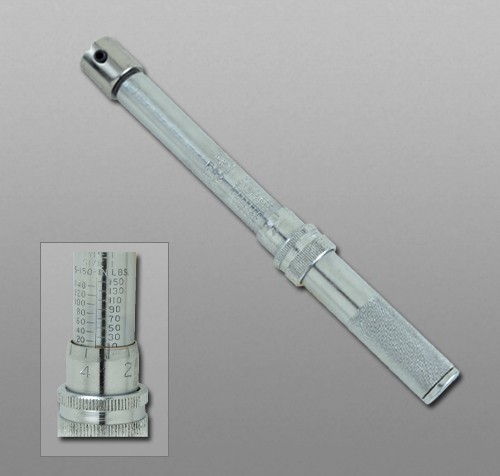

SM-150H30 - 150 in-lbf-1 in-lbfInterchangeable Head9 1/4"

Model B Heads

Model B Heads for SMH-150. 10 head sizes available:
  • 3/8"
  • 7/16"
  • 1/2"
  • 9/16"
  • 5/8"
  • 11/16"
  • 3/4"
  • 13/16"
  • 7/8"
  • 1"

Related Products

Torque Tool Tester
Click image for more info
Torque Tool Tester - AWS-QC
- Bidirectional accuracy of ± 1% of indicated reading
Digital Torque Wrench DTW
Click image for more info
DTW
Digital Torque Wrench
- CW and CCW operation
- Buzzer and LED indicator for the pre-settable target torque

Buy Now

Item Description Price
SM-150-T25 1/4" Drive Adjustable Click Type Torque Wrench Fixed Head 30-150 in-lbf
$496.60
SM-150-T37 3/8" Drive Adjustable Click Type Torque Wrench Fixed Head 30-150 in-lbf
$496.60
SM-150-R25 1/4" Drive Adjustable Click Type Torque Wrench Ratchet Head 30-150 in-lbf
$517.45
SM-150-R37 3/8" Drive Adjustable Click Type Torque Wrench Ratchet Head 30-150 in-lbf
$517.45
SM-150H Adjustable Click Type Torque Wrench Interchangeable Head 30-150 in-lbf
$496.60
Accessories
T2-CERT
Upgrade to long form calibration cert with data (per item)
$140.00
MBH-3/8
Model B Head for SM-150H 3/8"
$47.95
MBH-7/16
Model B Head for SM-150H 7/16"
$47.95
MBH-1/2
Model B Head for SM-150H 1/2"
$47.95
MBH-9/16
Model B Head for SM-150H 9/16"
$47.95
MBH-5/8
Model B Head for SM-150H 5/8"
$47.95
MBH-11/16
Model B Head for SM-150H 11/16"
$47.95
MBH-3/4
Model B Head for SM-150H 3/4"
$47.95
MBH-13/16
Model B Head for SM-150H 13/16"
$47.95
MBH-7/8
Model B Head for SM-150H 7/8"
$47.95
MBH-1
Model B Head for SM-150H 1"
$47.95
