TCM Bottle Cap Torque Analyzer - DISCONTINUED

Made in UK
Click images to enlarge.
DISCONTINUED, we recommend the CAP-TT01 as a replacement.

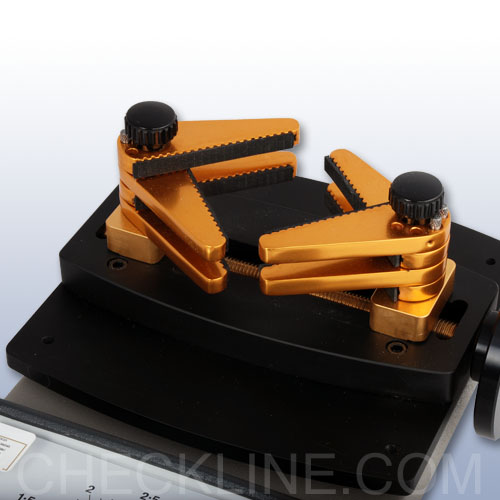

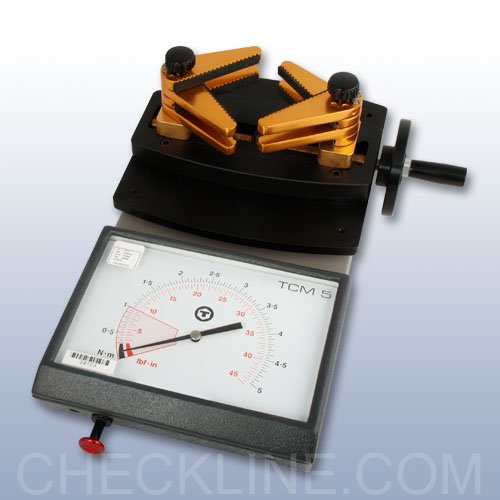

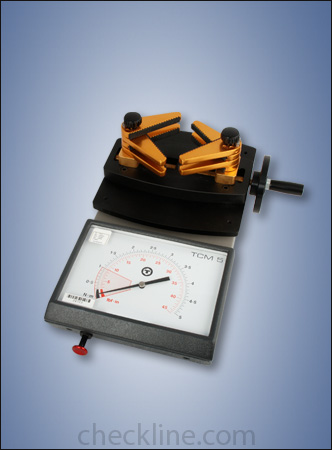

The TCM Bottle Cap Torque Analyzer accurately measures twist-off and twist-on force. The TCM is an ideal tester for bottlers, food and beverage companies, and others who need to measure closure torque. The versatile clamping jaws securely hold a multitude of shapes and sizes within its adjustable grips. The TCM closure torque analyzer captures peak torque in both clockwise and counterclockwise directions for application and removal measurements.

Check that the correct torque has been applied to caps to ensure quality product:

  • Minimal leakage & deterioration
  • Safe storage and transportation
  • Correctly sealed yet easy to open


  • Captures Peak Torque
  • Easy to read dual scale
  • Bi-directional measurement
  • Includes NIST-Traceable Calibration Certificate

Operating Procedure

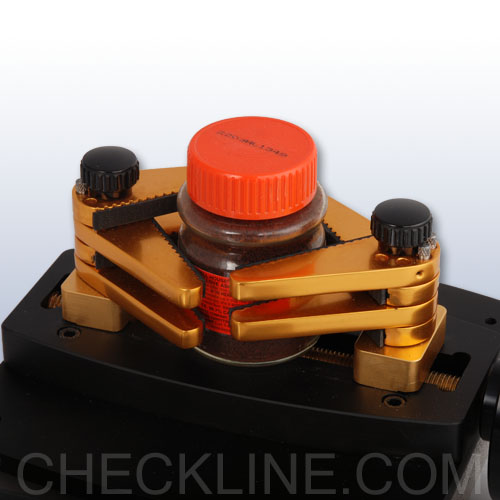

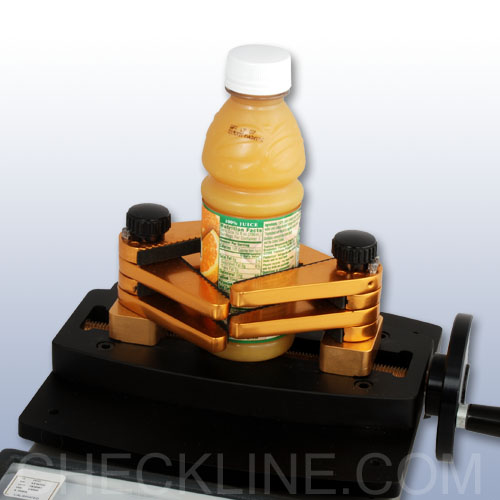

Simply place jar into jaws, clamp jar snug (don’t over clamp), then push the red reset button on the front of the unit.

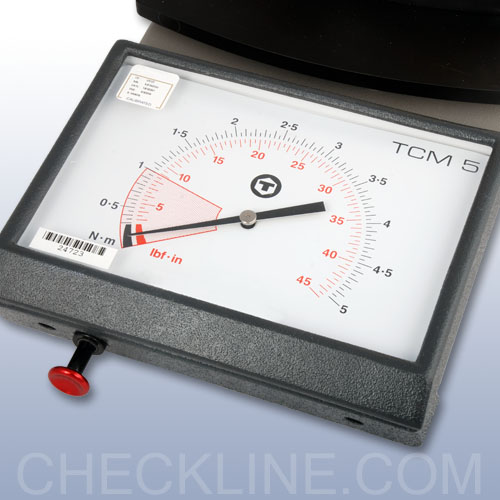

Then twist lid and read the torque measured on the dial indicator.

Force Ranges

TCM110-140 ozf-in
7-100 cn-M
2 ozf-in
1 cN-m
TCM53-45 lbf-in
0.3-5.0 N-m
0.5 lbf-in
0.05 N-m
TCM104-90 lbf-in
0.5-10 N-m
1 lbf-in
0.1 N-m
TCM154-132 lbf-in
1-15 N-m
2 lbf-in
0.2 N-m
