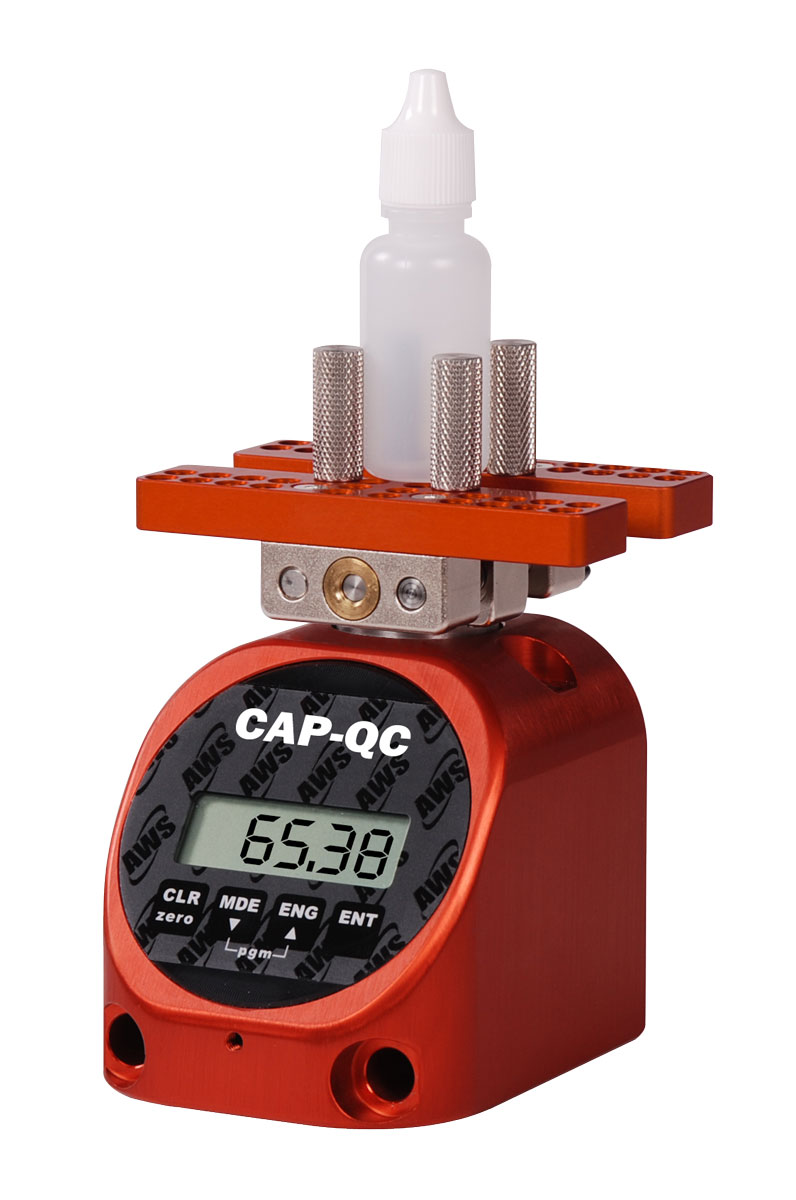

CAP-QC Vial Cap Torque Tester

Made in USA
Cap Torque Tester for Vials, Eye Droppers and other small containers
Click images to enlarge.
Diameters: 0.2" up to 3.5" (5.1 - 89.0 mm)

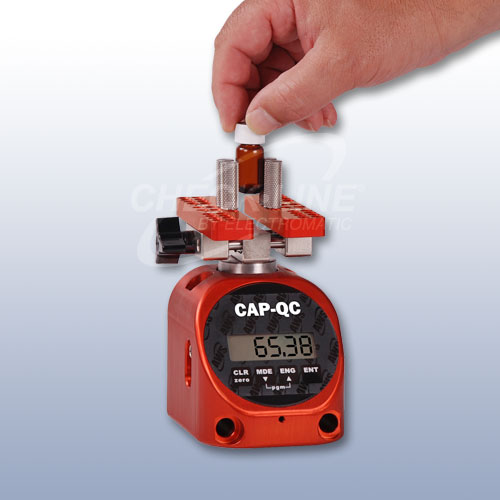

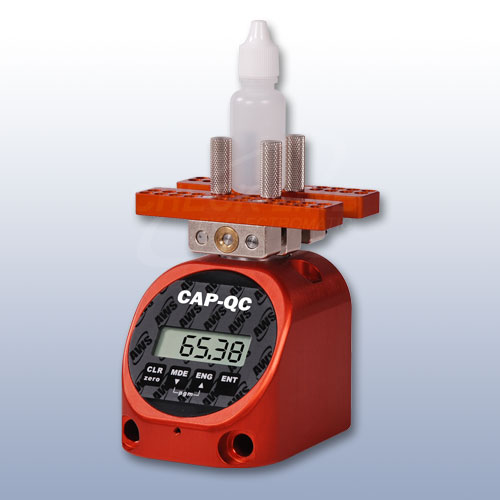

The CAP-QC is designed for measuring open and closure torque on small diameter bottles and vials used in the pharmaceutical and cosmetic industry. Compact, light weight aluminum housing with internal rechargeable battery makes for ease of transport so the CAP-QC can be used anywhere from the lab to the production line. Intuitive menu system allows the user to quickly select measuring units and operation mode. Peak mode holds max open or close torque on the display until it is reset for the next test.

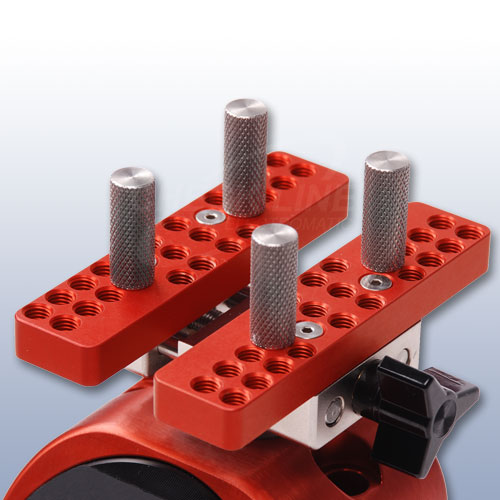

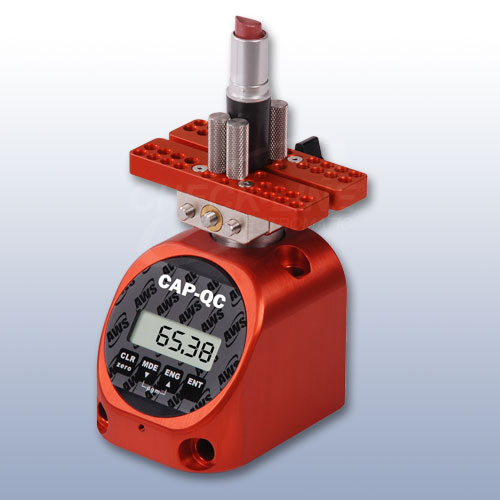

Lightweight, sturdy cap grip features multiple threaded holes with four (4) screw-in posts to accommodate a wide variety of containers types from 0.2" up to 3.5" (5.1 - 89.0 mm) including vials, drams, lipstick & perfume packages as well as many other samples.

Features

  • Bidirectional accuracy of ±1% of indicated reading
  • Eight (8) selectable engineering units: Oz.in., Lb.in., Lb.ft., Nm, cNm, KgfCm, gfCm, Kgfm
  • 3 modes of operation: Track, Peak and 1st Peak
  • Rugged Aluminum construction
  • NiMH rechargeable batteries provide 8-10 hours of continuous use. Supplied with AC-Adapter/Charger
  • Lightweight, sturdy cap grip features multiple threaded holes with four (4) screw-in posts to accommodate a wide variety of containers types (G1058-25M)
  • Includes NIST-Traceable Calibration Certificate

Force Ranges

ModelCapacity
CAP-QC-100z100 Oz-in
6.25 in-lb
70 N-cm
CAP-QC-200z200 Oz-in
12.50 in-lb
140 N-cm

Specifications

Calibrated Range10-100% Full Scale, bi-directional
Accuracy±1% of indicated (within calibrated range)
Resolution4 Active Digits
Overload Protection200% Full Scale bi-directional
Operating ModesTrack, Peak
Memorydata storage of up to 999 readings
Data OutputRS-232, Single Value, no continuous output
Alarm LimitsPanel Mounted LED for Visual Alarm Limits
PowerInternal NiMH battery, 9V Charger (included)
Weight3lbs
Operating Temp32 - 120 °F (0-50 °C)
Warranty1 Year
Attachment Part NumberG1058-25M
Calibration CertificateIncludes NIST Traceable calibration certificate with data

Buy Now

Item Description Price
Cap Torque Tester, 100 Oz-in / 6.25 in-lb / 70 N-cm Capacity
$1,595.00
Cap Torque Tester, 200 Oz-in / 12.5 in-lb / 140 N-cm Capacity
$1,595.00
Accessories
TT-QC-MK
Mounting kit for TT-QC, includes two 5.5" bolts (3/8" Diameter) 2 Wing Nuts and washers for Mounting on a table 1.1" - 2.25" Thick
$14.95
ISO-17025-CT
ISO-17025 Calibration & Certification for Cap Torque Tester
$325.00
Waterproof Carrying Case for TT-QC
$125.00
Software
TTS-SOFT
Torque To Spreadsheet Basic Data Transfer Software, Includes Mini Plug to USB Cable
$165.00
Torque Tester Software, For Data Analysis and Collection, includes Mini Plug to USB Cable
$275.00
