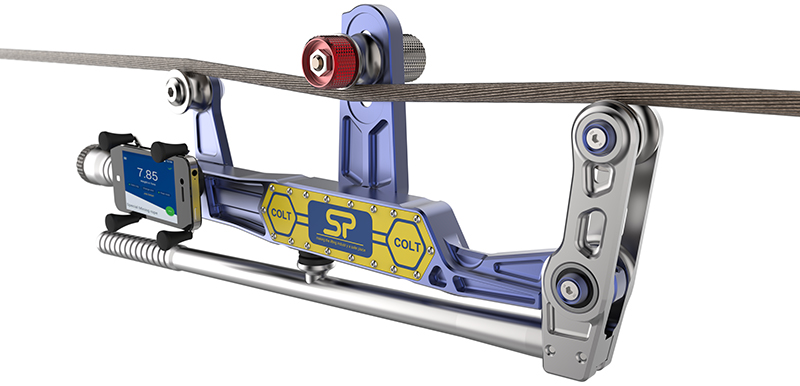

A built-in high accuracy, Bluetooth module transmits load data wirelessly to any smart device running our Android or iOS app. An adjustable device holder allows the COLT to be used as a traditional tension meter with onboard display or the smartphone can be handheld or mounted elsewhere.
The latest COLT App has two key modes, one for measuring tension on static wire rope lines and the other for the installation, repair and maintenance of elevator cars.
Wire Rope Mode:
• Records GPS coordinates
• Logs the local temperature and wind speed from local NOAA
• Multi anchor data logging with camera mode for a photo on your report
Elevator Mode:
• Car weighing – measure tension on each cable and automatically calculate car weight
• Car balancing – measure and calculate the balance of load across up to 10 cables

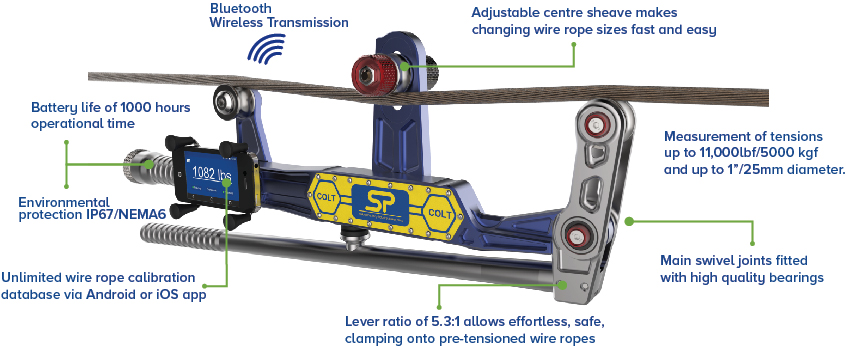

- Includes Traceable Calibration Certificate
- Water resistant design for all weather use
- 2400 hour battery life
- Bluetooth connectivity enabling operator to stand at safe distance if needed
- Lever ratio of 5.3:1 allows effortless, safe, clamping onto pre-tensioned wire ropes

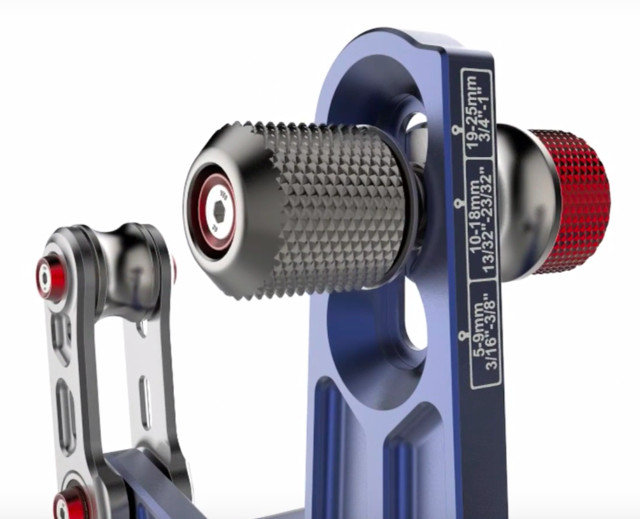

- Adjustable center sheave makes changing wire rope sizes fast and easy
- Constantly growing library of calibrations available to all COLT users
- NEW Elevator Mode for Car Balancing and Weighing
- Guy wire maintenance on cell towers, bridges, stacks, antennas & masts.
- Guy Tension & Tower Alignment
- Guy Tower Plumb & Tension
- Testing for plumb and tension on cell towers
- Guyed tower installation tips
- Guyed tower deployment
- EHS guy wire, Turnbuckle tensioner.
- Wire rope installations, comparing, equalizing & measuring
- Median cable barrier tensioning
- Utility cable overhead line monitoring
- Elevator hoist, governor & compensating wire rope maintenance
- Zip lines & assault course testing
- Fall arrest systems
- Metro, tram and rail transit electric wires & catenary testing
- Ski lifts
| Model | Capacity | Resolution |
|---|---|---|
| COLT5T | 11,000 lbs / 5,000 kg | 20 lb / 10 kg |

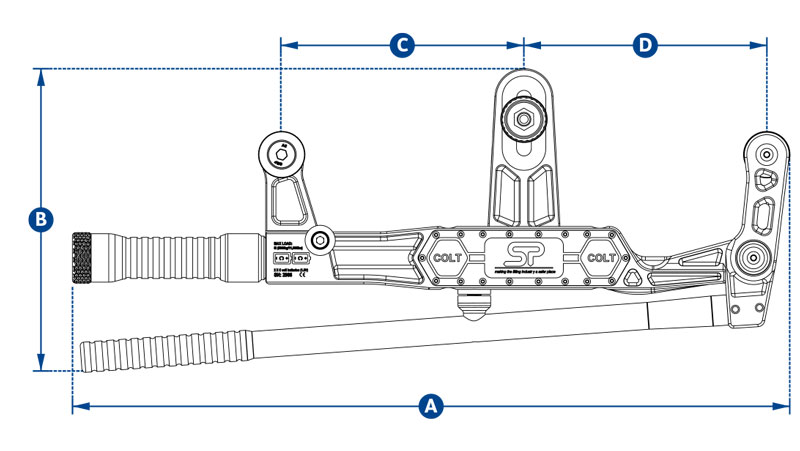

| A | B | C | D | |
|---|---|---|---|---|
| COLT5T | 23.2" / 589mm | 10.0" / 254mm | 7.9" / 200mm | 7.9" / 200mm |
| Units | kg, lbs, tonne and kN |
| Accuracy | ± 3% of full scale if wire rope ⌀ and construction known |
| Min Wire Rope ⌀ | ⌀3/16" / ⌀5mm |
| Max Wire Rope ⌀ | ⌀1" / ⌀25mm |
| Max Line Reduction | 7/32" with a ⌀3/8" wire rope / 5mm with a ⌀10mm wire rope |
| Wire Rope Database | Infinite via Android 4.4 or iOS 8.0 app |
| Weight | 7.7lbs / 3.5kg |
| Battery Type | 2x C cell batteries |
| Battery Life | 2400 hours Bluetooth transmission time |
| Operating Temp | -13°F to +158°F / -25°C to +70°C |
| Protection | NEMA 6 / IP67 |
| Communication | Bluetooth 4.1 |

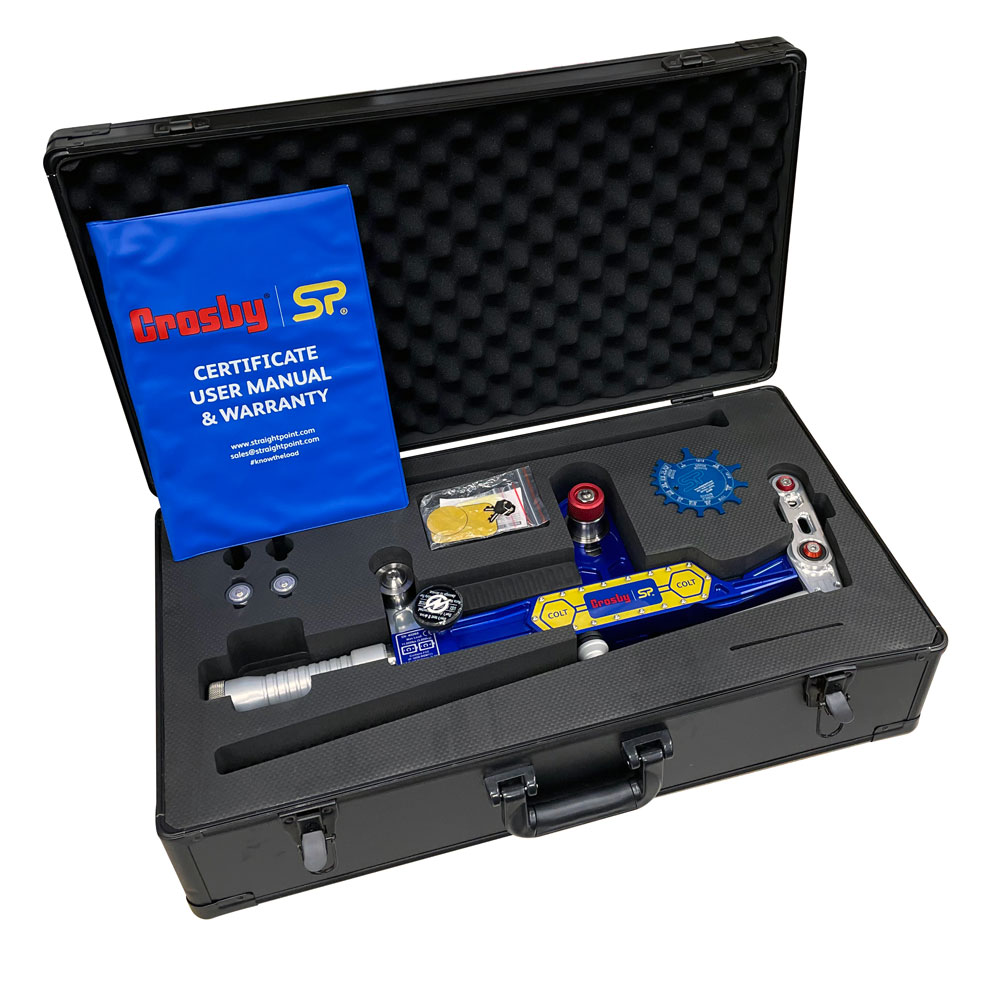

| Standard Accessories | Proof test certificate, operation manual, carrying/storage case |
| Shipping Size | 27 x 21 x 12 inches / 69 x 54 x 31 cm |
| Shipping Weight | 31 Lbs / 14 Kg |
