TI-MINIMAX Bolt Tension Meter / Extensometer

Made in USA

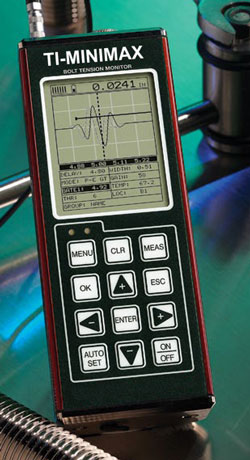

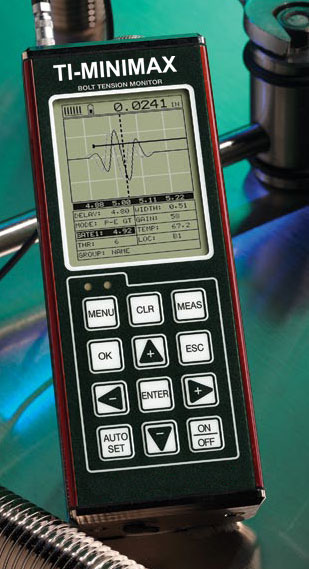

bolt tension monitor TI-MINIMAX
Click images to enlarge.

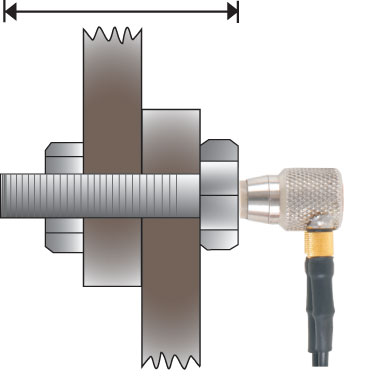

Bolt Tension MeasuringThe MINIMAX Ultrasonic Bolt Tension Monitor, is a state of the art instrument designed to measure elongation produced by tightening a threaded fastener. The MINIMAX can accurately measure the elongation of fasteners of virtually any material from 1/2 inch to 10 feet in length. The measurement is achieved by determining the change in the transit time of an ultrasonic shock wave along the length of the fastener as the fastener is tightened. The on-board microcomputer automatically interprets this time measurement to display the time(nanoseconds), elongation, load, stress, or %strain from stretching a fastener.

Also known as Z-156-0006, Z-156-0002.

Features

  • The first cost effective ultrasonic solution available on the market.
  • Visually compare the unloaded to the loaded waveform.
  • Display Options - RF, Rectified, Large Digits with Limits Bar.

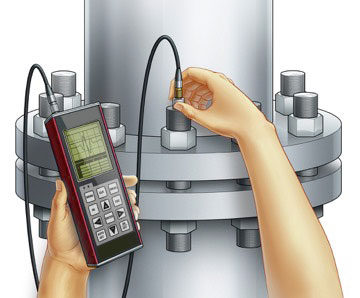

  • Effectively monitor your bolts during periodic shutdowns over the service life of the fastener.
  • Measurement quanities - Time (nanoseconds), Elongation, Load, Stress, and %Strain.
  • Display Resolution - 1/8" VGA 240 x 160 pixels.
  • Stores 8000 readings and waveforms in multiple groups.
  • Built-in Linear regression or vector for optimizing load measurements.
  • The Auto Set feature automatically optimizes detection and adjusts display.
  • Hi/Lo alarm tolerance limits work in conjunction with the data port and external pump shut-off device.
  • IP 65 Rated

Related Products

Dakota MAX-II Ultrasonic Bolt Tension Monitor
Click image for more info
Ultrasonic Bolt Tension Monitor - Extensometer
Click image for more info
Software for Thickness Gauges

Specifications

Measuring RangeFrom 1" to 48" (25.4mm to 122cm) bolts
TimeNanoseconds
ElongationChange in length (inches/millimeters)
LoadForce load applied (pounds kIP or kN Killonewtons)
StressForce for unit area stress applied (pounds kPSI or megapascals MPa)
Strain %percentage strain applied (inches per inch or millimeters per millimeter)
Resolution+/- .00001 inches (0.0001 mm)
Velocity Range.0492 to .3936 in/ms
1250 to 9999 meters/sec
CalibrationFixed, Single, and Two point zero calibration options.

Select bolt material types from a preset or custom list.

UnitsEnglish & Metric / Fahrenheit & Centigrade
Measuring ModesPulse-Echo (standard)
Pulse-Echo w/Gate (fine adjust)
PulserSquare wave pulser with adjustable pulse width (spike, thin, wide)
ReceiverManual or Auto Set gain control with 40dB range
Timing10 bit 250 MHz digitizer
Display ModesA-Scan - Rectified +/- (half wave view), or RF (full waveform view)
Alarm LimitsSet hi and lo tolerances with audible beeper, viewable scan bar, and visual LEDs
Data Logger (Internal)Total of 8,000 readings, multiple bolt groups. Stores both waveform views, nanoseconds, elongation, load, stress, and strain for each reading
Memory4gb
TransducerSingle Element (1 to 10 MHz & 1/8" to 1" diameters)
Transducer Cable Length10 foot (custom lengths available, inquire)
Temperature Probefor automatic temperature compensation
Setup Memory64 custom user defined setups. Factory setups can also be edited by the user
GateGate used to fine adjust where the detection point occurs
Auto SetLocates the detection signal, optimizes the gain setting, and adjusts the overall display to show the waveform and detection point automatically
Field CalibrationVector & linear regression. Includes Factory calibration traceable to national standards
PowerThree 1.5V alkaline or 1.2V NiCad AA cells.

Typically operates for 150 hours on alkaline and 100 hours on NiCad (charger not included.)

DimensionsWidth (2.5in/63.5 mm)
Height (6.5 in/165 mm)
Depth (1.24 in/31.5 mm)
Weight13.5 ounces (with batteries)
Operating Temperature14 to 140F (-10C to 60C)

Complete Kit

The TI-MINIMAX-C v2 is supplied with 3 AA Batteries, 4 oz. Bottle of Couplant, USB Type A to Type C Transfer Cable, Carrying Case, 10’ Lemo to Microdot Transducer cable, PC Utility Software (download from website), Operation Manual and Certification.

Probes/Transducers and Calibration blocks are sold separately

Downloads

Buy Now

Item Description Price
Bolt Tension Meter (requires probes, sold separately) Z-156-0006 / Z-182-0002
$4,050.00
Accessories
T-700-4405
0.125", 10 Mhz, Top-in, Microdot Magnetic Single Element Contact Transducer
$790.00
T-700-2405
0.125", 5 Mhz, Top-in, Microdot Magnetic Single Element Contact Transducer
$770.00
T-702-1405
0.250", 2.25 Mhz, Top-in, Microdot Magnetic Single Element Contact Transducer
$790.00
T-702-2405
0.250", 5 Mhz, Top-in, Microdot Magnetic Single Element Contact Transducer
$790.00
T-704-2405
0.5", 5 Mhz, Top-in, Microdot Magnetic Single Element Contact Transducer
$810.00
T-704-1405
0.5", 2.25 Mhz, Top-in, Microdot Magnetic Single Element Contact Transducer
$810.00
T-5043-1855
0.5", 2.25 Mhz, Top-in, Microdot Non-Magnetic Single Element Contact Transducer
$360.00
T-702-4405
0.250", 10 Mhz, Top-in, Microdot Magnetic Single Element Contact Transducer
$810.00
T-703-2405
0.375", 5 Mhz, Top-in, Microdot Magnetic Single Element Contact Transducer
$800.00
T-706-1405
0.75", 2.25 Mhz, Top-in, Microdot Magnetic Single Element Contact Transducer
$865.00
T-706-2405
0.75", 5 Mhz, Top-in, Microdot Magnetic Single Element Contact Transducer
$865.00
T-602-1405
1/4" 2.25 MHz Non-magnetic transducer
$300.00
FCR2510
1/4" 10 Mhz Single Element Contact Transducer
$285.00
X-000-0011
3" Steel Calibration Bar
$345.00
X-000-0010
3" & 6" Steel Calibration bars - Nickel-Plated Steel
$600.00
A-156-8001
Magnetic Temperature Sensor for temp compensation
$560.00
CF4-MAX
4oz Coupling Fluid for Bolting Gauges - V-000-0005
$25.00
Protective Holder for Long Body UT Gauges, F-149-0001
$85.00
Protective Rubber Boot for Tall Format Ultrasonic Thickness Gauges
$110.00
BATT-RC4AA-WC
4-pack AA Ni-MH Rechargeable Batteries & Charger Kit
$35.00
T-4023-2805
FCR-2550 Single element contact transducer, 1/4" 5 MHz, for TI-PVX, without cable
$345.00
N-110-0020
10' Single Lemo to Microdot Cable
$85.00
